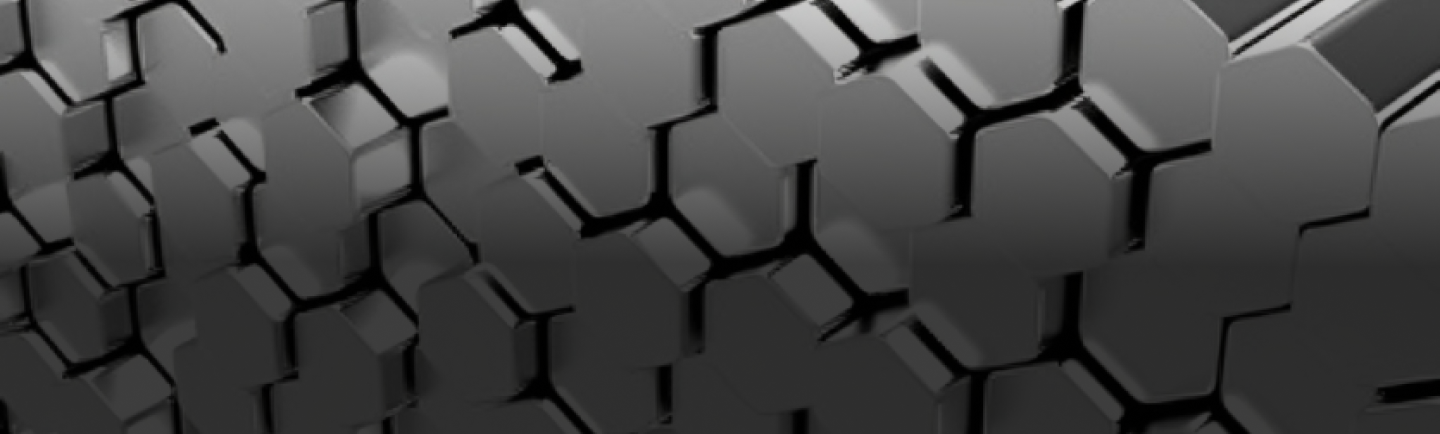

304 / 304L Stainless Steel Hex Bar
Stellanox Steel offers precision-engineered 304 / 304L Stainless Steel Hex Bars, known for their superior corrosion resistance, strength, and excellent machinability. These six-sided bars are ideal for high-precision components, fasteners, fittings, and structural elements used in food processing, chemical, marine, and architectural applications.
304 / 304L hex bars provide both strength and versatility, making them one of the most widely used stainless steel products in the market.
What is 304 / 304L Stainless Steel Hex Bar?
304 / 304L Stainless Steel Hex Bar is a cold-drawn or hot-rolled hexagonal bar made from austenitic stainless steel containing 18–20% chromium and 8–12% nickel. The lower carbon content in 304L minimizes carbide precipitation, enhancing weldability and resistance to intergranular corrosion.
Hex bars are especially useful in CNC machining, valve manufacturing, and bolt production, where exact dimensions and surface finish matter.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 304 / 304L Stainless Steel Hex Bar
- Corrosion Resistant: Performs well in acidic, moist, and atmospheric conditions.
- Weldable and Machinable: Excellent for fabrication and manufacturing.
- Non-Magnetic (Annealed): Becomes slightly magnetic after cold working.
- Aesthetic and Sanitary: Used in decorative, medical, and hygienic systems.
- Dimensional Accuracy: Hexagonal shape allows precise torque application in fasteners.
- Versatile Applications: Suitable across multiple industries.
Specification Chart – 304 / 304L Stainless Steel Hex Bar
| Property | Details |
|---|---|
| Grade | 304 / 304L (UNS S30400 / S30403) |
| Standards | ASTM A276, ASTM A479, EN 10088-3 |
| Size Range (Across Flats) | 6 mm – 75 mm |
| Length | Up to 6 meters or custom cut |
| Finish | Cold Drawn, Polished, Bright, Black |
| Tolerances | h11, h12 (as required) |
Chemical Composition – 304 / 304L Stainless Steel Hex Bar
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 12.0 |
| Carbon (C) | ≤ 0.08 (304), ≤ 0.03 (304L) |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 304 / 304L Stainless Steel Hex Bar
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HRB) | ≤ 95 (Annealed) |
| Density | 8.00 g/cm³ |
Equivalent Grades – 304 / 304L Stainless Steel Hex Bar
| Standard | Grade |
|---|---|
| ASTM | 304 / 304L |
| EN | 1.4301 / 1.4307 |
| JIS | SUS 304 / SUS 304L |
| UNS | S30400 / S30403 |
| DIN | X5CrNi18-10 / X2CrNi18-9 |
Applications of 304 / 304L Stainless Steel Hex Bar
- Fasteners, Bolts, and Nuts
- Food Processing Equipment
- Valve Components and Flanges
- Architectural Fixtures and Frames
- CNC-Machined Parts
- Marine and Coastal Structures
Benefits of 304 / 304L Stainless Steel Hex Bar
- Corrosion-resistant and non-staining
- Ideal for precision machining and turning
- Low-maintenance and hygienic
- Weldable and bendable without cracking
- Economical stainless choice for general use
- High strength with good elongation
