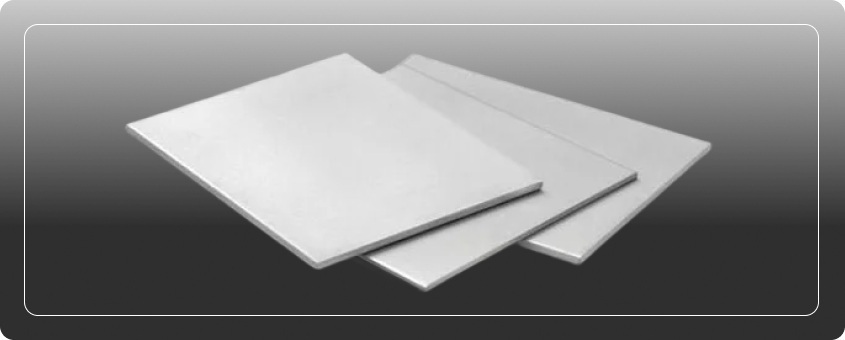

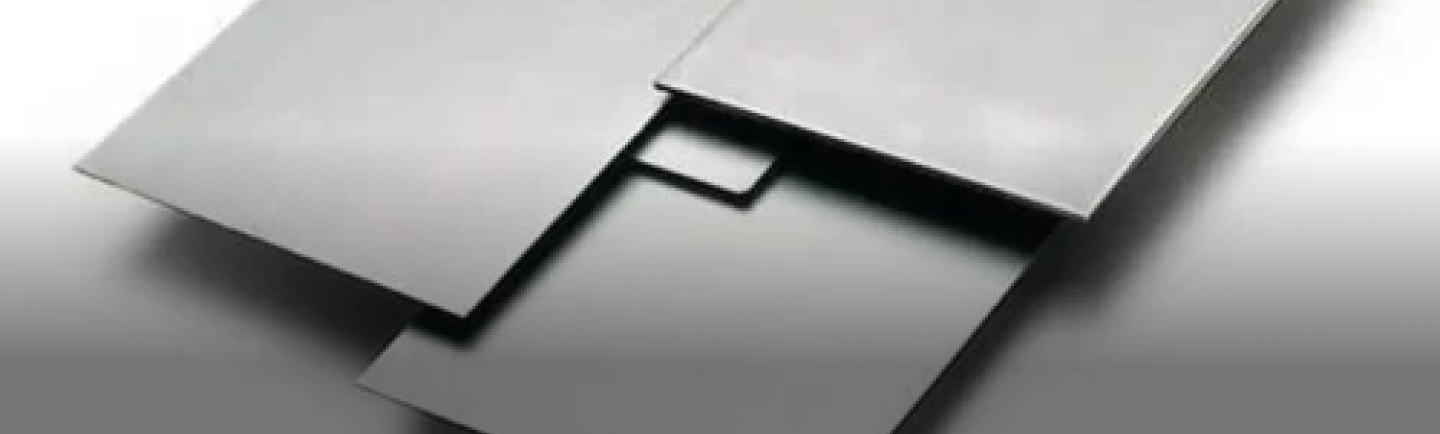

Monel Sheet
Stellanox Steel is a trusted supplier of premium-grade Monel Sheets manufactured to withstand marine, chemical, and high-temperature environments. Engineered from corrosion-resistant nickel-copper alloys like Monel 400 and Monel K500, our sheets deliver superior performance in seawater, acids, alkalis, and salt-laden atmospheres.
Available in a variety of finishes, thicknesses, and dimensions, Monel sheets are widely used in heat exchangers, marine fabrication, chemical storage, and oil & gas systems.
What are Monel Sheets?
Monel Sheets are flat-rolled products made from nickel-copper alloys known for their excellent mechanical strength, corrosion resistance, and workability. Unlike stainless steels, Monel maintains structural integrity even in acidic and saline environments, making it ideal for components that face continuous exposure to moisture, heat, and corrosive chemicals.
Monel 400 is the most common grade used in sheet form due to its versatile corrosion resistance and mechanical durability.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
- Superior Resistance to Seawater, Hydrofluoric & Sulfuric Acids
- Non-Magnetic in Annealed State
- Good Weldability and Cold Working Characteristics
- Stable in Cryogenic and Elevated Temperatures
- Durable and Long-Lasting in Harsh Environments
- Available in Various Surface Finishes (2B, No. 1, Bright Annealed)
Grades
- Monel 400 Sheet
- Monel K500 Sheet
Specification
| Property | Details |
|---|---|
| Product | Monel Sheet |
| Grades Available | Monel 400, Monel K500 |
| Manufacturing Standards | ASTM B127 (400), AMS 4544 (K500), ASME SB127 |
| Thickness Range | 0.5 mm to 10 mm |
| Width Range | Up to 1500 mm |
| Length Range | 1000 mm to 6000 mm (custom sizes available) |
| Surface Finish | 2B, No. 1, Pickled, Brushed, Polished, Bright Annealed |
| Condition | Annealed, Cold Rolled, Hardened |
| Testing & Certification | EN 10204 3.1/3.2, PMI, Ultrasonic, IGC, NACE MR0175, Third-party approved |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | ≥ 63.0 |
| Copper (Cu) | 28.0 – 34.0 |
| Iron (Fe) | 2.0 – 2.5 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 0.50 |
| Carbon (C) | ≤ 0.30 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 550 MPa |
| Yield Strength | ≥ 170 MPa |
| Elongation | ≥ 35% |
| Hardness | ≤ 65 HRB |
| Density | ~8.80 g/cm³ |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | B127 |
| UNS | N04400 |
| DIN / EN | 2.4360 |
| ISO | NiCu30Fe |
Weight
| Thickness (mm) | Weight per m² (kg) | Weight per 2 m² (kg) | Weight per ft² (kg) |
|---|---|---|---|
| 0.5 | 4.40 | 8.80 | 0.41 |
| 1.0 | 8.80 | 17.60 | 0.82 |
| 1.5 | 13.20 | 26.40 | 1.23 |
| 2.0 | 17.60 | 35.20 | 1.63 |
| 2.5 | 22.00 | 44.00 | 2.04 |
| 3.0 | 26.40 | 52.80 | 2.45 |
| 4.0 | 35.20 | 70.40 | 3.27 |
| 5.0 | 44.00 | 88.00 | 4.09 |
| 6.0 | 52.80 | 105.60 | 4.91 |
Applications
- Marine Engineering: Boat hulls, seawater tanks, splash zone paneling
- Chemical Processing: Reactor linings, acid storage tanks, ductwork
- Oil & Gas Industry: De-ethanizer trays, riser panels, pressure vessels
- Power Plants: Heat exchanger sheets, condenser baffles, gas scrubber internals
- Aerospace & Defense: Hydraulic systems, exhaust baffles, structural linings
- Pulp & Paper: Bleach plant components, caustic solution tanks
Benefits
- Outstanding Resistance to Chlorides, Acids, Alkalis, and Salts
- Maintains Performance in High-Temperature and Cryogenic Systems
- Non-Magnetic and Electrically Conductive
- Long-Term Reliability with Minimal Maintenance
- Versatile Formability for Fabrication and Welding
- Globally Certified for Use in Critical Industries
