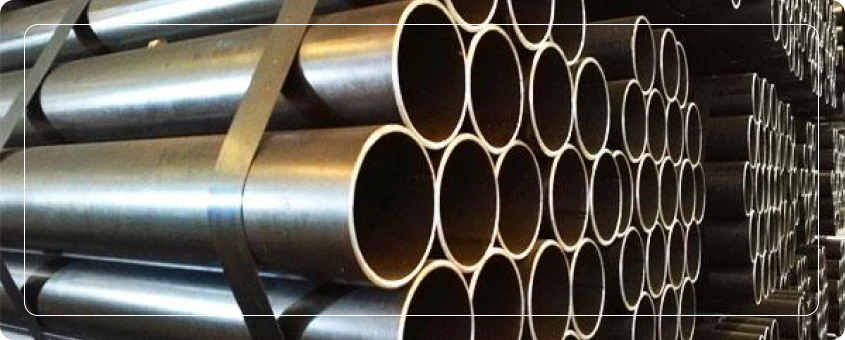

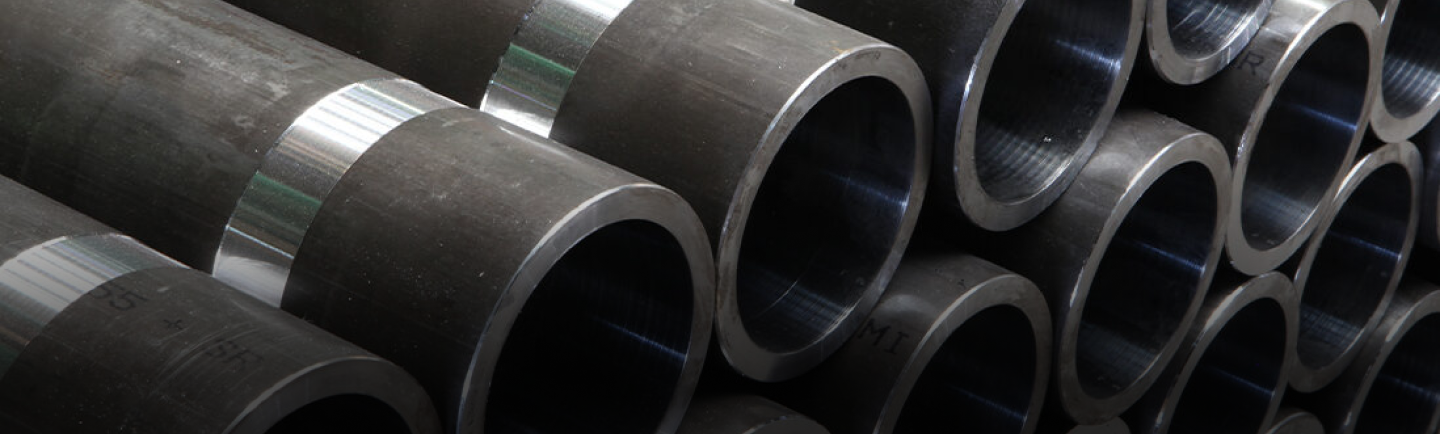

Carbon Steel Tube
Stellanox Steel manufactures and supplies a high-quality range of Carbon Steel Tubes that combine strength, durability, and cost-effectiveness for diverse industrial applications. Our tubes are produced using advanced seamless and welded manufacturing technologies, ensuring superior mechanical properties, dimensional accuracy, and reliability.
Available in various grades, sizes, and thicknesses, our carbon steel tubes serve industries like construction, automotive, energy, oil & gas, heavy engineering, and general fabrication projects around the world.
What are Carbon Steel Tubes?
Carbon Steel Tubes are hollow, cylindrical steel products manufactured using carbon-rich steel alloys. Depending on the production method, tubes are categorized as seamless or welded.
Seamless carbon steel tubes are preferred for high-pressure and high-temperature applications due to their strength and uniform structure, while welded tubes offer cost advantages for general structural uses.
Carbon steel tubes provide a perfect balance between affordability, machinability, and mechanical strength, making them an essential material for fluid transport, mechanical systems, and structural supports.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Carbon Steel Tubes
- High Strength and Impact Resistance: Suitable for load-bearing and high-stress applications.
- Excellent Weldability: Easy to join with standard welding techniques.
- Superior Dimensional Accuracy: Critical for precision mechanical and structural applications.
- Cost-Effective Material: Offers strong performance at a lower cost compared to alloy tubes.
- Available in Seamless and Welded Forms: Based on project specifications and budget.
- Wide Size and Wall Thickness Range: Tailored to meet industrial requirements.
Grade of Carbon Steel Tube
Specification Chart – Carbon Steel Tube
| Property | Details |
|---|---|
|
Product |
Carbon Steel Tube |
|
Manufacturing Standards |
ASTM A513, ASTM A500, ASTM A106, EN 10210, EN 10219, JIS G3444 |
|
Available Grades |
A500 Gr A/B/C, A106 Gr B, ST37, ST52, S355J2H, S275J2H |
|
Tube Types |
Seamless, ERW (Electric Resistance Welded), HFW, CDW (Cold Drawn Welded) |
|
Outer Diameter Range |
10 mm to 610 mm |
|
Wall Thickness Range |
1.0 mm to 50 mm |
|
Length Range |
3 meters, 6 meters, 12 meters (custom cuts available) |
|
End Finish |
Plain End (PE), Beveled End (BE), Threaded End (TE) |
|
Surface Finish Options |
Black (as rolled), Pickled & Oiled (P&O), Galvanized (optional) |
|
Testing and Certifications |
Mill Test Certificates (MTC), Third-Party Inspection (TPI) |
Chemical Composition Chart – Carbon Steel Tube (Example: ASTM A106 Gr B)
| Element | Symbol | Composition (%) |
|---|---|---|
|
Carbon |
C |
0.30 max |
|
Manganese |
Mn |
0.29 – 1.06 |
|
Phosphorus |
P |
≤ 0.035 |
|
Sulfur |
S |
≤ 0.035 |
|
Silicon |
Si |
0.10 – 0.35 |
|
Iron |
Fe |
Balance |
Mechanical Properties Chart – Carbon Steel Tube (Example: ASTM A106 Gr B)
| Property | Value |
|---|---|
|
Tensile Strength (MPa) |
415 min
|
|
Yield Strength (MPa)
|
240 min |
|
Elongation (%) (in 50 mm) |
20 min |
|
Hardness (Brinell HB) |
119 – 180 |
|
Impact Resistance |
Excellent at sub-zero temperatures (when normalized) |
Equivalent Grades Chart - Carbon Steel Tube
| Standard | Equivalent Grade |
|---|---|
|
ASTM
|
A106 Gr B, A500 Gr B/C |
|
EN |
S355J2H, S275J2H |
|
DIN |
ST52-3, ST37-2
|
|
JIS |
G3444 STK400, STK490 |
|
ISO |
ISO 3183 Grade L245 / L290 |
Carbon Steel Tube Weight Chart
| Outer Diameter (mm) | Wall Thickness (mm) | Weight per Meter (kg) | Weight per 3 m / 6 m (kg) |
|---|---|---|---|
|
10 |
1.0
|
0.22 |
0.66 / 1.32 |
|
12 |
1.0 |
0.27 |
0.81 / 1.62 |
|
15 |
1.2 |
0.41 |
1.23 / 2.46 |
|
20 |
1.5 |
0.70 |
2.10 / 4.20 |
|
25 |
2.0 |
2.0 |
3.39 / 6.78 |
|
30 |
2.0 |
1.48 |
4.44 / 8.88 |
|
38 |
2.5 |
2.28 |
6.84 / 13.68 |
|
50 |
3.0 |
3.46 |
10.38 / 20.76 |
|
63.5 |
3.0 |
4.57 |
13.71 / 27.42 |
|
76.2 |
3.5 |
6.76 |
20.28 / 40.56 |
|
89 |
4.0 |
8.34 |
25.02 / 50.04 |
|
101.6 |
4.0 |
10.36 |
31.08 / 62.16 |
|
114.3 |
4.5 |
12.15 |
36.45 / 72.90 |
|
141.3 |
5.0 |
17.00 |
51.00 / 102.00 |
|
150 |
5.0 |
18.00 |
54.00 / 108.00 |
Applications of Carbon Steel Tubes
Benefits of Carbon Steel Tubes
- Superior Strength and Pressure Resistance: Handles demanding operational loads.
- Wide Availability of Sizes and Grades: Flexibility for diverse project needs.
- Excellent Fabrication Characteristics: Easy to cut, weld, and install.
- Cost-Effective Performance: High performance at a reasonable material cost.
- Highly Durable and Long-Lasting: Resists mechanical stress and corrosion (when treated).
- Environmentally Friendly: Fully recyclable, supporting green manufacturing practices.
