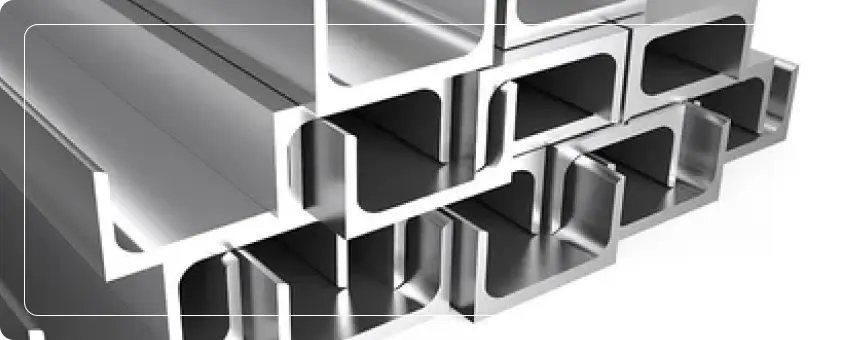

Channels
In the construction, equipment, automotive, utility, and infrastructure industries, Stellanox provides channels that are designed for strength, stability, and multipurpose application. Our channels, which come in a variety of widths, thicknesses, and profiles, provide reliable performance in load-supporting and structural applications.
We provide standard Hat Sections, U Channels, and C Channels that meet ANSI, DIN, BS, ASTM, and ISO requirements. On request, punched combinations, surface treatments, and custom fabrication are offered.
What are Channels?
Channels are structural elements with a U or C shape that are used to mount mechanical assembly, support loads, and frame constructions. Their profile is particularly helpful in applications where strength and space are crucial since it provides great bending resistance.
Stellanox channels come in slotted holes, uniform or tapered flanges, or as specially made profiles made to fit project-specific specifications.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Channels
- High Flexural Strength & Rigidity
- Available in C, U, and Hat Profiles
- Uniform Thickness for Even Load Distribution
- Surface Finishes to Enhance Longevity
- Compatible with International Structural Codes
- Delivered in Cut-to-Length or Full-Length Options
Grade of Angles
Specification Chart – Channels
| Property | Details |
|---|---|
| Types Available | C Channel, U Channel, Hat Section |
| Sizes | 40 mm to 400 mm Web Width / 1.5” to 16” |
| Thickness Range | 3 mm to 25 mm |
| Lengths | Standard up to 12 meters; customizable |
| Surface Finishes | Mill Finish, Galvanized, Painted, Powder-Coated |
| Manufacturing Standards | ASTM A1008, DIN 1026, ISO 657, BS 4-1, ANSI |
| Certifications | ISO 9001, CE, EN 10204 3.1/3.2, Project-Specific Docs |
Types of Channels – Comparative Overview
| Type | Description | Common Uses |
|---|---|---|
| C Channel | Traditional U-shaped profile with parallel flanges. | Framing, floor systems, bridges, general support |
| U Channel | Similar to C Channel but with tighter flange radius or different dimensions. | Automotive rails, window frames, support brackets |
| Hat Channel | Profile with an additional center flange resembling a "hat" shape. | Ceilings, cladding support, electrical panels |
| Slotted Channel | Pre-punched holes along length for flexible assembly. | Racks, cable trays, piping supports |
Weight Chart – Equal Channels
| Size (mm) | Thickness (mm) | Weight per Meter (kg/m) | Section Modulus (cm³) |
|---|---|---|---|
| 75 x 40 | 5.0 | 5.92 | 8.9 |
| 100 x 50 | 6.0 | 8.72 | 14.5 |
| 150 x 75 | 6.0 | 13.80 | 30.6 |
| 200 x 75 | 7.5 | 17.90 | 47.3 |
| 250 x 80 | 9.0 | 25.20 | 79.2 |
| 300 x 90 | 10.0 | 32.50 | 118.3 |
| 400 x 100 | 12.0 | 50.90 | 221.7 |
Applications of Channels
- Structural Columns & Frames
- Equipment Mounts & Enclosures
- Construction of Purlins, Rafters, and Wall Studs
- Cable Trays & Electrical Raceways
- Shelving & Storage Frames
- Chassis and Component Supports
Benefits of Channels
- Space-Efficient with High Load Capability
- Suitable for Bending, Cutting, Drilling, and Welding
- Uniform Shape for Consistent Structural Behavior
- Protective Coating Options for Extended Life
- Ideal for Prefabrication & Modular Construction
- Delivered With Dimensional & Load Certifications
