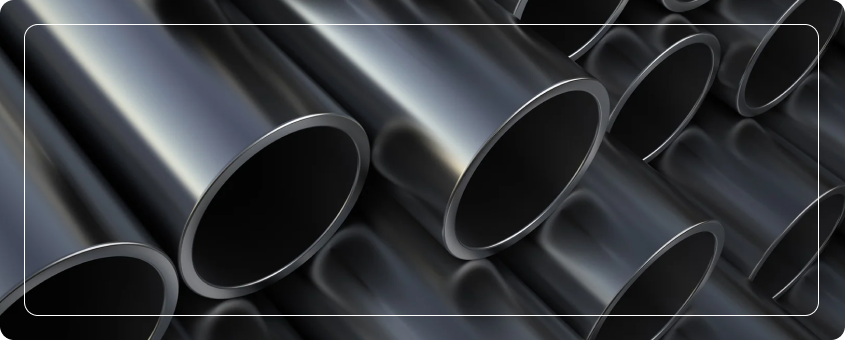

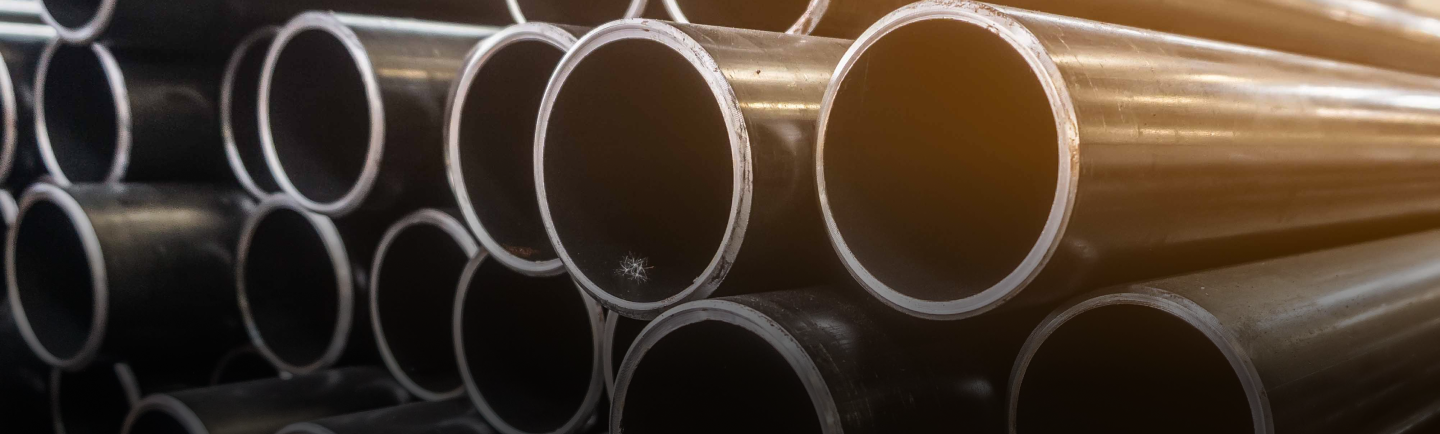

Carbon Steel Pipe

At Stellanox Steel, we offer a wide range of Carbon Steel Pipes manufactured to the highest industry standards. Our pipes are known for their exceptional strength, toughness, and durability, making them ideal for fluid transport, structural applications, and high-pressure systems across a variety of industries.

Whether seamless, welded, ERW, or fabricated, Stellanox Steel’s carbon steel pipes deliver outstanding performance in oil & gas, construction, power plants, shipbuilding, and heavy machinery sectors worldwide.

What are Carbon Steel Pipes?

Carbon Steel Pipes are tubular sections made from carbon-rich steel alloys, engineered to deliver superior mechanical strength, toughness, and temperature resistance.

They are primarily used to transport liquids, gases, and solids under pressure and temperature variations. Based on production techniques, carbon steel pipes can be seamless (for high-pressure, high-temperature applications) or welded (for general-purpose and low-pressure applications).

Their cost-effectiveness, strength, and versatility make carbon steel pipes the backbone of modern infrastructure and industrial systems.

Products
Stainless Steel
Carbon Steel
Duplex Stainless Steel
Super Duplex Stainless Steel
Alloy Steel
Titanium
Hastelloy
Inconel
Monel
Aluminium
Copper
Pure Nickel
Flanges
Forged Fittings
Valves
Fasteners

Key Features of Carbon Steel Pipes

Exceptional Strength and Toughness: Capable of withstanding high pressures and mechanical stress.
Excellent Weldability and Fabrication Properties: Easily joined and installed.
High Temperature and Pressure Resistance: Suitable for critical applications like boiler piping and oil pipelines.
Wide Availability: Available in seamless, ERW, HFW, LSAW, and SSAW forms.
Economical Material Solution: Provides reliable performance at lower costs compared to alloys or stainless steel.
Customizable Sizes and Thicknesses: Wide range to meet diverse project demands.

Specification Chart – Carbon Steel Pipe

Property	Details
Product	Carbon Steel Pipe
Manufacturing Standards	ASTM A106, ASTM A53, API 5L, ASTM A333, EN 10216, EN 10217
Available Grades	A106 Gr B/C, A53 Gr A/B, API 5L Gr B/X42/X52/X60/X65, S275J0H, S355J2H
Pipe Types	Seamless, ERW, HFW, LSAW, SSAW
Outer Diameter Range	1/8″ NB to 48″ NB (10.3 mm to 1219 mm)
Wall Thickness Range	SCH 5, SCH 10, SCH 40, SCH 80, SCH 160, SCH XXS
Length Options	Single Random, Double Random, Fixed Length (up to 12 meters)
End Finish	Plain End (PE), Beveled End (BE), Threaded End (TE)
Surface Finish	Black Painted, Bare, Pickled & Oiled (P&O), Galvanized
Testing and Certification	Hydrostatic Test, Eddy Current Test, Ultrasonic Test, MTC EN 10204 3.1/3.2

Chemical Composition Chart – Carbon Steel Pipe (Example: ASTM A106 Gr B)

Element	Symbol	Composition (%)
Carbon	C	0.30 max
Manganese	Mn	0.29 – 1.06
Phosphorus	P	≤ 0.035
Sulfur	S	≤ 0.035
Silicon	Si	0.10 – 0.35
Iron	Fe	Balance

Mechanical Properties Chart – Carbon Steel Pipe (Example: ASTM A106 Gr B)

Property	Value
Tensile Strength (MPa)	415 min
Yield Strength (MPa)	240 min
Elongation (%) (in 50 mm)	20 min
Hardness (Brinell HB)	119 – 180
Impact Resistance (Charpy V-notch)	High

Equivalent Grades Chart – Carbon Steel Pipe

Standard	Equivalent Grade
ASTM	A106 Gr B/C, A53 Gr A/B
API	5L Gr B, X42, X52, X60, X65
EN	S275J0H, S355J2H
DIN	ST37, ST44, ST52
JIS	STPG370, STPG410

Carbon Steel Pipe Weight Chart

Size (inches)	OD (mm)	Wall Thickness (mm)	Weight per Meter (kg)
1″	33.4	3.38	2.44
1.5″	48.3	3.68	4.33
2″	60.3	3.91	5.94
3″	88.9	5.49	11.24
4″	114.3	6.02	16.95
6″	168.3	7.11	31.68

Applications of Carbon Steel Pipes

Carbon Steel Pipes from Stellanox Steel are extensively used in:

Oil And Gas Industry

Marine Industry

Building And Structural Steel

Power and Energy

Aerospace

Defence

Benefits of Carbon Steel Pipes

Outstanding Pressure Handling Capability: Suitable for critical operations in oil refineries and power plants.
High Temperature Tolerance: Performs reliably in boiler, heat exchanger, and furnace applications.
Cost-Efficient: Economical compared to stainless steel and alloy pipes.
Customizable Dimensions: Available in multiple diameters, thicknesses, and lengths.
Easy Fabrication and Welding: Can be quickly installed or modified on-site.
Eco-Friendly: Recyclable steel material, reducing environmental impact.

Frequently Asked Questions

Explore our FAQs for insights on materials, customization, and delivery.

What is the primary difference between seamless and welded carbon steel pipes?

Seamless pipes have no weld seam and are preferred for high-pressure and high-temperature applications, whereas welded pipes are generally more economical and used in lower-pressure applications.

Which grades are suitable for oil and gas pipelines?

API 5L grades such as B, X42, X52, X60, and X65 are specifically designed for oil and gas pipeline applications.

Are carbon steel pipes rust-proof?

Standard carbon steel pipes can rust when exposed to moisture; however, surface treatments like galvanizing or coatings can significantly enhance corrosion resistance.

Can carbon steel pipes be customized in terms of end finishes?

Yes. We offer Plain End (PE), Beveled End (BE), and Threaded End (TE) to match different joining requirements.
