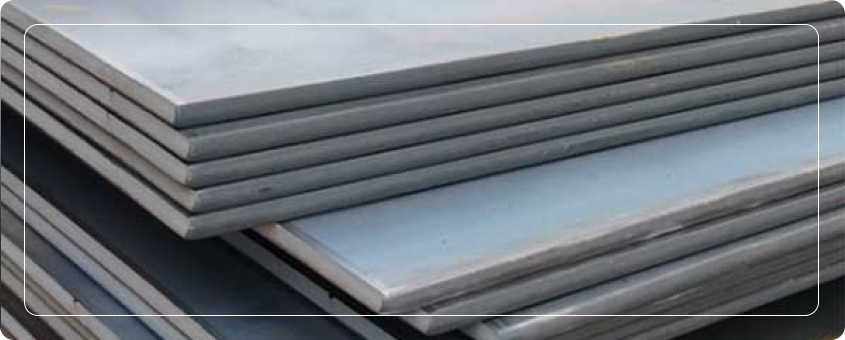

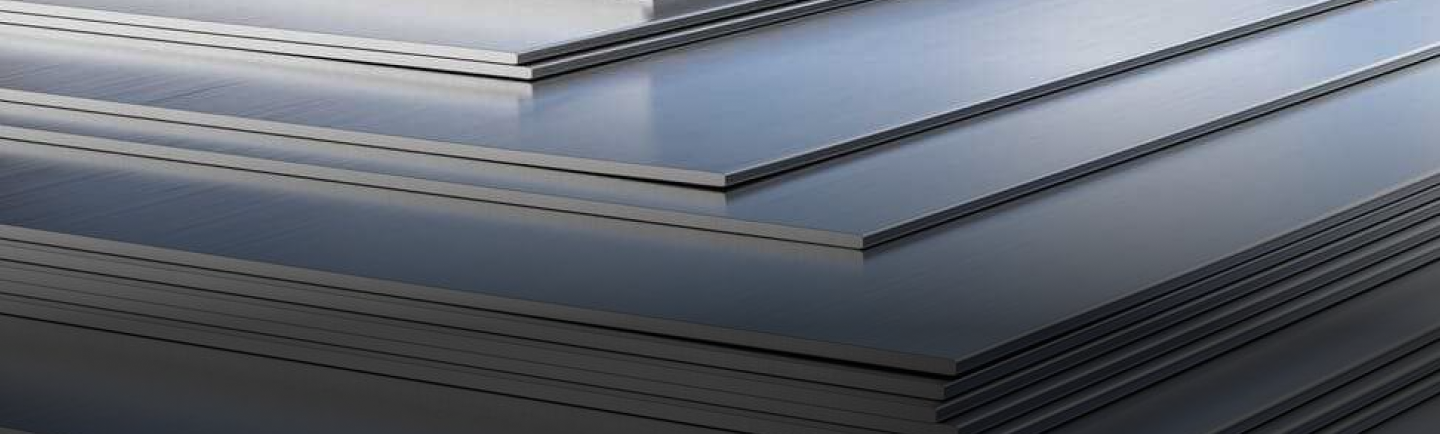

Carbon Steel Sheet
At Stellanox Steel, we manufacture and supply Carbon Steel Sheets known for their excellent strength, formability, and versatility. Produced to meet stringent international standards, our carbon steel sheets are widely used across construction, automotive, industrial fabrication, and heavy equipment manufacturing.
Available in a variety of grades, sizes, thicknesses, and surface finishes, Stellanox Steel’s carbon steel sheets offer high performance at a cost-effective price, making them a trusted material for demanding applications.
What are Carbon Steel Sheets?
Carbon Steel Sheets are flat-rolled steel products that feature a higher concentration of carbon compared to standard mild steels. Their carbon content boosts mechanical strength, hardness, and impact resistance, while retaining sufficient formability for easy fabrication.
Manufactured through hot-rolling or cold-rolling processes, carbon steel sheets serve a wide range of industries where durability, cost efficiency, and structural integrity are critical. Their adaptability allows them to be cut, bent, welded, or stamped into various products.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Carbon Steel Sheets
- Enhanced Strength: Designed for structural and mechanical use.
- Excellent Formability and Weldability: Easy to shape, bend, and fabricate.
- Cost-Effective Material Choice: Economical compared to stainless steel and alloys.
- Durable and Impact Resistant: Suitable for heavy-duty and rugged applications.
- Versatile Applications: Available in hot-rolled and cold-rolled forms.
- Wide Range of Finishes: Mill finish, pickled, oiled, or coated for added corrosion resistance.
Specification Chart - Carbon Steel Sheet
| Property | Details |
|---|---|
|
Product |
Carbon Steel Sheet |
|
Manufacturing Standards |
ASTM A1008, ASTM A1011, EN 10130, JIS G3141 |
|
Available Grades |
A36, A569, A1008, A1011 CS Type B, S235JR, S275JR |
|
Thickness Range |
0.5 mm to 10 mm |
|
Width Range |
600 mm to 2000 mm |
|
Length Range |
1000 mm to 6000 mm (or custom cut lengths) |
|
Surface Finish Options |
Hot Rolled (HR), Cold Rolled (CR), Pickled & Oiled (P&O) |
|
Coil Forms Available |
Yes (for cold-rolled and hot-rolled pickled sheets) |
|
Edge Condition |
Mill Edge, Slit Edge |
|
Processing Options |
Laser Cutting, Shearing, CNC Plasma Cutting |
Chemical Composition Chart – Carbon Steel Sheet (Example: ASTM A1008)
| Element | Symbol | Composition (%) | Purpose |
|---|---|---|---|
|
Carbon |
C |
0.10 max |
Provides strength |
|
Manganese |
Mn |
0.30 – 0.50 |
Enhances ductility and toughness |
|
Phosphorus |
P |
≤ 0.04 |
Should be minimal to avoid brittleness |
|
Sulfur |
S |
≤ 0.05 |
Controlled for better weldability |
|
Iron |
Fe |
Balance |
Base metal |
Mechanical Properties Chart – Carbon Steel Sheet (Example: ASTM A1008)
| Property | Value | Importance |
|---|---|---|
|
Tensile Strength (MPa) |
270 – 410 |
Ability to resist breaking under tension |
|
Yield Strength (MPa) |
140 min |
Elastic limit before permanent deformation |
|
Elongation (%) (in 50 mm) |
28 min |
Ability to stretch without fracture |
|
Hardness (Brinell HB) |
Typically 100 – 150 HB |
Resistance to surface indentation |
|
Formability |
Excellent |
Ideal for stamping, drawing, bending |
Equivalent Grades Chart – Carbon Steel Sheet
| Standard | Equivalent Grade | Notes |
|---|---|---|
|
ASTM |
A1008, A1011 |
American standards (cold/hot rolled sheets) |
|
EN |
S235JR, S275JR |
European norms for non-alloy structural steel |
|
JIS |
SPCC (cold rolled) |
Japanese Industrial Standards for sheets |
|
ISO |
FeP01, FeP02 |
ISO standards for cold rolled steel sheets |
Carbon Steel Sheet Weight Chart
| Thickness (mm) | Weight per m² (kg) | Weight per 1.25 × 2.5 m (kg) | Weight per 4' × 8' (kg) |
|---|---|---|---|
|
0.3 |
2.36 |
7.38 |
7.03 |
|
0.5
|
3.93 |
12.28 |
11.68 |
|
0.8 |
6.28 |
19.63 |
18.65 |
|
1.0 |
7.85 |
24.53 |
23.32 |
|
1.5 |
11.78 |
36.81 |
34.99 |
|
2.0 |
15.70 |
49.06 |
46.65 |
|
3.0 |
23.55 |
73.59 |
69.97 |
|
4.0 |
31.40 |
98.13 |
93.30 |
|
5.0 |
39.25 |
122.66 |
116.63 |
Applications of Carbon Steel Sheets
Stellanox Steel’s Carbon Steel Sheets are preferred for:
Oil And Gas Industry
Marine Industry
Building And Structural Steel
Power and Energy
Aerospace
Defence
Benefits of Carbon Steel Sheets
- Cost-Effective Strength: Reliable mechanical performance at affordable prices.
- Wide Fabrication Flexibility: Easy to bend, cut, machine, and weld.
- Sustainability: Recyclable material contributing to green initiatives.
- Adaptable for Coatings and Surface Treatments: Paint, galvanise, powder-coat for enhanced lifespan.
- Available in Different Finishes: Suitable for interior and exterior use.
- Customised Dimensions Available: Save time and material waste on your projects.
Frequently Asked Questions
Explore our FAQs for insights on materials, customization, and delivery.
What is the difference between hot-rolled and cold-rolled carbon steel sheets?
Hot rolled sheets are processed at high temperatures and are rougher but cheaper; cold rolled sheets are smoother, more precise, and often used for aesthetic or precision applications.
Are carbon steel sheets rust-resistant?
Carbon steel sheets, unless coated or galvanised, are prone to rusting when exposed to moisture. Protective coatings are often recommended for outdoor use.
Can you supply carbon steel sheets in customised sizes?
Yes. Stellanox Steel offers cut-to-size services for sheets based on project requirements.
What is a Pickled and Oiled (P&O) finish in carbon steel sheets?
P&O refers to sheets that have been chemically cleaned (“pickled”) to remove mill scale, then lightly oiled to prevent immediate rusting, providing a smoother surface ready for fabrication.
