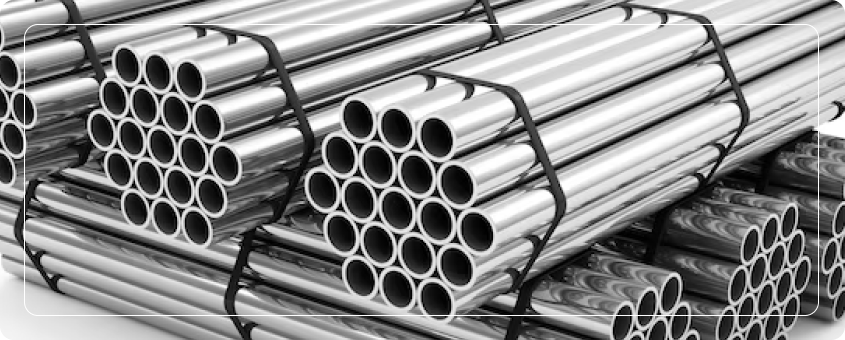

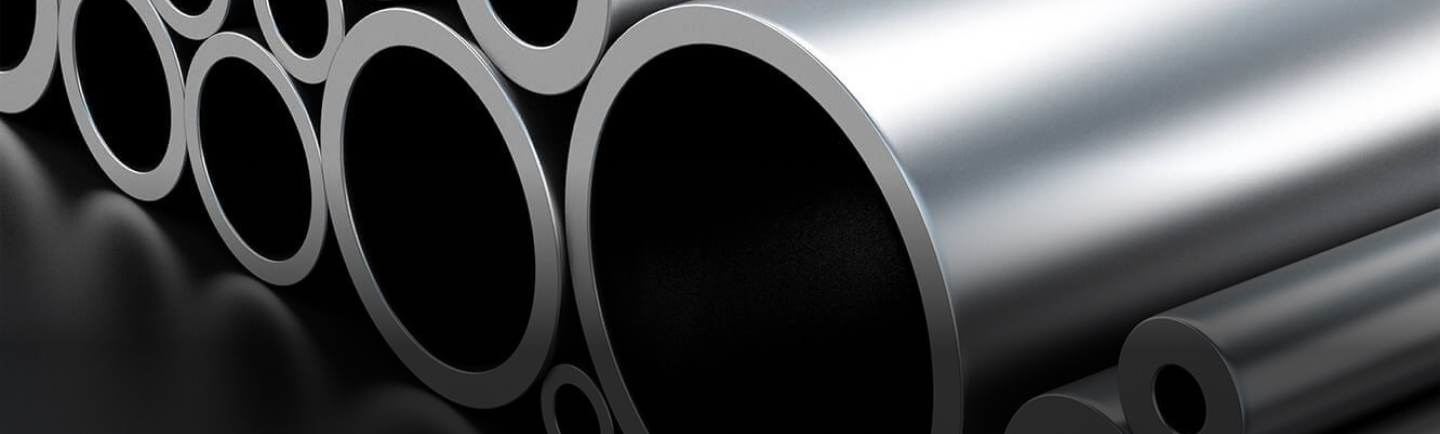

Alloy Steel Tube
Stellanox Steel offers precision-engineered Alloy Steel Tubes, known for their exceptional mechanical strength, high-temperature tolerance, and superior wear resistance. Designed to perform under extreme conditions, our alloy steel tubes are widely used across power generation, automotive, petrochemical, and aerospace industries.
Whether you’re transporting high-pressure fluids, supporting structural frameworks, or integrating heat-resistant tubing in power systems — Stellanox delivers alloy steel tubes you can trust for long-term performance.
What are Alloy Steel Tube?
Alloy Steel Tubes are hollow cylindrical components manufactured using steels alloyed with elements like chromium, molybdenum, nickel, vanadium, and manganese. These alloying elements enhance mechanical properties such as strength, toughness, and resistance to heat and corrosion.
Produced in seamless, welded, and cold-drawn forms, alloy steel tubes are used in high-temperature, high-stress environments where regular carbon steel would fail. Common grades include ASTM A213 T11/T22, ASTM A335 P5/P11/P22, and EN 10216-2 13CrMo4-5.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Alloy Steel Tube
- High Temperature Strength – Ideal for boiler, superheater, and heat exchanger systems
- Excellent Tensile & Yield Strength – Withstands internal pressure in high-stress piping
- Creep & Fatigue Resistance – Reliable in cyclic thermal or mechanical loading
- Good Machinability & Weldability – Suitable for complex fabrication needs
- Corrosion & Oxidation Resistance – Performs in steam, gases, and acidic conditions
- Available in Multiple Grades & Sizes – Customized for structural or pressure needs
Alloy Steel Tube Products
Specification Chart –Alloy Steel Tube
| Property | Details |
|---|---|
| Product | Alloy Steel Tube |
| Common Grades | ASTM A213 T11/T22, ASTM A335 P5/P11/P22, EN 10216-2 |
| Manufacturing Standards | ASTM A213, ASTM A335, EN 10216-2, DIN 17175 |
| Tube Types | Seamless, Cold Drawn Seamless (CDS), Welded |
| Outer Diameter Range | 6 mm to 355 mm (1/4" to 14") |
| Wall Thickness | 1 mm to 20 mm |
| Length Range | 6 m, 12 m, Custom U-Bend/Random |
| Surface Finish | Annealed, Pickled, Polished, Black, Varnished |
| End Types | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Testing/Certifications | Hydro Test, UT, Eddy Current, IGC, EN 10204 3.1/3.2 |
Chemical Composition Chart – Alloy Steel Tube
| Element | Symbol | Composition (%) |
|---|---|---|
| Carbon | C | 0.05 – 0.15 |
| Manganese | Mn | 0.30 – 0.60 |
| Chromium | Cr | 1.90 – 2.60 |
| Molybdenum | Mo | 0.87 – 1.13 |
| Silicon | Si | ≤ 0.50 |
| Phosphorus | P | ≤ 0.025 |
| Sulfur | S | ≤ 0.025 |
| Iron | Fe | Balance |
Mechanical Properties Chart – Alloy Steel Tube
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 415 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 30 |
| Hardness (HBW) | ≤ 179 |
| Operating Temperature | Up to 600°C |
Equivalent Grades Chart – Alloy Steel Tube
| Standard | Equivalent Grade |
|---|---|
| ASTM | A213 T11, T22 |
| ASTM | A335 P5, P11, P22 |
| EN | 13CrMo4-5, 10CrMo910 |
| DIN | 15Mo3, 16Mo3 |
| JIS | STBA 23, STPA 22 |
Alloy Steel Tube Weight Chart (kg/m²)
| OD (mm) | Wall Thickness (mm) | Weight per Meter (kg) | Weight per 6 m (kg) |
|---|---|---|---|
| 12.7 | 1.2 | 0.27 | 1.62 |
| 19.05 | 1.5 | 0.50 | 3.00 |
| 25.4 | 2.0 | 0.95 | 5.70 |
| 38.1 | 2.5 | 1.71 | 10.26 |
| 50.8 | 3.0 | 2.78 | 16.68 |
| 63.5 | 3.5 | 4.25 | 25.50 |
| 76.2 | 4.0 | 6.00 | 36.00 |
Applications of Alloy Steel Tube in Various Industries
Benefits of Alloy Steel Tube
- Withstand Elevated Temperatures – Reliable even under continuous thermal stress
- Superior Strength-to-Weight Ratio – Durable yet cost-effective
- Versatile Across Industries – Meets diverse industrial demands
- Extended Service Life – Reduced frequency of replacement
- Adaptable Manufacturing – Supports welding, cutting, machining, and bending
