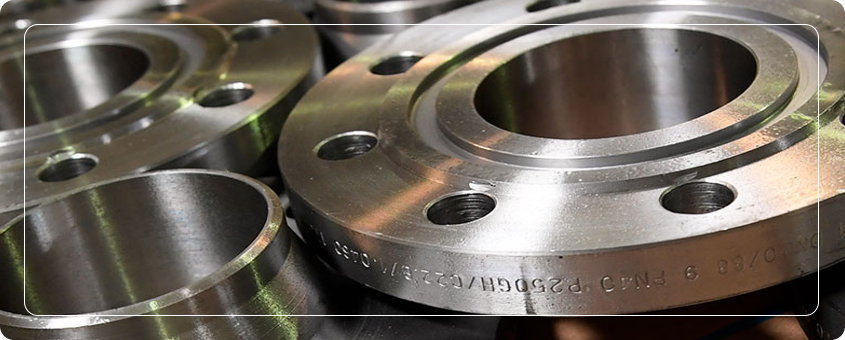

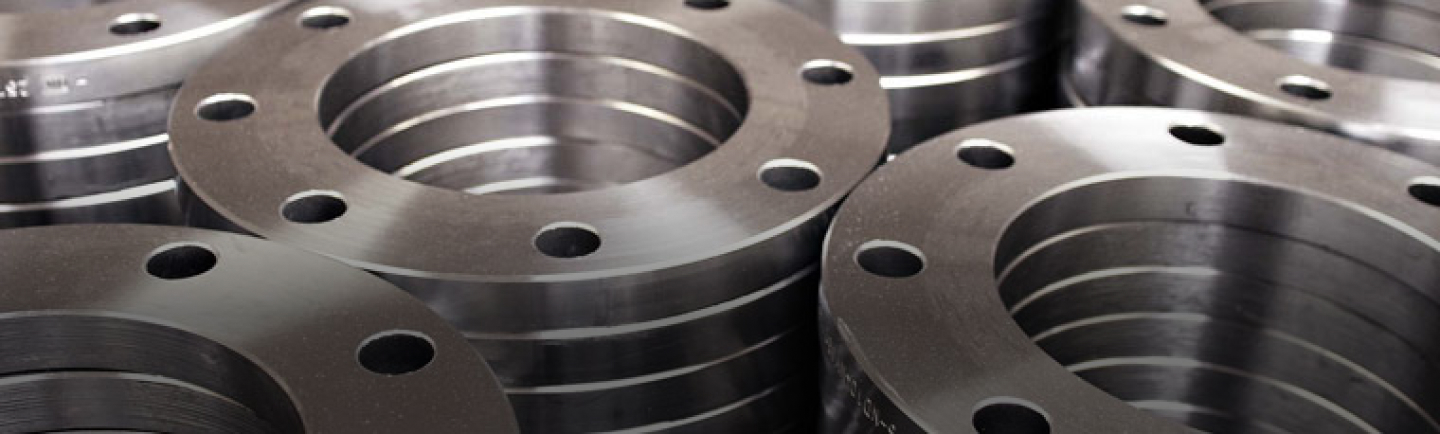

Flanges
Stellanox Steel is a trusted manufacturer and global supplier of high-performance Industrial Flanges crafted from premium materials including Stainless Steel, Alloy Steel, Carbon Steel, Nickel Alloys, Inconel, Monel, Hastelloy, Titanium, and Copper Alloys. Our flanges are designed for leak-proof, high-pressure, and high-temperature piping systems in sectors such as oil & gas, petrochemical, chemical processing, marine, aerospace, energy, and water treatment.
Available in standard and customized designs, our flanges conform to ASME, ANSI, DIN, EN, BS, and ISO standards.
What are Flanges?
Flanges are mechanical components used to connect pipes, valves, pumps, and other equipment to form a piping system. They provide easy access for cleaning, inspection, or modification and are critical for sealing and supporting fluid flow under high pressure or corrosive environments.
Depending on the system’s operating conditions, flanges are selected by material grade, pressure class, face type, and connection type.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Types of Flanges
- Weld Neck Flanges
- Slip-On Flanges
- Blind Flanges
- Socket Weld Flanges
- Lap Joint Flanges
- Threaded Flanges
Key Features
✅ Available in Wide Range of Materials & Grades
✅ Suitable for High-Pressure, High-Temperature Applications
✅ Leak-Proof, Vibration-Resistant Connections
✅ Compliant with ASME, ANSI, DIN, EN, ISO, and BS Standards
✅ Supplied with Test Certificates, PMI Reports & Dimensional Accuracy
✅ Offered in Custom Machined & Standard Sizes
Specification
| Property | Details |
|---|---|
|
Flange Types
|
Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded |
|
Materials |
SS (304, 316), CS (ASTM A105), Alloy Steel (F11, F22), Nickel Alloys |
|
Sizes Available |
½” NB to 60” NB (DN15 – DN1500) |
|
Pressure Ratings |
Class 150, 300, 600, 900, 1500, 2500 |
|
Facing Types |
RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint), Tongue & Groove |
|
Manufacturing Standards |
ASME B16.5, B16.47, EN 1092-1, DIN 2573/2576, ISO, BS |
|
Testing & Certification |
EN 10204 3.1/3.2, Ultrasonic, PMI, Hydrotest, NDT |
Materials and Equivalent Grades
| Material | Equivalent Grades |
|---|---|
|
Stainless Steel |
304, 304L, 316, 316L, 321 |
|
Carbon Steel |
ASTM A105, A350 LF2 |
|
Alloy Steel |
ASTM A182 F11, F22, F91 |
|
Nickel Alloys |
Inconel 600/625, Monel 400 |
|
Copper Alloys |
Bronze, Brass, Cupro Nickel |
|
Titanium |
Grade 2, Grade 5 |
Weight
| Flange Type | Size (inches) | Approx. Weight (kg) | Standard |
|---|---|---|---|
|
Weld Neck Flange |
2″ |
3.80 |
ANSI B16.5 |
|
Slip-On Flange |
2″ |
2.40 |
ANSI B16.5 |
|
Blind Flange |
2″ |
4.50 |
ANSI B16.5 |
|
Socket Weld Flange
|
2″ |
3.10 |
ANSI B16.5 |
|
Lap Joint Flange |
2″ |
2.10 |
ANSI B16.5 |
|
Threaded Flange |
2″ |
2.70 |
ANSI B16.5 |
Applications
Oil & Gas Pipelines: High-pressure joints, offshore platforms
Petrochemical & Refineries: Chemical reactors, distillation columns
Power Generation & Boilers: Steam lines, superheaters, turbines
Water Treatment Plants: Chlorination systems, filtration lines
Marine Systems: Seawater piping, ballast systems
Pharmaceutical & Food Processing: Sanitary and CIP piping networks
Benefits
Precision Machined & Leak-Proof Under Pressure
Resistant to Heat, Corrosion, Stress & Vibration
Supplied in All Standard and Custom Configurations
Full Traceability with Global Certifications
Delivered with On-Time, Cost-Effective Manufacturing
Ready-to-Install Options With Gasket & Bolting Support
