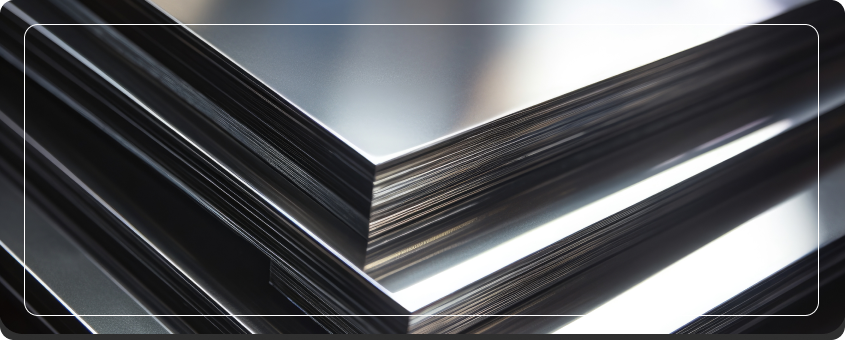

Stainless Steel Sheet
Stellanox Steel is a trusted name for delivering superior quality Stainless Steel Sheets, designed to meet the evolving demands of industries across the globe. Our stainless steel sheets are fabricated from premium-grade raw materials, ensuring unmatched performance, resilience, and aesthetics. Backed by decades of expertise, we cater to a wide range of sectors including construction, automotive, aerospace, energy, and food processing.
Whether you need a corrosion-resistant surface for outdoor structures, a hygienic base for food equipment, or a sleek finish for architectural projects, Stellanox Steel provides stainless steel sheets tailored to your specific needs.
What are Stainless Steel Sheets?
Stainless Steel Sheets are thin, flat steel plates that offer high strength, excellent corrosion resistance, and superior workability. They are manufactured through cold-rolling or hot-rolling processes, with surface finishes ranging from highly polished mirror surfaces to brushed textures, making them versatile across functional and decorative applications.
These sheets are available in various thicknesses, widths, and grades, allowing clients to select the most suitable options for their engineering, structural, and design projects. Thanks to their durability and low maintenance, stainless steel sheets are a preferred material choice for applications requiring longevity and high aesthetic standards.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Stainless Steel Sheets
- Corrosion Resistance: Exceptional resistance to rust, staining, and chemical damage, even in harsh environments.
- Strength and Durability: High tensile and yield strength make it ideal for load-bearing applications.
- Fabrication Friendly: Can be easily welded, cut, bent, and formed without compromising structural integrity.
- Attractive Finishes: Available in a range of finishes like 2B, No.4 brushed, Mirror No.8, and Satin for aesthetic applications.
- Hygienic Properties: Non-porous surfaces make it safe for food processing and medical applications.
- Temperature Resilience: Retains strength at both cryogenic and elevated temperatures.
- Recyclability: 100% recyclable material supporting sustainable manufacturing practices.
Specification Chart
| Property | Specification |
|---|---|
|
Standard |
ASTM A240 / ASME SA240 |
|
Material Grades |
304, 304L, 316, 316L, 321, 347, 410, 430 |
|
Thickness Range |
0.3 mm to 50 mm |
|
Width Range |
600 mm to 2000 mm (custom widths on request) |
|
Length |
2000 mm to 6000 mm (custom cuts available) |
|
Surface Finishes |
2B, BA, No.4, No.8 (Mirror), Satin, Hairline |
|
Tolerances |
As per ASTM, JIS, EN standards |
|
Edges |
Mill Edge, Slit Edge |
|
Manufacturing Process |
Cold Rolled (CR), Hot Rolled (HR) |
Chemical Composition Chart
| Element | Percentage (%) |
|---|---|
|
Carbon (C) |
≤ 0.08 |
|
Chromium (Cr) |
18.00 – 20.00 |
|
Nickel (Ni) |
8.00 – 10.50 |
|
Manganese (Mn) |
≤ 2.00 |
|
Silicon (Si) |
≤ 0.75 |
|
Phosphorus (P) |
≤ 0.045 |
|
Sulfur (S) |
≤ 0.030 |
|
Nitrogen (N) |
≤ 0.10 |
|
Iron (Fe) |
Balance |
Mechanical Properties Chart
| Property | Value |
|---|---|
|
Tensile Strength (MPa) |
515 min
|
|
Yield Strength (MPa) |
205 min |
|
Elongation (%) |
40 min |
|
Hardness (HRB) |
70 – 90 |
|
Modulus of Elasticity |
193 |
|
Density (g/cm³) |
8.00 |
Equivalent Grades Chart
| Standard | Equivalent Grade |
|---|---|
|
UNS |
S30400 |
|
WNR |
1.4301 |
|
EN |
X5CrNi18-10 |
|
JIS |
SUS 304 |
|
GOST |
08Х18Н10 |
Weight Chart – Stainless Steel Sheets
| Thickness (mm) | Weight per m² (kg) | Weight per 1.25m x 2.5m Sheet (kg) | Weight per 1.5m x 3m Sheet (kg) |
|---|---|---|---|
|
0.3 |
2.40 |
7.50 |
10.80 |
|
0.4 |
3.20 |
10.00 |
14.40 |
|
0.5 |
4.00 |
12.50 |
18.00 |
|
0.6 |
4.80 |
15.00 |
21.60 |
|
0.8 |
6.40 |
20.00 |
28.80 |
|
1.0 |
8.00 |
25.00 |
36.00 |
|
1.2 |
9.60 |
30.00 |
43.20 |
|
1.5 |
12.00 |
37.50 |
54.00 |
|
2.0 |
16.00 |
50.00 |
72.00 |
|
3.0 |
24.00 |
75.00 |
108.00 |
|
4.0 |
32.00 |
100.00 |
144.00 |
|
5.0 |
40.00 |
125.00 |
180.00 |
|
6.0 |
48.00 |
150.00 |
216.00 |
|
8.0 |
64.00 |
200.00 |
288.00 |
|
10.0 |
80.00 |
250.00 |
360.00 |
Applications of Stainless Steel in Various Industries
Benefits of Stainless Steel Sheets
- Longevity: Outstanding durability with minimal wear and tear over decades of use.
- Low Maintenance: Resists rust and staining, requiring minimal upkeep.
- Aesthetic Versatility: Wide range of finishes and textures suitable for architectural designs.
- Cost-Effective: Long lifecycle translates to better value over time.
- Eco-Friendly: Fully recyclable, supporting green building initiatives.
- High Performance in Extreme Conditions: Excellent resistance to chemical exposure, heat, and low temperatures.
