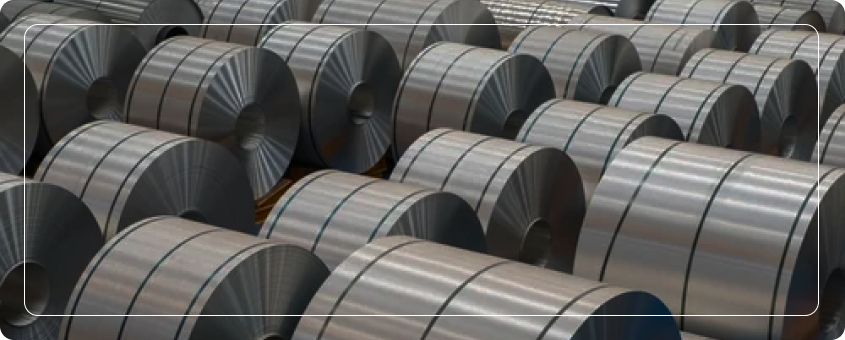

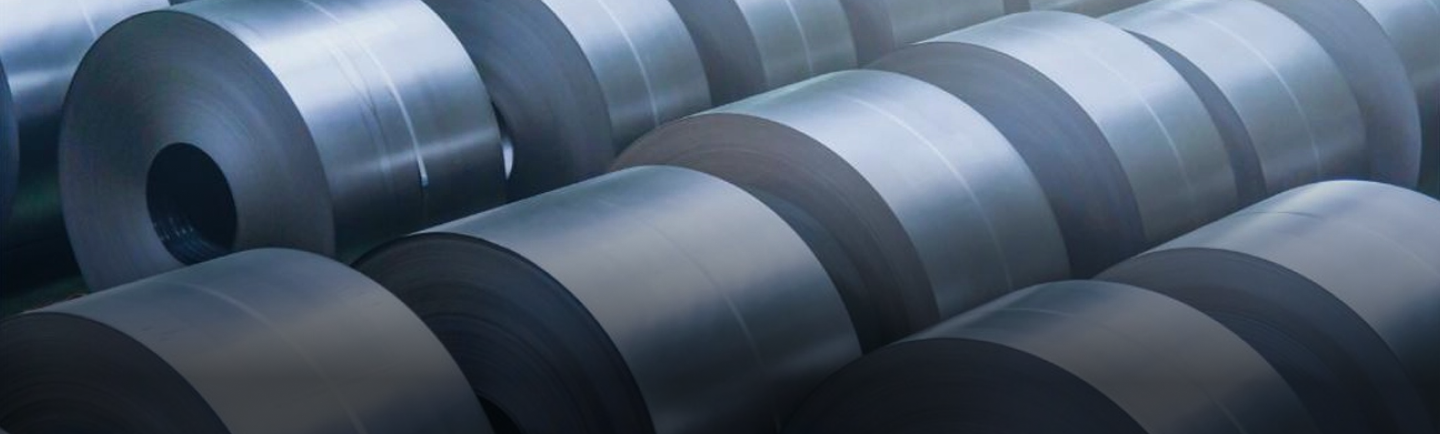

Carbon Steel Coil

Stellanox Steel is a trusted supplier and manufacturer of Carbon Steel Coils designed to deliver exceptional strength, durability, and performance across diverse industrial sectors. Our carbon steel coils are produced under strict quality control systems, ensuring consistent thickness, excellent mechanical properties, and optimal surface finishes.

Available in a range of grades, dimensions, and finishes, our carbon steel coils meet global standards and serve industries like construction, automotive, manufacturing, oil & gas, and heavy machinery fabrication.

What are Carbon Steel Coils?

Carbon Steel Coils are long, continuous strips of carbon steel rolled into coil form for easy handling, transportation, and further processing. Depending on the rolling process, coils are categorised as hot-rolled (HR) or cold-rolled (CR).

Hot-rolled carbon steel coils offer superior strength and are ideal for structural applications, while cold-rolled coils feature a smoother surface finish and are used for precision manufacturing where aesthetics and tight tolerances are critical.

Due to their flexibility, carbon steel coils are widely used to manufacture sheets, strips, pipes, tubes, and various fabricated components.

Products
Stainless Steel
Carbon Steel
Duplex Stainless Steel
Super Duplex Stainless Steel
Alloy Steel
Titanium
Hastelloy
Inconel
Monel
Aluminium
Copper
Pure Nickel
Flanges
Forged Fittings
Valves
Fasteners

Key Features of Carbon Steel Coils

High Mechanical Strength: Supports heavy-duty applications across industries.
Excellent Fabrication Properties: Suitable for bending, cutting, welding, and stamping.
Wide Thickness and Width Range: Customizable based on project requirements.
Surface Finishes for Different Uses: Available in mill finish, pickled, oiled, or coated.
Versatile Applications: Serves as raw material for multiple manufacturing processes.
Cost-Effective Material: Economical choice for bulk industrial and construction projects.

Specification Chart – Carbon Steel Coil

Property	Details
Product	Carbon Steel Coil
Manufacturing Standards	ASTM A1011, ASTM A635, EN 10051, JIS G3131
Available Grades	A36, A1011 CS, S235JR, S275JR, SS400
Thickness Range (Hot Rolled)	1.2 mm to 20 mm
Thickness Range (Cold Rolled)	0.3 mm to 3.0 mm
Width Range	600 mm to 2000 mm
Coil Inner Diameter	508 mm or 610 mm
Coil Weight	2 tons to 25 tons (customizable)
Surface Finish Options	Hot Rolled (HR), Pickled and Oiled (P&O), Cold Rolled (CR), Galvanized (optional)
Edge Condition	Mill Edge, Slit Edge
Processing Options	Slitting, Cut-to-Length, Blanking

Chemical Composition Chart – Carbon Steel Coil (Example: ASTM A1011 CS Type B)

Element	Symbol	Composition (%)	Role
Carbon	C	0.15 max	Improves strength and hardness
Manganese	Mn	0.60 max	Increases ductility and toughness
Phosphorus	P	≤ 0.035	Should be minimal to enhance toughness
Sulfur	S	≤ 0.040	Minimized for better weldability
Iron	Fe	Balance	Base element

Mechanical Properties Chart – Carbon Steel Coil (Example: ASTM A1011 CS)

Property	Value	Application Relevance
Tensile Strength (MPa)	270 – 410	Resistance to breaking under tension
Yield Strength (MPa)	180 min	Elastic limit before permanent deformation
Elongation (%) (in 50 mm)	28% min	Ability to stretch without fracture
Hardness (Brinell HB)	100 – 150 HB	Surface hardness against indentation
Surface Quality	Excellent (Cold Rolled)	Preferred for visible or aesthetic parts

Equivalent Grades Chart – Carbon Steel Coil

Standard	Equivalent Grade	Notes
ASTM	A36, A1011	American hot-rolled coil standards
EN	S235JR, S275JR	European norms for structural steel
JIS	SS400, SPHC (hot rolled)	Japanese Industrial Standards
ISO	HR1, HR2	ISO standards for hot rolled coils

Carbon Steel Coil Weight Chart

Thickness (mm)	Width (mm)	Length (m)	Weight (kg)
0.5	1000	1000	3.93
1.0	1000	1000	7.85
2.0	1250	1000	19.63
3.0	1500	1000	35.33
4.0	1500	1000	47.10
5.0	1500	1000	58.88

Applications of Carbon Steel Coils

Thanks to their strength, affordability, and flexibility, Carbon Steel Coils are used in:

Oil And Gas Industry

Marine Industry

Building And Structural Steel

Power and Energy

Aerospace

Defence

Benefits of Carbon Steel Coils

Superior Strength at an Affordable Cost: Strong enough for structural use at economical prices.
Ease of Processing: Easily fabricated into sheets, strips, pipes, and custom shapes.
Adaptability Across Industries: Serves multiple sectors with one material.
Recyclability: 100% recyclable, supporting green manufacturing initiatives.
Wide Range of Grades and Finishes: Tailored solutions for both industrial and aesthetic applications.
Custom Sizes Available: Save fabrication time with pre-cut-to-length services.

Frequently Asked Questions

Explore our FAQs for insights on materials, customization, and delivery.

What is the difference between hot-rolled and cold-rolled carbon steel coils?

Hot-rolled coils are produced at high temperatures and are ideal for structural applications. Cold-rolled coils are further processed for a smooth surface and tight tolerances, ideal for precision manufacturing and visible parts.

Can carbon steel coils be galvanised?

Yes. Carbon steel coils can be zinc-coated (galvanised) to improve corrosion resistance, particularly for outdoor and marine applications.

Do you offer slitting and custom widths for coils?

Absolutely. Stellanox Steel provides precision coil slitting and cut-to-width services to match project requirements.

Are carbon steel coils suitable for load-bearing applications?

Yes, especially hot-rolled coils like A36 or S275JR, which offer excellent load-bearing strength.
