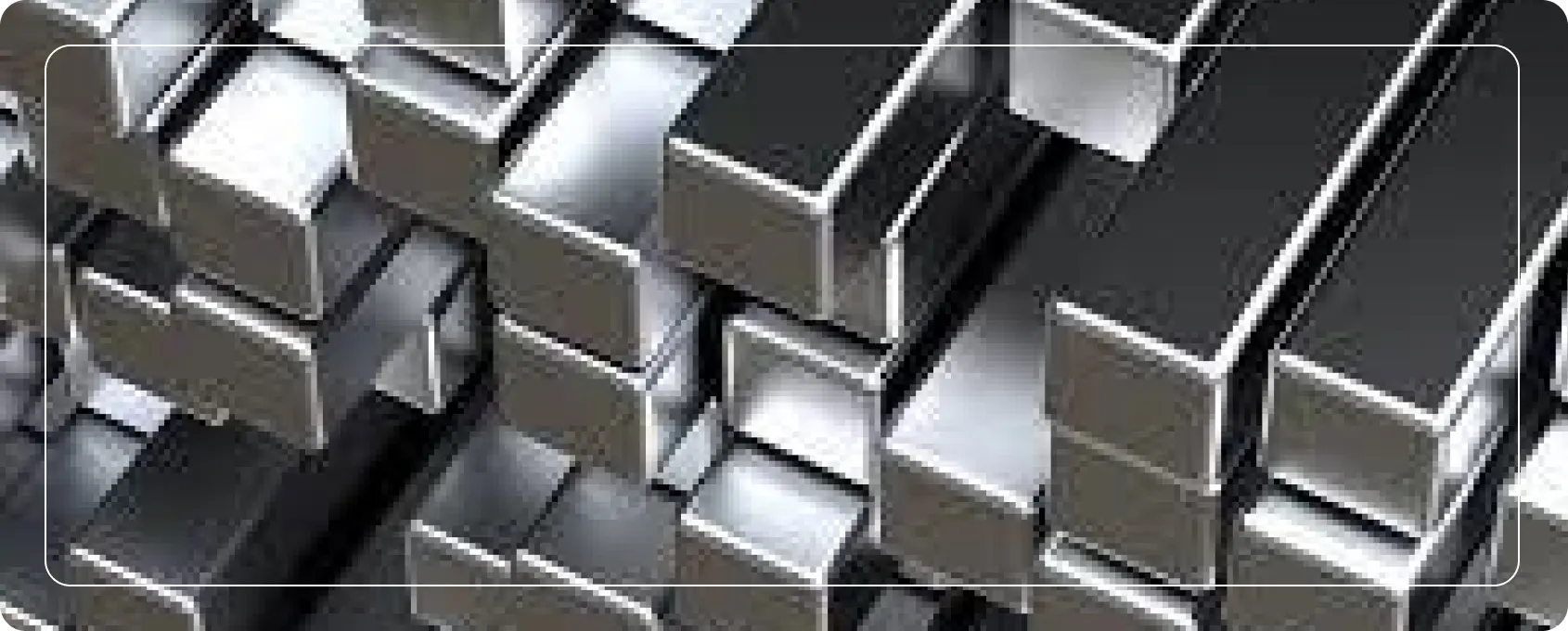

Stainless Steel Square Bar
Stainless Steel Square Bars are solid bars with an equal cross-section width and height, commonly used in architectural, construction, and mechanical parts where high strength and clean finishes are essential.
What is a Stainless Steel Square Bar
An SS Square Bar is a solid steel bar with a square profile, manufactured by hot rolling or cold drawing. It combines strength, durability, and corrosion resistance, making it perfect for brackets, supports, and ornamental applications.
At Stellanox, we supply stainless steel square bars in a comprehensive range of grades, dimensions, and finishes to cater to diverse industrial, structural, and fabrication needs across global markets.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Stainless Steel Square Bar
- High Structural Stability
- Clean Finish for Decorative Use
- Corrosion and Heat Resistant
- Easy to Weld, Cut, and Machine
- Available in Multiple Grades and Finishes
- Complies with ASTM, EN, and JIS Standards
Grade of Stainless Steel Square Bar
Specification Chart – Stainless Steel Square Bar
| Property | Details |
|---|---|
| Sizes | 5 mm x 5 mm to 100 mm x 100 mm |
| Length | Up to 6 meters, custom cut available |
| Surface Finishes | Cold Drawn, Hot Rolled, Bright, Polished |
| Tolerances | h11, h13, ASTM A484 |
| Grades Available | 304, 316, 410, 430, 17-4PH |
| Certification | EN 10204 3.1/3.2, ISO, PED, RoHS |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 515 min |
| Yield Strength (MPa) | 205 min |
| Elongation (%) | 40 min |
| Hardness (HRB) | 70 – 90 |
| Modulus of Elasticity (GPa) | 193 |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| UNS | S30400 |
| EN | X5CrNi18-10 |
| WNR | 1.4301 |
| JIS | SUS 304 |
Square Bar Weight Chart (Density ≈ 7.93 g/cm³)
| Size (mm) | Wt./m (kg) | Size (mm) | Wt./m (kg) |
|---|---|---|---|
| 5 x 5 | 0.20 | 30 x 30 | 7.11 |
| 6 x 6 | 0.29 | 32 x 32 | 8.10 |
| 8 x 8 | 0.51 | 40 x 40 | 12.64 |
| 10 x 10 | 0.79 | 50 x 50 | 19.75 |
| 12 x 12 | 1.14 | 60 x 60 | 28.44 |
| 16 x 16 | 2.02 | 75 x 75 | 44.45 |
| 20 x 20 | 3.16 | 100 x 100 | 79.00 |
| 25 x 25 | 4.94 | — | — |
Applications of Stainless Steel Square Bar
Stellanox Steel’s Stainless Steel products are trusted across sectors for their durability, corrosion resistance, and aesthetic appeal
Benefits of Stainless Steel Square Bar
- High Strength and Durability: Provides excellent mechanical strength for structural and heavy-duty applications.
- Excellent Corrosion Resistance: Ideal for outdoor and harsh environments, resisting rust and chemical damage.
- Versatile Fabrication: Easily cut, welded, machined, and formed for various manufacturing needs.
- Consistent Dimensions: Maintains precise and uniform square shape for reliable engineering and design use.
- Aesthetic Appeal: Smooth and polished surface finishes suitable for decorative and architectural projects.
- Eco-Friendly and Recyclable: Made from 100% recyclable materials supporting sustainable manufacturing.
