Stainless Steel Hex Bar
Stainless Steel Hex Bars are six-sided solid bars commonly used in precision machining, fastener manufacturing, automotive components, and valve production. Due to their hexagonal geometry, they offer excellent grip, strength, and dimensional accuracy in mechanical applications.
What is a SS Hex Bars

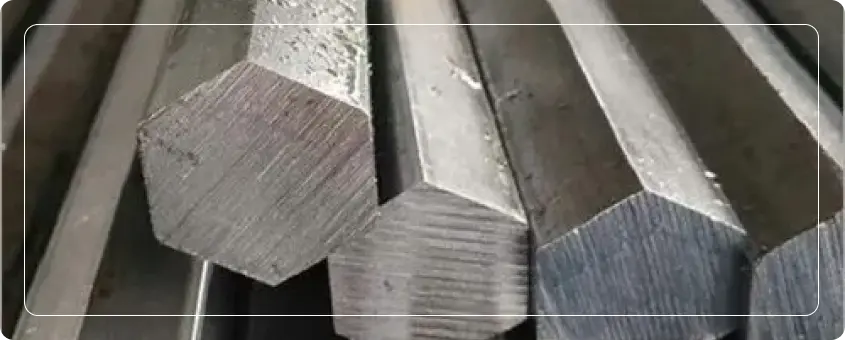

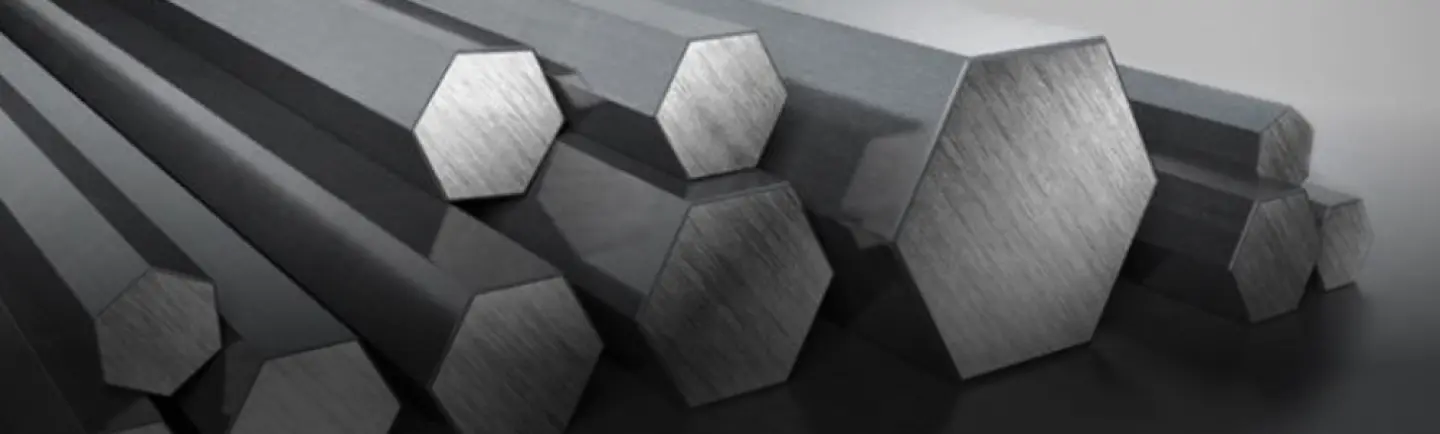

An SS Hex Bar is a bar with a hexagonal cross-section, made from stainless steel alloys known for strength, corrosion resistance, and machinability. These bars are typically cold drawn or hot rolled and are ideal for threading, CNC machining, and load-bearing assemblies.
At Stellanox, we offer stainless steel hex bars in multiple grades, sizes, and finishes to meet international standards and application needs.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of SS Hex Bars
- High Strength & Load Resistance
- Corrosion & Oxidation Resistance
- Precision Machined for Threading
- Excellent Weldability and Fabrication
- Compatible with Various Industrial Standards
- Supplied in Austenitic, Martensitic, Duplex Grades
Grade of SS Hex Bars
Specification Chart – SS Hex Bars
| Property | Details |
|---|---|
| Sizes | 5 mm to 100 mm (AF - Across Flats) |
| Length | Up to 6 meters, custom cuts available |
| Surface Finishes | Cold Drawn, Bright, Polished |
| Tolerances | h11, h13, customized |
| Grades Available | 304, 304L, 316, 316L, 410, 420, 430, 17-4PH |
| Standards Followed | ASTM A276, A479, EN 10088, DIN 174, JIS G4311 |
| Certification | EN 10204 3.1/3.2, ISO, PED, RoHS |
Chemical Composition Chart
| Element | Composition (% by Weight) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 10.5 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties Chart
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 515 min |
| Yield Strength (MPa) | 205 min |
| Elongation (%) | 40 min |
| Hardness (HRB) | 70 – 90 |
| Modulus of Elasticity (GPa) | 193 |
Equivalent Grades Chart
| Standard | Equivalent Grade |
|---|---|
| UNS | S30400 |
| EN | X5CrNi18-10 |
| WNR | 1.4301 |
| JIS | SUS 304 |
Weight Chart
| Across Flats (mm) | Weight per meter (kg) | Weight per 3 meters (kg) | Weight per 6 meters (kg) |
|---|---|---|---|
| 10 | 0.60 | 1.80 | 3.60 |
| 15 | 1.35 | 4.05 | 8.10 |
| 20 | 2.40 | 7.20 | 14.40 |
| 25 | 3.75 | 11.25 | 22.50 |
| 30 | 5.40 | 16.20 | 32.40 |
| 35 | 7.35 | 22.05 | 44.10 |
| 40 | 9.60 | 28.80 | 57.60 |
| 45 | 12.15 | 36.45 | 72.90 |
| 50 | 15.00 | 45.00 | 90.00 |
Applications of SS Hex Bars
Stellanox Steel’s Stainless Steel products are trusted across sectors for their durability, corrosion resistance, and aesthetic appeal
Benefits of SS Hex Bars
- High Strength and Durability: Ideal for applications requiring robust mechanical strength and long-lasting performance.
- Excellent Corrosion Resistance: Resists rust, oxidation, and chemical damage even in tough environments.
- Versatile Fabrication: Easily machined, welded, and formed to meet diverse manufacturing needs.
- Dimensional Stability: Retains shape and size under mechanical stress and temperature fluctuations.
- Aesthetic Appeal: Smooth finish suitable for both functional and decorative uses.
- Eco-Friendly: 100% recyclable, promoting sustainable production practices.
