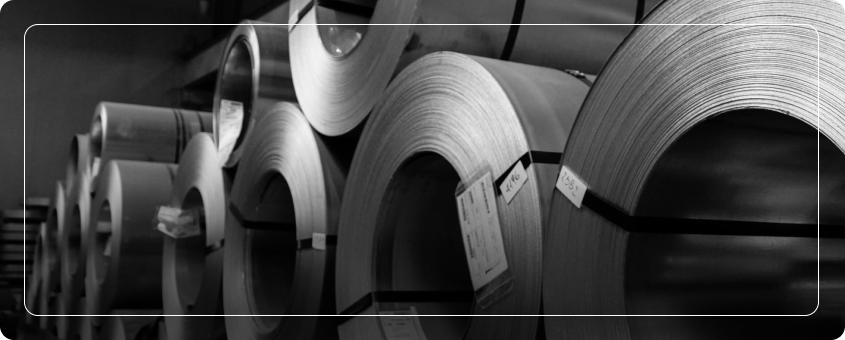

Stainless Steel Strip
Stellanox Steel is a premier manufacturer and exporter of Stainless Steel Strips, known for their exceptional strength, corrosion resistance, and precision in thickness and width. Our stainless steel strips are produced using advanced cold-rolling and slitting technologies to meet the high-performance demands of industries such as automotive, electronics, medical devices, industrial components, and construction.
Available in multiple grades and surface finishes, Stellanox Stainless Steel Strips are suitable for both decorative and functional applications that require precision, reliability, and aesthetic appeal.
What are Stainless Steel Strips?
Stainless Steel Strips are narrow, flat, and thin sheets produced by precision slitting of coils. Typically cold-rolled for enhanced surface finish and dimensional control, these strips offer excellent corrosion resistance, formability, and mechanical strength.
They are widely used in precision components, gaskets, flexible tubing, washers, clamps, battery cases, electronic housings, and surgical instruments. Stainless steel strips can be supplied with a wide variety of finishes such as 2B, BA, Mirror, or Matte.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Stainless Steel Strips
- Excellent Corrosion Resistance – Ideal for moisture, chemical, or acidic environments
- Tight Tolerance Control – Precision slitting ensures uniform width and thickness
- Multiple Surface Finishes – From matte to mirror for aesthetic or functional needs
- Good Formability & Ductility – Suitable for stamping, bending, folding, and deep drawing
- Temperature & Oxidation Resistance – Withstands high-temperature applications
- Available in Multiple Grades – From austenitic to ferritic and duplex types
Specification Chart – Stainless Steel Strip
| Property | Details |
|---|---|
|
Product |
Stainless Steel Strip |
|
Manufacturing Standards |
ASTM A240, A480, EN 10088-2, JIS G4305, ISO |
|
Available Grades |
304, 304L, 316, 316L, 410, 430, 321, 347 |
|
Thickness Range |
0.20 mm – 5.00 mm |
|
Width Range |
5 mm – 650 mm |
|
Coil ID Options |
508 mm, 610 mm |
|
Surface Finishes |
2B, BA, No.4, No.8 (Mirror), Matte, Hairline |
|
Edge Condition |
Mill Edge, Slit Edge, Deburred Edge |
|
Processing Capabilities |
Slitting, Cut-to-Length, Polishing, PVC Coating |
Chemical Composition Chart
| Element | Symbol | Composition (%) | Function |
|---|---|---|---|
|
Chromium
|
Cr |
18.0 – 20.0 |
Provides corrosion resistance |
|
Nickel |
Ni |
8.0 – 10.5 |
Enhances ductility and strength |
|
Carbon |
C |
≤ 0.08 |
Limits brittleness |
|
Manganese |
Mn |
≤ 2.00 |
Improves toughness |
|
Silicon |
Si |
≤ 0.75 |
Acts as a deoxidizer |
|
Phosphorus |
P |
≤ 0.045 |
Controlled for improved weldability |
|
Sulfur |
S |
≤ 0.030 |
Enhances machinability |
|
Iron |
Fe |
Balance |
Primary component |
Mechanical Properties Chart
| Property | Value | Application Use |
|---|---|---|
|
Tensile Strength (MPa) |
≥ 515 |
Withstands tension and force |
|
Yield Strength (MPa) |
≥ 205 |
Resistance to plastic deformation |
|
Elongation (%) |
≥ 40 |
Good formability |
|
Hardness (HRB) |
≤ 90 |
Resists surface indentation |
|
Modulus of Elasticity (GPa)
|
~193 GPa |
Maintains rigidity in applications |
Equivalent Grades Chart
| Standard | Equivalent Grade | Region |
|---|---|---|
|
ASTM |
304, 316, 410 |
United States |
|
EN |
1.4301, 1.4401 |
Europe |
|
JIS |
SUS 304, SUS 316 |
Japan |
|
ISO |
X5CrNi18-10, X2CrNiMo17-12-2 |
International |
Stainless Steel Strip Weight Chart
| Thickness (mm) | Width (mm) | Weight per Meter (kg) | Weight per 10 / 100 m (kg) |
|---|---|---|---|
|
0.2 |
20 |
0.03 |
0.30 / 3.00 |
|
0.3 |
20 |
0.05 |
0.50 / 5.00 |
|
0.4 |
25 |
0.08 |
0.80 / 8.00 |
|
0.5 |
50 |
0.20 |
2.00 / 20.00 |
|
0.6 |
50 |
0.24 |
2.40 / 24.00 |
|
0.8 |
50 |
0.31 |
3.10 / 31.00 |
|
1.0 |
50 |
0.39 |
3.90 / 39.00 |
|
1.2 |
75 |
0.71 |
7.10 / 71.00 |
|
1.5 |
100 |
1.18 |
11.80 / 118.00 |
|
2.0 |
100 |
1.57 |
15.70 / 157.00 |
|
2.5 |
125 |
2.45 |
24.50 / 245.00 |
|
3.0 |
150 |
3.53 |
35.30 / 353.00 |
|
4.0 |
150 |
4.71 |
47.10 / 471.00 |
|
5.0 |
200 |
7.85 |
78.50 / 785.00 |
Applications of Stainless Steel in Various Industries
Benefits of Stainless Steel Coils
- Highly Durable and Corrosion-Resistant
- Smooth Surface and Excellent Aesthetics
- Precision Tolerances and Finish Quality
- Available in Narrow and Ultra-Thin Sizes
- Adaptable for Complex Forming or Drawing
- Eco-Friendly and Fully Recyclable Material
