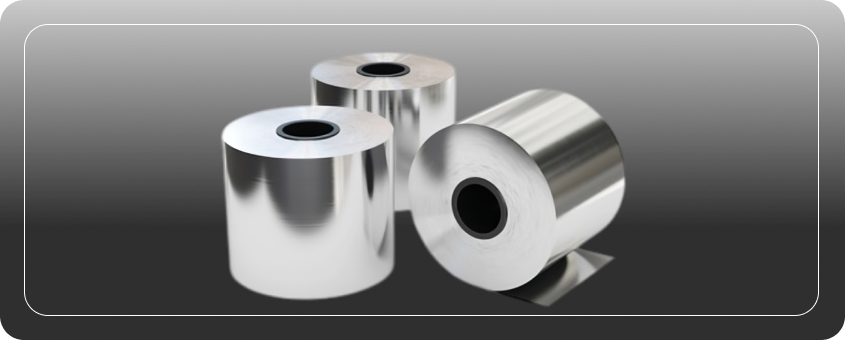

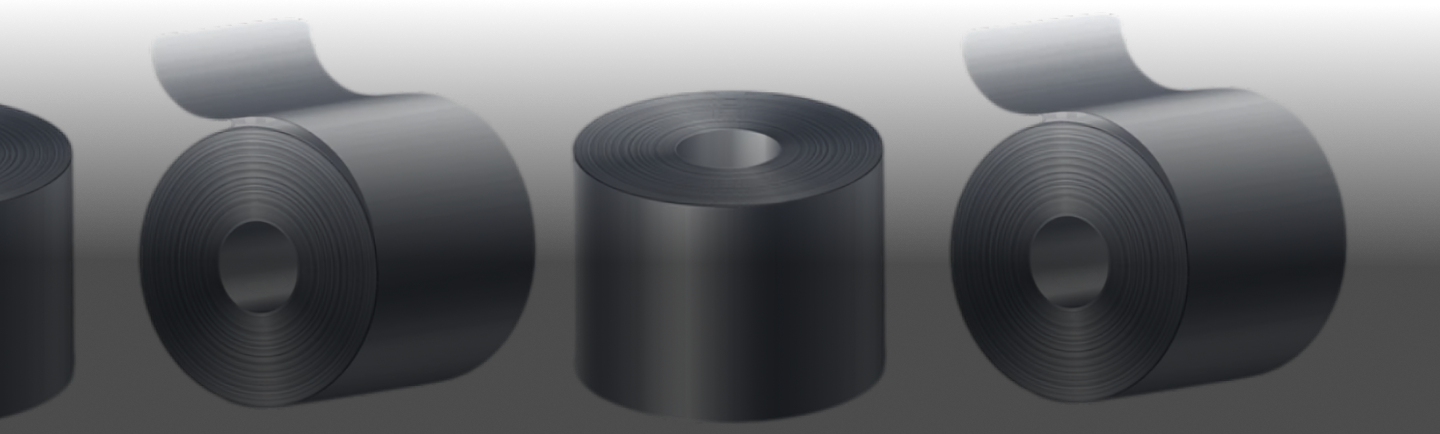

304 / 304L Stainless Steel Strip
Stellanox Steel supplies premium-quality 304 / 304L Stainless Steel Strips, ideal for precision applications requiring a combination of strength, formability, and corrosion resistance. These strips are widely used in kitchenware, medical instruments, automotive trim, and architectural components due to their excellent durability and clean finish.
304 / 304L stainless steel strips provide superior resistance to oxidation and a variety of corrosive environments, making them a versatile choice for both industrial and decorative use.
What is 304 / 304L Stainless Steel Strip?
304 / 304L Stainless Steel Strip is an austenitic chromium-nickel alloy with low carbon content (L variant) designed for enhanced weldability and minimized carbide precipitation. The strip form is typically cold-rolled, allowing for precise thickness control and superior surface finish.
It offers excellent corrosion resistance, good strength, and outstanding forming and fabrication properties, making it suitable for critical applications in food processing, pharmaceuticals, and chemical industries.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 304 / 304L Stainless Steel Strip
- Excellent Corrosion Resistance: Performs well in atmospheric, chemical, and food-grade environments.
- Low Carbon (304L): Reduces risk of intergranular corrosion post-welding.
- Superior Formability: Ideal for deep drawing, stamping, and forming.
- Hygienic Properties: Non-reactive with most chemicals, ideal for sanitary use.
- Attractive Finish: Available in bright annealed or matte finishes for aesthetic use.
- Versatile Application: Used in various sectors from domestic to industrial.
Specification Chart – 304 / 304L Stainless Steel Strip
| Property | Details |
|---|---|
| Grade | 304 / 304L (UNS S30400 / S30403) |
| Standards | ASTM A240, ASTM A666, EN 10088-2 |
| Thickness Range | 0.1 mm – 3.0 mm |
| Width Range | 5 mm – 600 mm |
| Coil ID / OD | 200 mm / 400–800 mm (customizable) |
| Surface Finishes | 2B, BA (Bright Annealed), No. 4 |
| Edge Condition | Slit Edge, Round Edge |
| Processing Options | Slitting, Cut-to-Length, Hardening |
Chemical Composition – 304 vs. 304L Stainless Steel Strip
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 12.0 |
| Carbon (C) | ≤ 0.08 (304), ≤ 0.03 (304L) |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 304 / 304L Stainless Steel Strip
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HRB) | ≤ 95 (Annealed) |
| Density | 8.00 g/cm³ |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | 304 / 304L |
| EN | 1.4301 / 1.4307 |
| JIS | SUS 304 / SUS 304L |
| UNS | S30400 / S30403 |
| DIN | X5CrNi18-10 / X2CrNi18-9 |
304 / 304L Stainless Steel Pipe Weight Chart
| Thickness (mm) | Weight per m² (kg) |
|---|---|
| 0.2 | 1.60 |
| 0.5 | 4.00 |
| 0.8 | 6.40 |
| 1.0 | 8.00 |
| 1.5 | 12.00 |
| 2.0 | 16.00 |
| 3.0 | 24.00 |
Applications of 304 / 304L Stainless Steel Strip
- Food Processing Equipment
- Kitchen Sinks & Utensils
- Medical Instruments & Surgical Tools
- Decorative Trim and Panels
- Heat Exchanger Fins
- Chemical Tanks and Piping
- Architectural Cladding & Railings
Benefits of 304 / 304L Stainless Steel Strip
- Hygienic and easy to clean
- Strong yet highly formable
- Low maintenance in corrosive environments
- Excellent compatibility with welding and fabrication
- Long service life with minimal rust or degradation
- Aesthetically appealing finishes for design use
