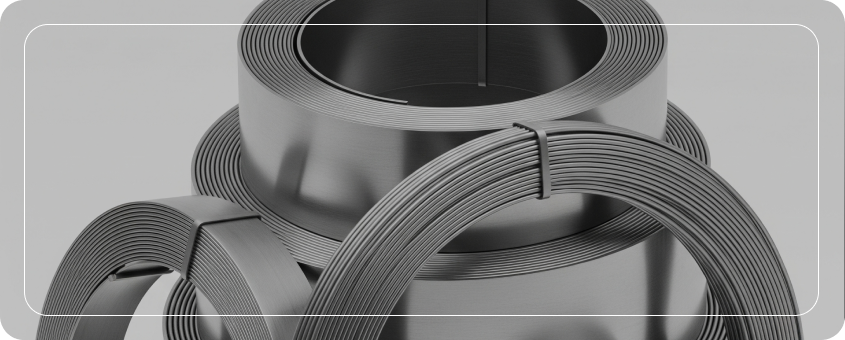

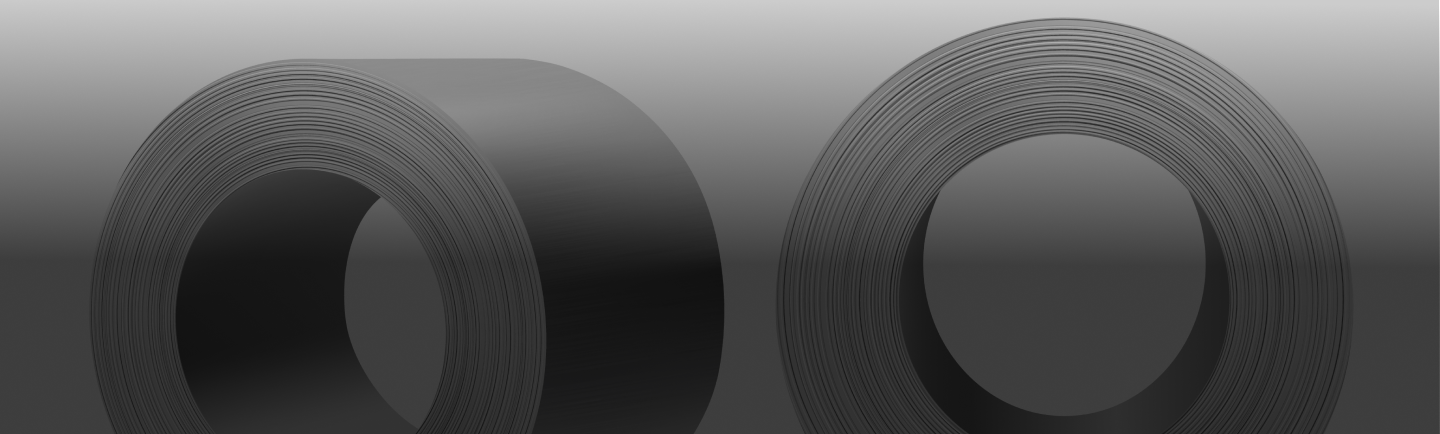

316 / 316L Stainless Steel Coil
Stellanox Steel supplies high-quality 316 / 316L Stainless Steel Coils, known for their enhanced corrosion resistance, especially in marine and chloride-rich environments. These molybdenum-bearing stainless coils are widely used in industries such as chemical processing, marine, pharmaceutical, food & beverage, and architectural design, where superior corrosion and pitting resistance are essential.
Available in hot-rolled and cold-rolled forms with multiple finish options, 316/316L coils are ideal for applications that demand reliability, formability, and hygiene.
What is 316 / 316L Stainless Steel Coil?
316 Stainless Steel Coils are austenitic stainless steel products containing 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The addition of molybdenum significantly enhances resistance to chlorides, acids, and pitting corrosion. The 316L variant features a lower carbon content (≤0.03%), improving weldability and resistance to intergranular corrosion after welding or high-temperature exposure.
These coils are available in slit, annealed, polished, and custom finishes and are essential in sanitary, corrosive, and high-temperature environments.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 316 / 316L Stainless Steel Coil
- Exceptional Corrosion & Pitting Resistance: Ideal for marine and chloride-laden atmospheres.
- Molybdenum-Enhanced Alloy: Improves resistance to acidic and chemical corrosion.
- Weldable & Fabrication-Friendly: Suitable for TIG, MIG, and resistance welding.
- Low Carbon Version (316L): Prevents carbide precipitation during welding.
- Clean & Sanitary Surface: Used extensively in food, pharma, and medical industries.
- Available in Multiple Finishes: Mirror, brushed, matte, and mill finish available.
Specification Chart – 316 / 316L Stainless Steel Coil
| Property | Details |
|---|---|
| Grades | 316 / 316L (UNS S31600 / S31603) |
| Standards | ASTM A240 / A480, EN 10088-2, JIS G4305 |
| Width Range | 10 mm – 2000 mm |
| Thickness Range | 0.3 mm – 6 mm |
| Coil ID / OD | 508 mm ID, OD as per client requirement |
| Surface Finishes | 2B, BA, No.4, No.8 (Mirror), HL, SB |
| Processing Options | Slitting, Polishing, Cut-to-Length, PVC Coating |
| Edge Condition | Mill Edge, Slit Edge |
Chemical Composition – 316 vs. 316L Stainless Steel Coil
| Element | 316 (%) | 316L (%) |
|---|---|---|
| Chromium | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum | 2.0 – 3.0 | 2.0 – 3.0 |
| Carbon | ≤ 0.08 | ≤ 0.03 |
| Manganese | ≤ 2.0 | ≤ 2.0 |
| Silicon | ≤ 0.75 | ≤ 0.75 |
| Phosphorus | ≤ 0.045 | ≤ 0.045 |
| Sulfur | ≤ 0.030 | ≤ 0.030 |
| Iron | Balance | Balance |
Mechanical Properties – 316 / 316L Stainless Steel Coil
| Property | 316 | 316L |
|---|---|---|
| Tensile Strength (MPa) | ≥ 515 | ≥ 485 |
| Yield Strength (MPa) | ≥ 205 | ≥ 170 |
| Elongation (%) | ≥ 40 | ≥ 40 |
| Hardness (HRB) | ≤ 95 | ≤ 95 |
| Density | 8.00 g/cm³ | 8.00 g/cm³ |
Equivalent Grades
| Standard | 316 | 316L |
|---|---|---|
| ASTM | 316 | 316L |
| EN | 1.4401 | 1.4404 |
| JIS | SUS 316 | SUS 316L |
| UNS | S31600 | S31603 |
| DIN | X5CrNiMo17-12-2 | X2CrNiMo17-12-2 |
316 / 316L Stainless Steel Coil Weight Chart
| Thickness (mm) | Weight (kg/m²) |
|---|---|
| 0.3 | 2.40 |
| 0.5 | 4.00 |
| 0.8 | 6.40 |
| 1.0 | 8.00 |
| 1.5 | 12.00 |
| 2.0 | 16.00 |
| 3.0 | 24.00 |
| 4.0 | 32.00 |
| 5.0 | 40.00 |
| 6.0 | 48.00 |
Applications of 316 / 316L Stainless Steel Coil
- Marine and Coastal Structural Components
- Food Processing Equipment and Cleanroom Panels
- Pharmaceutical and Medical Equipment
- Heat Exchangers and Chemical Tanks
- Brewery and Dairy Systems
- Architectural Roofing, Facades, and Cladding
- Wastewater Treatment and Desalination Plants
Benefits of 316 / 316L Stainless Steel Coil
- Superior performance in chloride-rich and corrosive environments
- Low maintenance with excellent service life
- Smooth, sanitary surfaces for hygienic applications
- High formability and weldability for complex fabrication
- Aesthetic finishes available for visible structural use
- Suitable for cryogenic and high-temperature conditions
