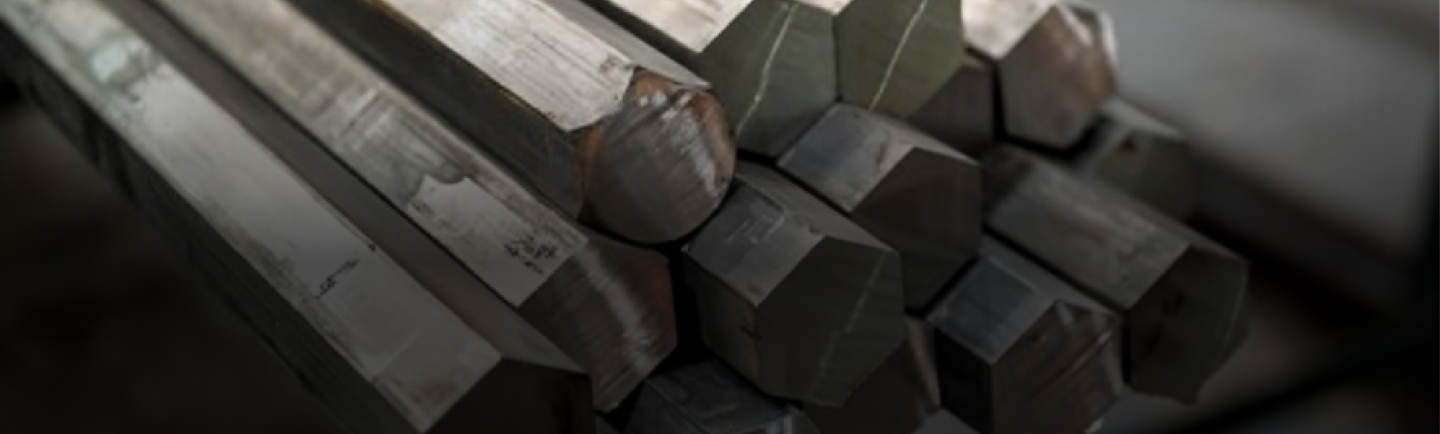

316 / 316L Stainless Steel Hex Bar
Stellanox Steel supplies corrosion-resistant 316 / 316L Stainless Steel Hex Bars, engineered for demanding environments such as marine, chemical, food, and pharmaceutical industries. Known for its molybdenum-enhanced corrosion resistance, especially against chlorides and acidic solutions, this hexagonal bar offers high strength, excellent machinability, and outstanding performance in harsh conditions.
316 / 316L hex bars are ideal for precision components, fasteners, fittings, and structural parts where both hygiene and durability are essential.
What is 316 / 316L Stainless Steel Hex Bar?
316 / 316L Stainless Steel Hex Bar is a six-sided bar made from austenitic stainless steel alloyed with 2–3% molybdenum. This addition improves pitting resistance in chloride-rich environments such as saltwater, making it superior to 304-grade stainless.
316L has a lower carbon content, which prevents carbide precipitation during welding and enhances resistance to intergranular corrosion, particularly in pressure vessels and welded assemblies.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 316 / 316L Stainless Steel Hex Bar
- Molybdenum Addition: Enhances resistance to chlorides and acidic media.
- Low Carbon (316L): Prevents weld decay and improves fabricability.
- Corrosion Resistant: Excellent in marine, chemical, and pharmaceutical environments.
- Non-Magnetic (Annealed): Retains austenitic structure under normal conditions.
- Precision Form: Ideal for threaded rods, nuts, bolts, and valve stems.
- Polishable Surface: Suitable for sanitary and aesthetic applications.
Specification Chart – 316 / 316L Stainless Steel Hex Bar
| Property | Details |
|---|---|
| Grade | 316 / 316L (UNS S31600 / S31603) |
| Standards | ASTM A276, ASTM A479, EN 10088-3 |
| Size Range (Across Flats) | 6 mm – 75 mm |
| Length | Up to 6 meters or custom cut |
| Finish | Cold Drawn, Bright, Peeled, Polished |
| Tolerances | h11, h12 (as required) |
Chemical Composition – 316 / 316L Stainless Steel Hex Bar
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Carbon (C) | ≤ 0.08 (316), ≤ 0.03 (316L) |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 316 / 316L Stainless Steel Hex Bar
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HRB) | ≤ 95 (Annealed) |
| Density | 8.00 g/cm³ |
Equivalent Grades – 316 / 316L Stainless Steel Hex Bar
| Standard | Grade |
|---|---|
| ASTM | 316 / 316L |
| EN | 1.4401 / 1.4404 |
| JIS | SUS 316 / SUS 316L |
| UNS | S31600 / S31603 |
| DIN | X5CrNiMo17-12-2 / X2CrNiMo17-12-2 |
Applications of 316 / 316L Stainless Steel Hex Bar
- Marine Hardware and Shafts
- Valve Components and Pipe Fittings
- Food and Beverage Processing Equipment
- Chemical and Petrochemical Machinery
- Pharmaceutical and Clean Room Infrastructure
- High-Strength Bolts and Threaded Bars
Benefits of 316 / 316L Stainless Steel Hex Bar
- Resistant to pitting, crevice corrosion, and chlorides
- Safe for hygienic and sanitary processing environments
- Superior weldability and workability
- Excellent polishable finish for visual applications
- Suitable for submerged and outdoor exposure
- Long service life in extreme chemical and saline conditions
