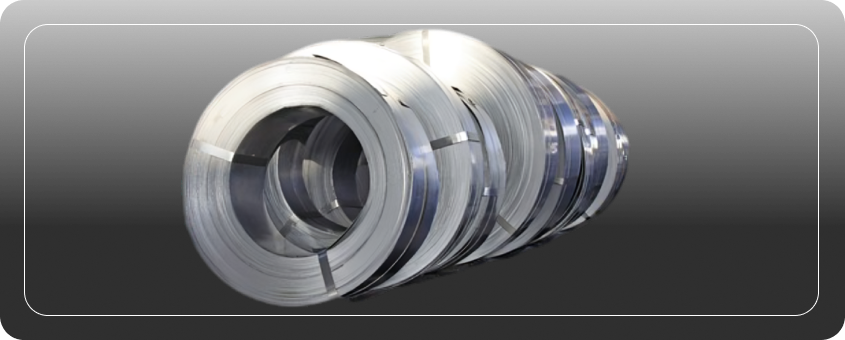

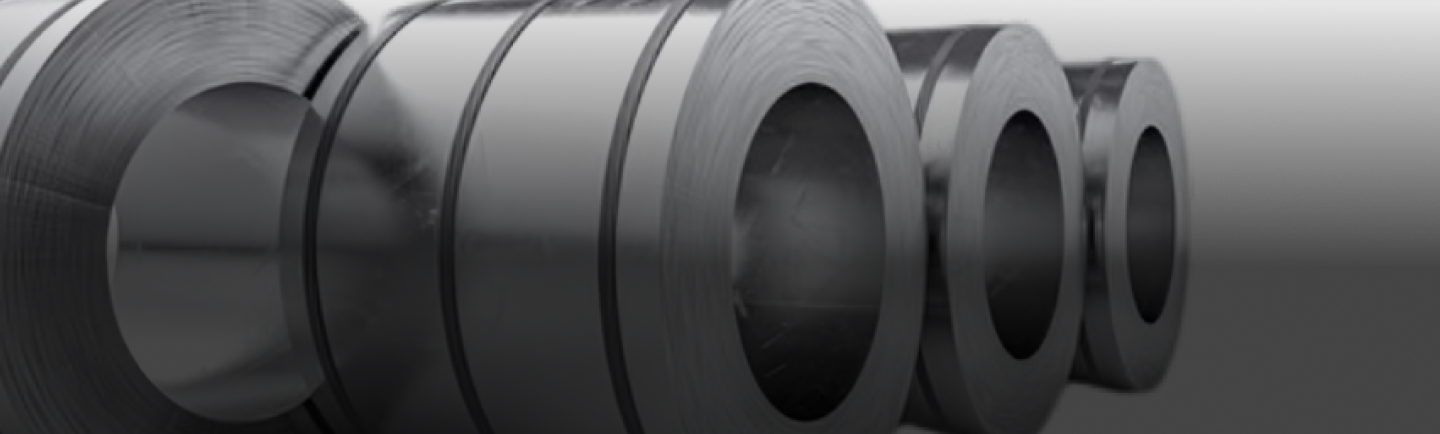

316 / 316L Stainless Steel Strip
Stellanox Steel offers precision-manufactured 316 / 316L Stainless Steel Strips, engineered for applications demanding superior corrosion resistance, especially in marine, chemical, and chloride-rich environments. These strips are widely used in food processing, pharmaceuticals, and medical devices, offering durability, weldability, and a clean, hygienic surface.
316 / 316L strips combine high strength and ductility with molybdenum-enhanced corrosion resistance, making them a premium choice for both industrial and architectural applications.
What is 316 / 316L Stainless Steel Strip?
316 / 316L Stainless Steel Strip is an austenitic chromium-nickel-molybdenum alloy known for its enhanced resistance to chlorides and other corrosive agents. The “L” variant has reduced carbon content, which improves weldability and minimizes the risk of intergranular corrosion.
Available in cold-rolled and annealed form, 316 / 316L strips offer excellent strength, non-reactivity with most chemicals, and compatibility with sanitary and marine-grade applications.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 316 / 316L Stainless Steel Strip
- Superior Corrosion Resistance: Outstanding resistance to chlorides, acids, and marine environments.
- Molybdenum Enhanced: Molybdenum (2–3%) improves resistance to pitting and crevice corrosion.
- Low Carbon (316L): Ideal for welded applications without post-weld heat treatment.
- Excellent Formability: Withstands deep drawing, stamping, and machining.
- Hygienic Surface: Suitable for food-grade and biomedical applications.
- Temperature Resistance: Performs well in high-temperature service conditions.
Specification Chart – 316 / 316L Stainless Steel Strip
| Property | Details |
|---|---|
| Grade | 316 / 316L (UNS S31600 / S31603) |
| Standards | ASTM A240, ASTM A666, EN 10088-2 |
| Thickness Range | 0.1 mm – 3.0 mm |
| Width Range | 5 mm – 600 mm |
| Coil ID / OD | 200 mm / 400–800 mm (customizable) |
| Surface Finishes | 2B, BA (Bright Annealed), No. 4 |
| Edge Condition | Slit Edge, Deburred, Round Edge |
| Processing Options | Slitting, Cut-to-Length, Work Hardening |
Chemical Composition – 316 vs. 316L Stainless Steel Strip
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Carbon (C) | ≤ 0.08 (316), ≤ 0.03 (316L) |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 316 / 316L Stainless Steel Strip
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HRB) | ≤ 95 (Annealed) |
| Density | 8.00 g/cm³ |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | 316 / 316L |
| EN | 1.4401 / 1.4404 |
| JIS | SUS 316 / SUS 316L |
| UNS | S31600 / S31603 |
| DIN | X5CrNiMo17-12-2 / X2CrNiMo17-12-2 |
316 / 316L Stainless Steel Strip Weight Chart
| Thickness (mm) | Weight per m² (kg) |
|---|---|
| 0.2 | 1.60 |
| 0.5 | 4.00 |
| 0.8 | 6.40 |
| 1.0 | 8.00 |
| 1.5 | 12.00 |
| 2.0 | 16.00 |
| 3.0 | 24.00 |
Applications of 316 / 316L Stainless Steel Coil
- Marine and Coastal Structural Components
- Food Processing Equipment and Cleanroom Panels
- Pharmaceutical and Medical Equipment
- Heat Exchangers and Chemical Tanks
- Brewery and Dairy Systems
- Architectural Roofing, Facades, and Cladding
- Wastewater Treatment and Desalination Plants
Benefits of 316 / 316L Stainless Steel Coil
- Superior performance in chloride-rich and corrosive environments
- Low maintenance with excellent service life
- Smooth, sanitary surfaces for hygienic applications
- High formability and weldability for complex fabrication
- Aesthetic finishes available for visible structural use
- Suitable for cryogenic and high-temperature conditions
