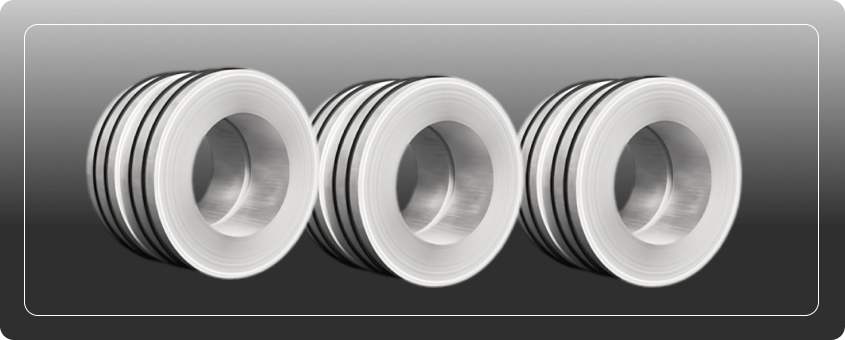

347 Stainless Steel Strip
Stellanox Steel offers high-performance 347 Stainless Steel Strips, ideal for applications involving frequent temperature fluctuations, welding, and corrosive environments. Stabilized with niobium (columbium), 347 stainless strips offer superior resistance to intergranular corrosion and maintain excellent strength and formability even under elevated temperatures.
These strips are widely used in aerospace, chemical processing, and thermal cycling systems where reliability and high-temperature endurance are critical.
What is 347 Stainless Steel Strip?
347 Stainless Steel Strip is an austenitic stainless steel alloy containing chromium, nickel, and niobium (columbium). The addition of niobium stabilizes the alloy against chromium carbide precipitation, making it highly resistant to intergranular corrosion even after welding or long-term exposure to high temperatures.
It retains mechanical strength and oxidation resistance up to 900°C, making it ideal for high-temperature, welded, or pressure-bearing applications.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 347 Stainless Steel Strip
- Niobium Stabilized: Prevents carbide precipitation and intergranular corrosion.
- Excellent Weldability: No post-weld heat treatment required.
- High-Temperature Strength: Withstands creep and stress-rupture conditions.
- Good Oxidation Resistance: Suitable for use in high-temperature cycles.
- Stable Mechanical Properties: Maintains strength even after thermal exposure.
- Austenitic Non-Magnetic: Remains generally non-magnetic in annealed condition.
Specification Chart – 347 Stainless Steel Strip
| Property | Details |
|---|---|
| Grade | 347 (UNS S34700) |
| Standards | ASTM A240, ASTM A666, EN 10088-2 |
| Thickness Range | 0.1 mm – 3.0 mm |
| Width Range | 5 mm – 600 mm |
| Coil ID / OD | 200 mm / 400–800 mm (customizable) |
| Surface Finishes | 2B, BA, No. 4 |
| Edge Condition | Slit Edge, Rounded, Deburred |
| Processing Options | Slitting, Skin Pass, Cut-to-Length |
Chemical Composition – 347 Stainless Steel Strip
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 17.0 – 19.0 |
| Nickel (Ni) | 9.0 – 13.0 |
| Niobium (Nb) + Tantalum | ≥ 10xC – ≤ 1.0 |
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 347 Stainless Steel Strip
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HRB) | ≤ 95 (Annealed) |
| Density | 7.93 g/cm³ |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | 347 |
| EN | 1.4550 |
| JIS | SUS 347 |
| UNS | S34700 |
| DIN | X6CrNiNb18-10 |
347 Stainless Steel Strip Weight Chart
| Thickness (mm) | Weight per m² (kg) |
|---|---|
| 0.2 | 1.59 |
| 0.5 | 3.98 |
| 0.8 | 6.37 |
| 1.0 | 7.96 |
| 1.5 | 11.94 |
| 2.0 | 15.92 |
| 3.0 | 23.88 |
Applications of 347 Stainless Steel Strip
- Heat Exchangers and Boilers
- Pressure Vessels and Expansion Bellows
- Aerospace Exhaust Systems
- High-Temperature Piping and Manifolds
- Chemical and Petrochemical Processing
- Furnace Components and Kiln Parts
Benefits of 347 Stainless Steel Strip
- Superior resistance to intergranular corrosion after welding
- Maintains strength at high temperatures
- No risk of sensitization in the heat-affected zone
- Reliable for cyclic thermal exposure
- Ideal for critical industrial, chemical, and thermal applications
- Compatible with all standard forming and welding processes
