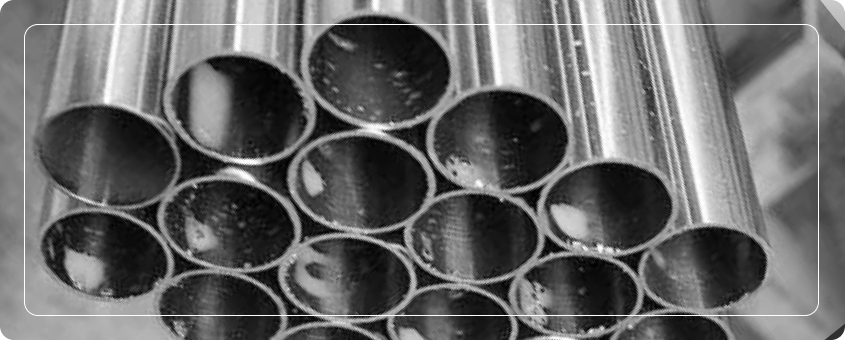

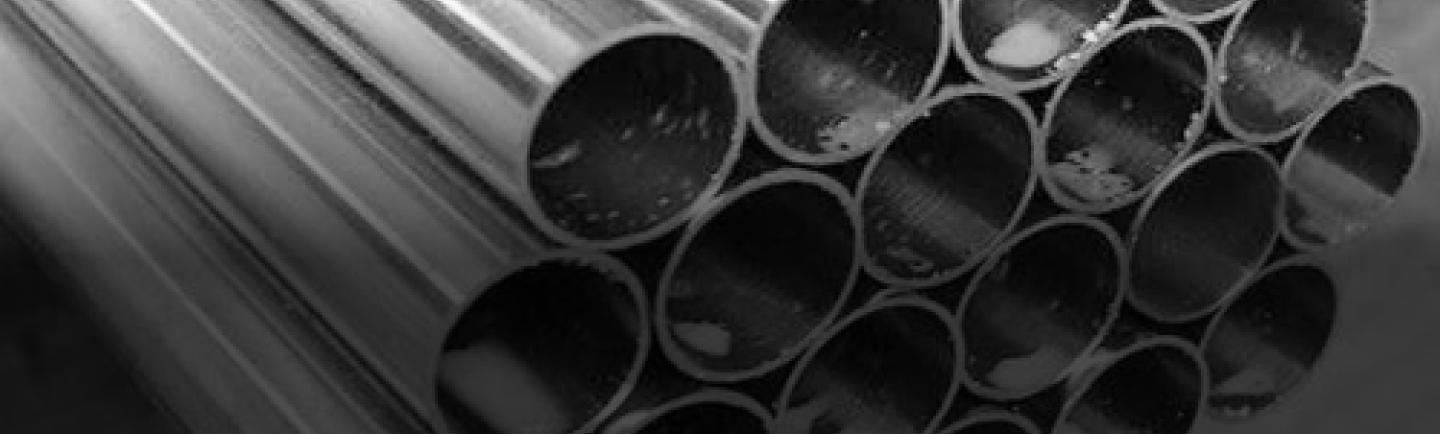

410 Stainless Steel Pipe
Stellanox Steel is a reliable supplier of 410 Stainless Steel Pipes, engineered for strength, hardness, and resistance to wear and corrosion. As a martensitic stainless steel, 410 offers excellent mechanical properties and can be heat-treated for enhanced hardness. It is commonly used in high-stress applications across petrochemical, thermal, mechanical, and construction industries where abrasion resistance is key.
410 stainless steel pipe is well-suited for systems involving steam, mild chemicals, and environments requiring moderate corrosion resistance combined with high strength.
What is 410 Stainless Steel Pipe?
410 Stainless Steel Pipe is a martensitic grade of stainless steel containing 11.5–13.5% chromium and low nickel content, offering excellent hardness and strength after heat treatment. It is magnetic in all conditions and can be easily machined and fabricated.
This grade is used in applications that require both structural integrity and resistance to wear, such as oilfield tubing, shafts, heat exchangers, and pressure piping.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 410 Stainless Steel Pipe
- High Hardness and Strength: Ideal for pressure-bearing and wear-resistant applications.
- Moderate Corrosion Resistance: Performs well in mild atmospheres, steam, and light chemical exposure.
- Heat Treatable: Can be hardened through quenching and tempering for greater strength.
- Good Machinability: Easier to machine than austenitic stainless grades.
- Magnetic in All Conditions: Useful for magnetic-sensitive installations.
- Economical Martensitic Option: Cost-effective compared to high-nickel grades.
Specification Chart – 410 Stainless Steel Pipe
| Property | Details |
|---|---|
| Grade | 410 (UNS S41000) |
| Standards | ASTM A312, A268, ASME SA312 |
| Size Range | 1/8" NB to 24" NB |
| Wall Thickness | SCH 5 to SCH 160 / XXS |
| Length | 6m, 12m or custom |
| Pipe Types | Seamless, Welded, ERW |
| End Options | Plain End, Beveled End, Threaded |
| Surface Finish | Pickled, Polished, Annealed |
| Certifications | EN 10204 3.1 / 3.2, NACE MR0175, ISO, PED |
Chemical Composition – 410 Stainless Steel Pipe
| Element | Symbol | Composition (%) |
|---|---|---|
| Chromium | Cr | 11.5 – 13.5 |
| Carbon | C | ≤ 0.15 |
| Manganese | Mn | ≤ 1.0 |
| Silicon | Si | ≤ 1.0 |
| Phosphorus | P | ≤ 0.040 |
| Sulfur | S | ≤ 0.030 |
| Iron | Fe | Balance |
Mechanical Properties – 410 Stainless Steel Pipe (Annealed Condition)
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 480 |
| Yield Strength (MPa) | ≥ 275 |
| Elongation (%) | ≥ 20 |
| Hardness (HB) | ≤ 217 |
| Density | 7.75 g/cm³ |
Note: Strength increases significantly with heat treatment (quenched & tempered).
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | 410 |
| EN | 1.4006 |
| JIS | SUS 410 |
| UNS | S41000 |
| DIN | X12Cr13 |
410 Stainless Steel Pipe Weight Chart
| OD (mm) | Wall Thickness (mm) | Weight per Meter (kg) | Weight per 6m (kg) |
|---|---|---|---|
| 21.3 | 2.77 | 1.24 | 7.44 |
| 33.4 | 3.38 | 2.56 | 15.36 |
| 42.2 | 3.56 | 3.57 | 21.42 |
| 48.3 | 3.68 | 4.38 | 26.28 |
| 60.3 | 3.91 | 6.10 | 36.60 |
| 73.0 | 5.16 | 10.00 | 60.00 |
| 88.9 | 5.49 | 12.90 | 77.40 |
| 114.3 | 6.02 | 20.00 | 120.00 |
Applications of 410 Stainless Steel Pipe
- Oil & gas tubing
- Steam and pressure piping
- Heat exchanger tubes
- Mechanical shafts and axles
- Structural frameworks
- Automotive exhaust systems
- Pulp and paper machinery components
Benefits of 410 Stainless Steel Pipe
- Excellent wear and abrasion resistance
- Heat treatable for enhanced hardness
- Magnetic and easy to machine
- Strong mechanical performance at elevated temperatures
- More cost-effective than higher-grade austenitic stainless steel
- Long-lasting in low-to-moderate corrosive environments
