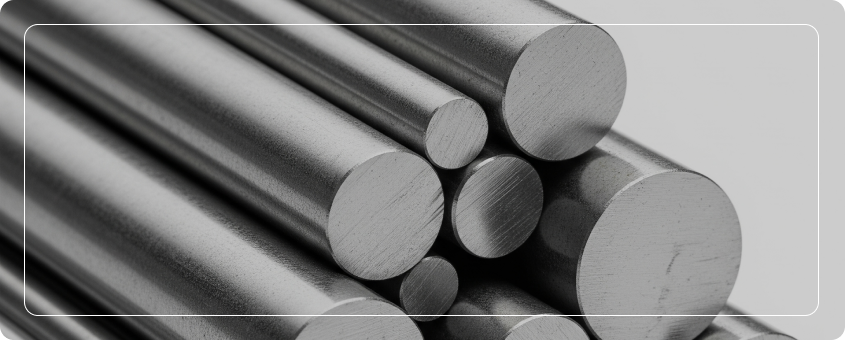

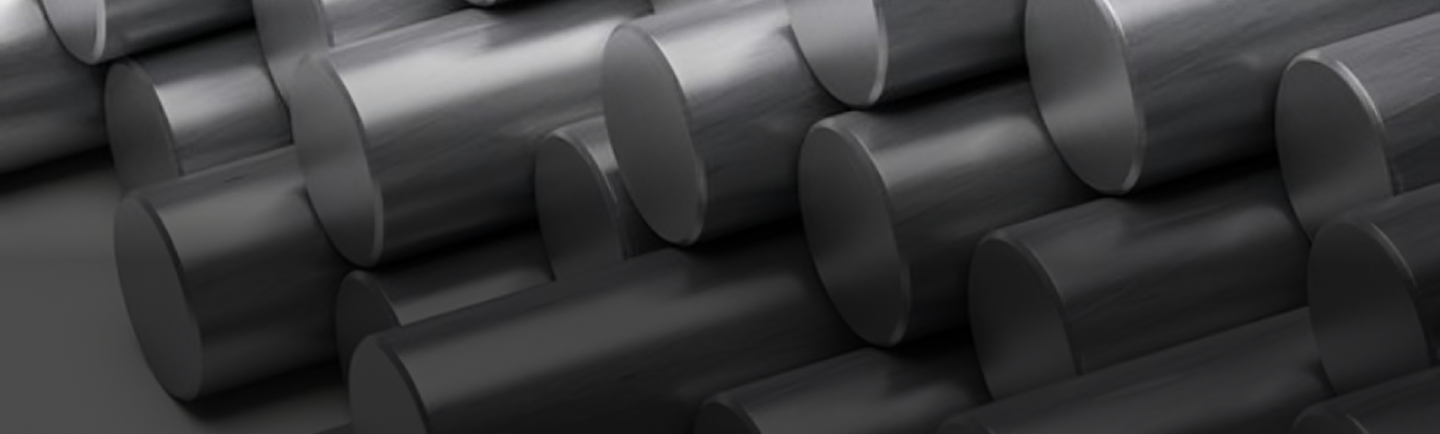

410 Stainless Steel Round Bar
Stellanox Steel supplies high-strength 410 Stainless Steel Round Bars, ideal for applications that require excellent hardness, wear resistance, and moderate corrosion protection. As a martensitic stainless steel, 410 round bars can be heat treated to enhance strength and mechanical performance, making them suitable for components in pumps, valves, shafts, and cutting tools.
Widely used across automotive, construction, and petrochemical industries, 410 stainless round bars offer a durable and economical solution for heavy-duty applications.
What is 410 Stainless Steel Round Bar?
410 Stainless Steel Round Bar is a martensitic stainless steel alloy containing 11.5–13.5% chromium. It can be hardened through heat treatment, offering high mechanical strength and good wear resistance. Though it has lower corrosion resistance than austenitic grades, 410 performs well in mildly corrosive environments and dry atmospheres.
410 round bars are available in hardened and annealed forms and are commonly used in applications where mechanical strength and toughness are critical.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 410 Stainless Steel Round Bar
- Heat Treatable: Achieves high hardness through quenching and tempering.
- Good Wear and Abrasion Resistance: Ideal for mechanical and tooling applications.
- Moderate Corrosion Resistance: Performs well in dry and mildly corrosive settings.
- Magnetic in All Conditions: Useful for electrical and structural use.
- High Tensile Strength: Suitable for dynamic and static load-bearing roles.
- Affordable: Cost-effective alternative to higher alloy stainless grades.
Specification Chart – 410 Stainless Steel Round Bar
| Property | Details |
|---|---|
| Grade | 410 (UNS S41000) |
| Standards | ASTM A276, ASTM A479, EN 10088-3 |
| Diameter Range | 6 mm to 300 mm |
| Length | Up to 6 meters or customized |
| Finishes | Black, Peeled, Polished, Bright |
| Conditions | Annealed, Hardened, Tempered |
Chemical Composition – 410 Stainless Steel Round Bar
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 11.5 – 13.5 |
| Carbon (C) | 0.08 – 0.15 |
| Manganese (Mn) | ≤ 1.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.030 |
| Iron (Fe) | Balance |
Mechanical Properties – 410 Stainless Steel Round Bar (Annealed)
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 500 |
| Yield Strength (MPa) | ≥ 275 |
| Elongation (%) | ≥ 20 |
| Hardness (HRB) | ≤ 96 (Annealed) |
| Density | 7.75 g/cm³ |
Equivalent Grades – 410 Stainless Steel Round Bar
| Standard | Grade |
|---|---|
| ASTM | 410 |
| EN | 1.4006 |
| JIS | SUS 410 |
| UNS | S41000 |
| DIN | X12Cr13 |
Applications of 410 Stainless Steel Round Bar
- Pump and Valve Components
- Shafts, Bushings, and Spindles
- Fasteners and Springs
- Cutting Tools and Blades
- Wear Plates and Machine Parts
- Petrochemical Equipment
Benefits of 410 Stainless Steel Round Bar
- Excellent hardness and strength when heat treated
- Reliable performance in abrasive environments
- Magnetic properties in all conditions
- Machinable and polishable for precision use
- Affordable alternative to high-alloy steels
- Adaptable to industrial, structural, and tooling uses
