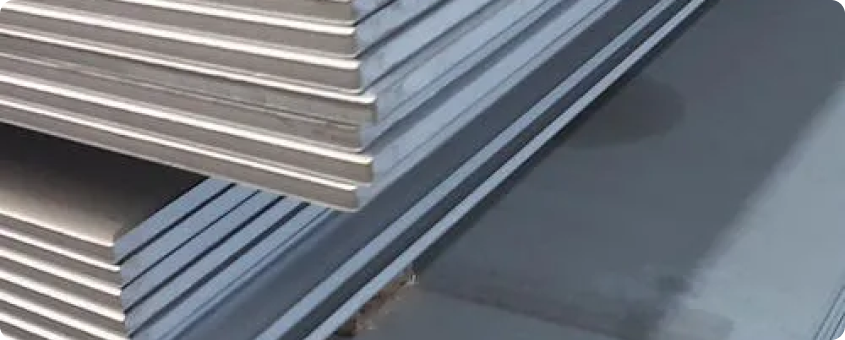

410 Stainless Steel Sheet
Stellanox Steel is a top supplier and stockholder of premium 410 stainless steel sheets, which combine moderate corrosion resistance with strength, hardness, and wear resistance. 410 sheets are commonly utilised in engineering components, kitchenware, and industrial tools because they are perfect for applications where mechanical performance and durability are crucial.
410 stainless steel provides reliable performance for fabrication and structural application in a variety of sectors due to its exceptional machinability and heat-treatable qualities.
What is 410 Stainless Steel Sheet?
The metallic stainless steel product known as 410 stainless steel sheet has a chromium content of 11.5% to 13.5%. In contrast to austenitic grades, 410 is perfect for mechanical and structural parts since it can be heat-treated to obtain excellent tensile strength and wear resistance.
This sheet works well in slightly corrosive settings where strength, resistance to oxidation, and reasonable formability are required.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 410 Stainless Steel Sheet
- Heat-treatable for increased hardness and strength
- Excellent wear, abrasion, and scaling resistance
- Good corrosion resistance in mild atmospheres
- Magnetic in all conditions
- Easily machined and formed in annealed state
- Cost-effective alternative to high-nickel alloys
- Performs well under elevated temperatures
Specification Chart – 410 Stainless Steel Sheet
| Property | Details |
|---|---|
| Standard | ASTM A240 / ASME SA240 |
| Grade | 410 (UNS S41000) |
| Thickness Range | 0.5 mm to 50 mm |
| Width Range | Up to 1500 mm |
| Length | 2000 mm to 6000 mm (or custom sizes) |
| Finishes Available | 2B, BA, Matte, Brushed, Polished |
| Processing Types | Cold Rolled (CR), Hot Rolled (HR) |
| Surface Protection | PVC coating / Paper interleaf |
Chemical Composition – 410 Stainless Steel Sheet
| Element | Symbol | Composition (%) |
|---|---|---|
| Chromium | Cr | 11.5 – 13.5 |
| Carbon | C | 0.08 – 0.15 |
| Manganese | Mn | ≤ 1.0 |
| Silicon | Si | ≤ 1.0 |
| Phosphorus | P | ≤ 0.04 |
| Sulfur | S | ≤ 0.03 |
| Iron | Fe | Balance |
Mechanical Properties – 410 Stainless Steel Sheet (Annealed Condition)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 450 MPa |
| Yield Strength (0.2%) | ≥ 275 MPa |
| Elongation (in 50 mm) | ≥ 20% |
| Hardness (HRB) | ≤ 88 |
| Hardness (HRC, hardened) | Up to 50 |
| Modulus of Elasticity | 200 GPa |
| Density | 7.75 g/cm³ |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | 410 |
| EN | 1.4006 |
| JIS | SUS 410 |
| UNS | S41000 |
| DIN | X12Cr13 |
410 Stainless Steel Sheet Weight Chart
| Thickness (mm) | Weight per m² (kg) | Weight per 4' x 8' Sheet (kg) |
|---|---|---|
| 0.5 | 3.88 | 9.48 |
| 1.0 | 7.75 | 18.96 |
| 1.5 | 11.63 | 28.44 |
| 2.0 | 15.50 | 37.92 |
| 3.0 | 23.25 | 56.88 |
| 5.0 | 38.75 | 94.80 |
| 6.0 | 46.50 | 113.76 |
Applications of 410 Stainless Steel Sheet
- Turbine blades and steam components
- Automotive parts and fasteners
- Cutlery and kitchen utensils
- Machine parts and gears
- Pump shafts and valves
- Press plates and dies
- Heat-resistant structural supports
Benefits of 410 Stainless Steel Sheet
- High mechanical strength and hardness
- Wear and abrasion resistant
- Resists scaling at high temperatures
- Cost-effective alternative to other high-strength steels
- Easily heat-treated and fabricated
- Ideal for mechanical and structural engineering uses
