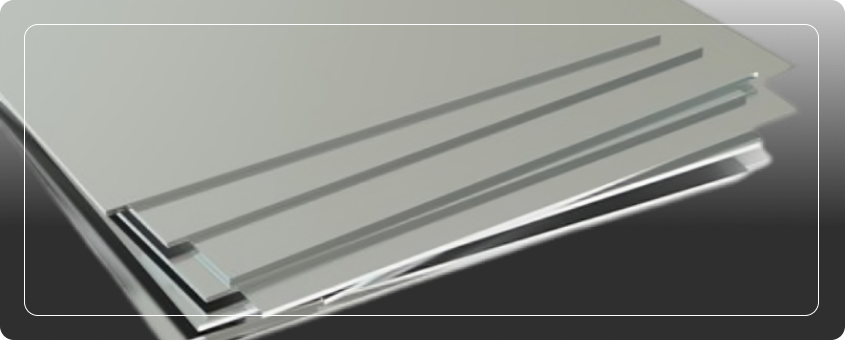

430 Stainless Steel Sheet
Premium 430 stainless steel sheets from Stellanox Steel are designed to give superior corrosion resistance, high formability, and an affordable substitute for austenitic grades. 430 is a ferritic stainless steel that is magnetic, nickel-free, and frequently used in applications that require moderate corrosion protection and aesthetics, like architectural trim, exhaust systems, and kitchen appliances.
What is 430 Stainless Steel Sheet?
With a chromium concentration of roughly 16–18%, 430 stainless steel sheet is a ferritic chromium alloy. Particularly in slightly hostile situations, it is renowned for its excellent formability, oxidation resistance, and corrosion resistance. Because 430 is magnetic and free of nickel, it is a more cost-effective choice for applications that don’t require high corrosion or chemical resistance than austenitic grades like 304 and 316.
Due to its superior finish, attractive appearance, and respectable performance, this grade is frequently used in applications such as interior car interiors, decorative trims, flanges, and indoor appliances.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of 430 Stainless Steel Sheet
- Economical: It is more cost-effective than 304 or 316 due to its nickel-free composition.
- Magnetic Properties: Perfect for cladding and kitchen appliances that work with induction.
- Moderate Corrosion Resistance: Effective in slightly corrosive interior conditions.
Superior Surface - Finish: Mirror, 2B, and BA finishes are available for ornamental purposes.
- Good Formability: Under mild stress, it may be bent, rolled, and moulded without breaking.
- Oxidation Resistance: In dry conditions, withstands high temperatures.
Safe for Food: For many food-grade applications, it is non-reactive.
Specification Chart – 430 Stainless Steel Sheet
| Property | Details |
|---|---|
| Standard | ASTM A240 / ASME SA240 |
| Grade | 430 (UNS S43000) |
| Thickness Range | 0.4 mm to 6.0 mm |
| Width Range | Up to 1500 mm |
| Length | 2000 mm to 6000 mm (custom cuts available) |
| Finishes Available | 2B, BA, No.4, No.8, Hairline, Embossed |
| Processing Types | Cold Rolled (CR), Hot Rolled (HR) |
| Surface Protection | PVC coated / Paper interleaf |
Chemical Composition – 430 Stainless Steel Sheet
| Element | Symbol | Composition (%) |
|---|---|---|
| Chromium | Cr | 16.0 – 18.0 |
| Carbon | C | ≤ 0.12 |
| Manganese | Mn | ≤ 1.00 |
| Silicon | Si | ≤ 1.00 |
| Phosphorus | P | ≤ 0.040 |
| Sulfur | S | ≤ 0.030 |
| Iron | Fe | Balance |
Mechanical Properties – 430 Stainless Steel Sheet
| Property | Value |
|---|---|
| Tensile Strength | ≥ 450 MPa |
| Yield Strength (0.2%) | ≥ 205 MPa |
| Elongation (50 mm) | ≥ 22% |
| Hardness (HRB) | ≤ 89 |
| Modulus of Elasticity | 200 GPa |
| Density | 7.70 g/cm³ |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | 430 |
| EN | 1.4016 |
| JIS | SUS 430 |
| UNS | S43000 |
| DIN | X6Cr17 |
430 Stainless Steel Sheet Weight Chart
| Thickness (mm) | Weight per m² (kg) | Weight per 4' x 8' Sheet (kg) |
|---|---|---|
| 0.5 | 3.85 | 9.40 |
| 1.0 | 7.70 | 18.80 |
| 1.5 | 11.55 | 28.20 |
| 2.0 | 15.40 | 37.60 |
| 3.0 | 23.10 | 56.40 |
| 5.0 | 38.50 | 94.00 |
| 6.0 | 46.20 | 112.80 |
Applications of 430 Stainless Steel Sheet
- Washing machine drums and housings
- Automotive trim and exhaust manifolds
- Architectural cladding and roofing
- Industrial ductwork and panels
- Food processing equipment (dry conditions)
- Elevator interiors and wall cladding
Benefits of 430 Stainless Steel Sheet
- Economical solution for low to moderate corrosive environments
- High aesthetic appeal for indoor use
- Suitable for magnetic applications
- Low maintenance with good oxidation resistance
- Stable under moderate heat conditions
- Readily available and recyclable
