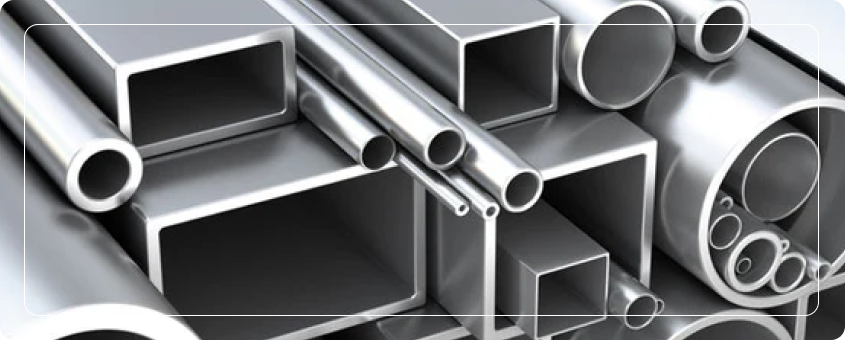

Aluminium Pipes
Stellanox Steel supplies a premium selection of Aluminium Pipes engineered for lightweight durability, corrosion resistance, and excellent formability. Our aluminium pipes are manufactured using high-grade alloys like 6061, 6082, 5083, and 7075, making them ideal for automotive, aerospace, marine, structural, HVAC, and industrial fluid transport systems.
Available in seamless and welded formats, our aluminium pipes conform to global standards and offer superior strength-to-weight performance across a wide range of operating conditions.
What are Aluminium Pipes?
Aluminium Pipes are hollow cylindrical tubes made from aluminium alloys that offer excellent strength, corrosion resistance, and thermal conductivity. They are widely used in systems requiring weight reduction without sacrificing performance, such as aircraft fuel lines, irrigation systems, structural trusses, and compressed air systems.
Due to their ease of fabrication, low density, and recyclability, aluminium pipes are a cost-effective and environmentally friendly solution for many engineering applications.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
High Strength-to-Weight Ratio
Excellent Resistance to Rust, Saltwater, and Weathering
Good Thermal and Electrical Conductivity
Easy to Machine, Weld, and Bend
Non-Magnetic, Non-Toxic, and Recyclable
Available in Seamless & Welded Variants with Tight Tolerances
Grades
- 1050 / 1060 / 1100 Aluminium Pipes
- 3003 / 5083 Aluminium Pipes
- 6061 / 6082 Aluminium Pipes
- 2024 / 7075 Aluminium Pipes
Specification
| Property | Details |
|---|---|
| Product | Aluminium Pipe |
| Grades Available | 1050, 1060, 1100, 6061, 6082, 5083, 7075, 2024 |
| Standards | ASTM B241, B429, EN 755, AMS 4082, ISO 6361 |
| Outside Diameter (OD) Range | 6 mm to 400 mm |
| Wall Thickness Range | 1 mm to 20 mm |
| Length Range | Up to 12 meters (custom cuts available) |
| Pipe Types | Seamless, Welded, Extruded |
| Tempers Available | O, T5, T6, T651, H112 |
| Surface Finishes | Mill Finish, Anodized, Powder Coated, Brushed |
| Certification | EN 10204 3.1/3.2, ISO, ASTM, RoHS, DNV |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Aluminium (Al) | Balance |
| Magnesium (Mg) | 0.8 – 1.2 |
| Silicon (Si) | 0.4 – 0.8 |
| Iron (Fe) | ≤ 0.7 |
| Copper (Cu) | 0.15 – 0.40 |
| Chromium (Cr) | 0.04 – 0.35 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 290 MPa |
| Yield Strength | ≥ 240 MPa |
| Elongation | ≥ 10% |
| Hardness | ~95 HB |
| Density | 2.70 g/cm³ |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | 6061, 6082 |
| EN | AW-6061, AW-6082 |
| UNS | A96061, A96082 |
| ISO | AlMgSi1 |
Weight
| OD (mm) | Wall Thickness (mm) | Weight per Meter (kg) | Weight per 3 m (kg) |
|---|---|---|---|
| 20 | 2.0 | 0.31 | 0.93 |
| 25 | 2.5 | 0.47 | 1.41 |
| 32 | 2.5 | 0.62 | 1.86 |
| 40 | 3.0 | 0.88 | 2.64 |
| 50 | 3.0 | 1.12 | 3.36 |
| 63.5 | 3.5 | 1.61 | 4.83 |
| 76.2 | 4.0 | 2.27 | 6.81 |
Applications
Automotive Industry: Exhaust systems, suspension arms, fluid transfer lines
Aerospace: Hydraulic tubes, fuel systems, control lines
Construction: Scaffolding, handrails, building frameworks
Marine & Offshore: Saltwater lines, deck structures, marine railings
HVAC & Refrigeration: Heat exchangers, evaporator coils, compressed air lines
Agriculture & Irrigation: Lightweight yet durable irrigation pipes
Benefits
Rust-Proof and Weather-Resistant for Outdoor and Marine Use
Lighter than Steel – Easier to Handle and Install
Long Service Life with Minimal Maintenance
Excellent Heat Dissipation for HVAC and Fluid Systems
Fully Recyclable and Environmentally Friendly
Custom-Fabricated for Your Project Specifications
