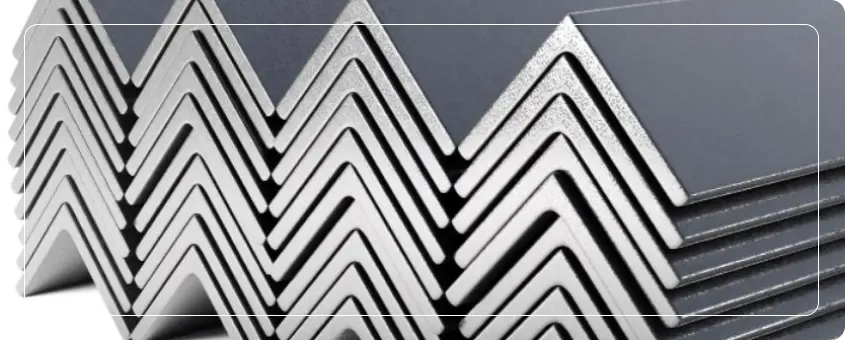

Angles
Stellanox offers precision-engineered Angles designed for robust structural and support applications across construction, engineering, energy, transportation, and industrial sectors. Manufactured with dimensional accuracy and high load-bearing capacity, our angles are suited for both standard and custom fabrication requirements.
We supply equal and unequal angles in various sizes, thicknesses, and lengths. These structural components are available in mill finish or with protective coatings, and conform to international standards including ASTM, DIN, ISO, BS, and ANSI.

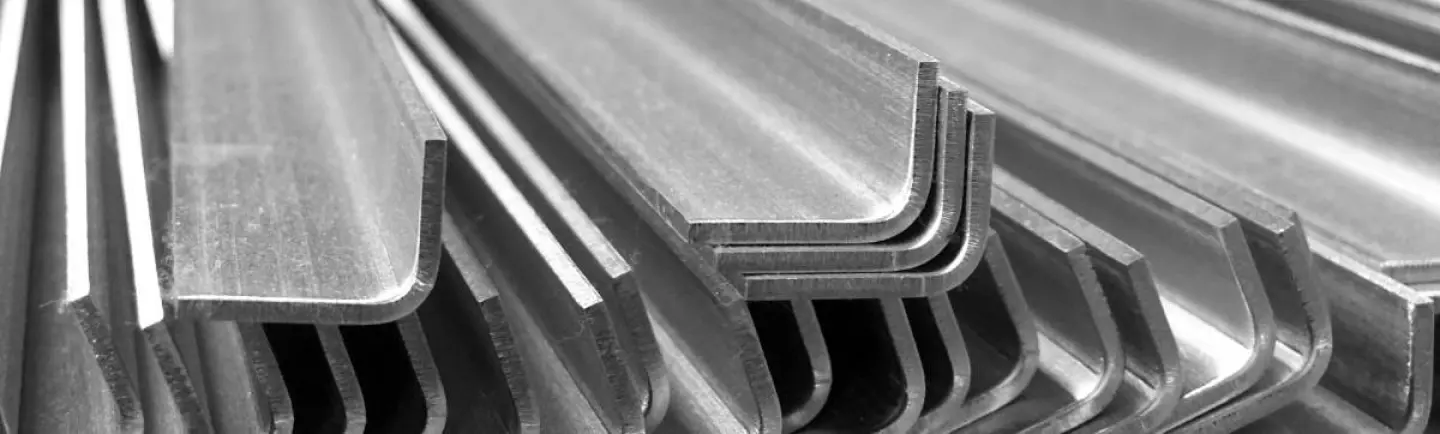

What are Angles?
Angles are L-shaped structural profiles used to provide stability, support, and reinforcement in structural frameworks. These profiles are vital in load-bearing applications, frameworks, brackets, and cross-members. Their geometry allows for efficient distribution of stress and resistance against bending and torsion.
Stellanox angles are available in multiple configurations—equal, unequal, slotted, or custom—with surface finishes for additional protection and enhanced longevity.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features of Angles
- High Strength-to-Weight Ratio
- Excellent Load Distribution
- Available in Equal & Unequal Configurations
- Versatile in Fabrication & Assembly
- Surface Finishes Include Mill, Painted, Galvanized, or Coated
- Complies with ASTM, ISO, BS, DIN, and ANSI Standards
Grade of Angles
Specification Chart – Angles
| Property | Details |
|---|---|
| Types Available | Equal Angles, Unequal Angles, Slotted Angles |
| Sizes | 20×20 mm to 200×200 mm / ¾” to 8” |
| Thickness Range | 3 mm to 20 mm |
| Lengths | Up to 12 meters or custom lengths |
| Surface Finishes | Mill Finish, Galvanized, Painted, Powder-Coated |
| Manufacturing Standards | ASTM A36, DIN EN 10056, ISO 657, BS 4848, ANSI |
| Certifications | EN 10204 3.1/3.2, ISO 9001, CE, Project-Specific Docs |
Types of Angles – Comparative Overview
| Type | Description | Common Uses |
|---|---|---|
| Equal Angle | Both legs (sides) of the angle have equal length, forming a symmetrical “L”. | Structural frames, brackets, supports, and edging. |
| Unequal Angle | Legs of different lengths; asymmetrical design provides directional support. | Reinforced corners, uneven load support, custom frames. |
| Slotted Angle | Features pre-punched slots for easy assembly and bolting. | Shelving, racking, storage frames, DIY fabrications. |
| Custom Angle | Fabricated to specific dimensions, angles, or with cutouts/holes as required. | Project-specific industrial and architectural use. |
Weight Chart – Equal Angles
| Size (mm × mm × mm) | Theoretical Weight (kg/m) | Size (mm × mm × mm) | Theoretical Weight (kg/m) |
|---|---|---|---|
| 25 × 25 × 3 | 1.13 | 75 × 75 × 8 | 8.94 |
| 40 × 40 × 5 | 3.00 | 100 × 100 × 6 | 8.98 |
| 50 × 50 × 6 | 4.48 | 120 × 120 × 10 | 17.78 |
| 65 × 65 × 5 | 5.88 | 150 × 150 × 12 | 26.98 |
Applications of Angles
- Structural Frameworks in Construction
- Support Systems in Machinery & Equipment
- Framing for Panels, Gates, and Platforms
- Reinforcement in Storage Racks & Shelving
- Bracing & Mounting in Industrial Installations
- Custom Assemblies for Transport & Infrastructure
Benefits of Angles
- High Structural Efficiency and Reliability
- Flexible for Cutting, Welding, and Assembly
- Custom Lengths, Drilling & Machining Options Available
- Surface Treatment for Extended Service Life
- Meets Global Engineering & Architectural Codes
- Ready Inventory and Project-Based Supply
Frequently Asked Questions
Yes. We offer both types in multiple dimensions with customization available.
