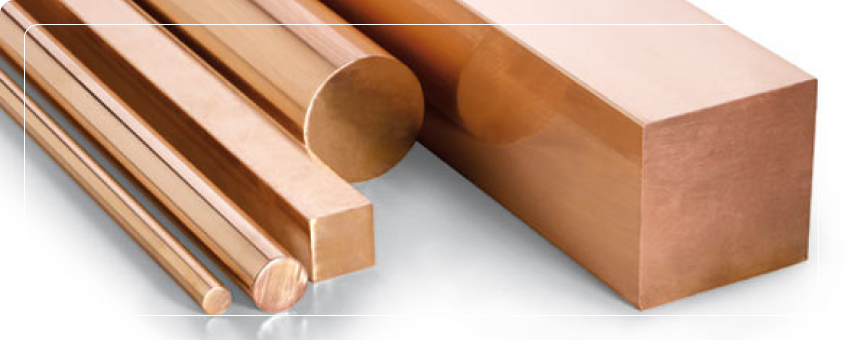

Copper Bar
Stellanox Steel is a reliable supplier of premium-grade Copper Bars, widely used in electrical transmission, busbars, earth systems, switchgear components, and industrial fabrication. We offer copper bars in various profiles including flat bar, round bar, square bar, and hex bar, crafted from high-conductivity grades like C11000 (ETP Copper), C10100 (OFHC Copper), and C12200 (DHP Copper).
Copper bars are known for their superior electrical and thermal conductivity, machinability, and corrosion resistance, making them indispensable in power, electronic, marine, and automotive industries.
What are Copper Bars?
Copper Bars are solid, straight lengths of copper in different shapes, used where maximum conductivity, mechanical strength, and surface finish are essential. These bars serve as the backbone of electrical systems, and are ideal for power distribution units, welding terminals, heavy-duty connectors, and earthing systems.
We provide copper bars in drawn, rolled, or extruded forms and soft to hard tempers, with options for tinning, polishing, and custom machining.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
Superior Electrical & Thermal Conductivity
Available in Round, Square, Flat & Hex Shapes
Excellent Machinability and Solderability
Anti-Corrosive & Antimicrobial
Available in Bare, Tinned, and Coated Finishes
Meets ASTM, EN, ISO, and BIS Standards
Grades
- C10100 / C10200 Copper Bars
- C11000 / C12200 Copper Bars
- C14500 (Tellurium) Copper Bars
Specification
| Property | Details |
|---|---|
| Product | Copper Bar |
| Grades Available | C11000 (ETP), C10100 (OFHC), C12200 (DHP), C14500 (Tellurium) |
| Shapes Available | Flat, Round, Square, Hexagonal |
| Size Range (Flat Bar) | Width: 10 mm – 250 mm; Thickness: 3 mm – 50 mm |
| Size Range (Round Bar) | Diameter: 4 mm – 200 mm |
| Length Range | Up to 6 meters (custom cuts available) |
| Tempers | O (Annealed), H02, H04, H08 |
| Finishes | Mill Finish, Bright, Tinned, Polished |
| Standards | ASTM B187, B124, EN 13601, ISO 1634, BIS 191 |
| Certification | EN 10204 3.1/3.2, RoHS, REACH, CE, ISO |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Copper (Cu) | ≥ 99.90 |
| Oxygen (O) | ≤ 0.04 |
| Impurities | ≤ 0.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ~210 MPa |
| Yield Strength | ~70 MPa |
| Elongation | ≥ 30% |
| Hardness | ~60 HRB |
| Conductivity | ~100% IACS |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | C11000, C10100 |
| EN | CW004A, CW008A |
| ISO | Cu-ETP, Cu-OF |
| BIS (India) | Cu-ETP, Cu-DLP |
Weight
| Diameter (mm) | Weight per Meter (kg) | Weight per 3 m (kg) | Weight per 6 m (kg) |
|---|---|---|---|
| 6 | 0.25 | 0.75 | 1.50 |
| 8 | 0.44 | 1.32 | 2.64 |
| 10 | 0.69 | 2.07 | 4.14 |
| 12 | 1.00 | 3.00 | 6.00 |
| 16 | 1.77 | 5.31 | 10.62 |
| 20 | 2.76 | 8.28 | 16.56 |
| 25 | 4.32 | 12.96 | 25.92 |
| 30 | 6.22 | 18.66 | 37.32 |
| 40 | 10.98 | 32.94 | 65.88 |
| 50 | 17.27 | 51.81 | 103.62 |
Applications
Electrical Panels & Distribution Boards: Busbars, terminals, grounding links
Industrial Machines & Transformers: High-amp connections, rotors, stators
Renewable Energy Systems: Solar busbars, battery linkages
Construction & Infrastructure: Lightning protection, earthing plates
Automotive & Railways: Battery connectors, current carriers
Marine & Defense: Saltwater-resistant terminals, earth bonding systems
Benefits
Best Electrical and Thermal Conduction
Workable with Bending, Punching, or CNC Machining
Oxidation and Moisture Resistant
Non-Sparking and Non-Magnetic
Compliant with Global Electrical Standards
Available in Standard & Customized Profiles
