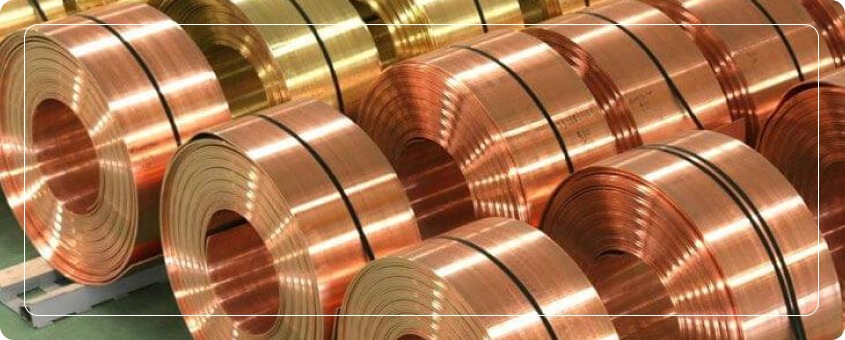

Copper Coil
Stellanox Steel offers premium-grade Copper Coils manufactured for applications requiring exceptional electrical and thermal conductivity, formability, and corrosion resistance. Our copper coils are precision-wound using high-purity copper such as C11000 (ETP Copper) and C12200 (DHP Copper), making them ideal for use in HVAC, electrical systems, heat exchangers, plumbing, and industrial manufacturing.
Copper coils are available in soft annealed, half-hard, and hard tempers, and in a wide range of widths, thicknesses, and inner diameters, with customizable edge and surface finishes.
What are Copper Coils?
Copper Coils are long, continuous strips of copper rolled into coils for ease of transportation, installation, and manufacturing processes. Their flexibility, workability, and excellent conductivity make them essential in applications such as refrigeration lines, air conditioners, transformers, solar panels, and roofing systems.
Coils can be easily cut, bent, brazed, or formed without losing mechanical or electrical properties.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
- High Electrical and Thermal Conductivity
- Flexible and Easy to Install or Form
- Excellent Resistance to Corrosion, Oxidation, and Moisture
- Available in Pancake, Level Wound, and Jumbo Coils
- Compatible with Soldering, Brazing, and Welding
- Meets ASTM, EN, BIS, and ISO Standards
Grades
- C10100 / C10200 Copper Coil
- C11000 / C12200 Copper Coil
Specification
| Property | Details |
|---|---|
| Product | Copper Coil |
| Grades Available | C11000 (ETP), C12200 (DHP), C10100 (Oxygen-Free) |
| Thickness Range | 0.3 mm to 6 mm |
| Width Range | 10 mm to 1000 mm |
| Coil ID / OD | ID: 200–500 mm / OD: up to 1500 mm |
| Coil Weight | Up to 3 tons (custom available) |
| Tempers | O (Annealed), H02 (Half-Hard), H04 (Full-Hard) |
| Edge Finish | Mill Edge, Slit Edge, Deburred Edge |
| Surface Finish | Bright, Oxide-Free, Tinned, Polished |
| Standards | ASTM B152, B68, EN 1652, ISO 1634, BIS 191 |
| Certification | EN 10204 3.1/3.2, RoHS, REACH, Third-Party Inspection |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Copper (Cu) | ≥ 99.90 |
| Phosphorus (P) | 0.015 – 0.040 |
| Impurities | ≤ 0.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ~210 MPa |
| Yield Strength | ~70 MPa |
| Elongation | ≥ 30% |
| Hardness | 50–60 HRB |
| Conductivity | ~97% IACS |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | C11000, C12200 |
| EN | CW004A, CW024A |
| ISO | Cu-ETP, Cu-DHP |
| BIS (India) | Cu-ETP, Cu-DLP |
Weight
| Thickness (mm) | Weight per m² (kg) | Weight per 2 m² (kg) | Weight per ft² (kg) |
|---|---|---|---|
| 0.3 | 2.68 | 5.36 | 0.25 |
| 0.4 | 3.58 | 7.16 | 0.33 |
| 0.5 | 4.47 | 8.94 | 0.42 |
| 0.6 | 5.36 | 10.72 | 0.50 |
| 0.7 | 6.26 | 12.52 | 0.58 |
| 0.8 | 7.15 | 14.30 | 0.66 |
| 0.9 | 8.04 | 16.08 | 0.75 |
| 1.0 | 8.94 | 17.88 | 0.83 |
| 1.2 | 10.73 | 21.46 | 1.00 |
| 1.5 | 13.41 | 26.82 | 1.25 |
| 2.0 | 17.88 | 35.76 | 1.66 |
| 2.5 | 22.35 | 44.70 | 2.08 |
| 3.0 | 26.82 | 53.64 | 2.49 |
| 4.0 | 35.76 | 71.52 | 3.32 |
| 5.0 | 44.70 | 89.40 | 4.15 |
| 6.0 | 53.64 | 107.28 | 4.98 |
Applications
- HVAC Systems: Condenser and evaporator coils, refrigerant lines
- Electrical Applications: Transformer windings, grounding, busbar strips
- Solar Panels: Thermal absorber coils and energy conduction loops
- Plumbing Systems: Piping, fittings, expansion loops
- Architecture: Flashings, roofing, decorative coil-based panels
- Manufacturing: Punch-formed washers, stamped components, electrical contacts
Benefits
- Superior Thermal & Electrical Conductivity
- Formable, Bendable, and Ideal for Long Runs
- Naturally Antibacterial & Non-Magnetic
- Corrosion Resistant in Indoor & Outdoor Environments
- Long Service Life with Minimal Maintenance
- Easy to Process, Join, and Recycle
