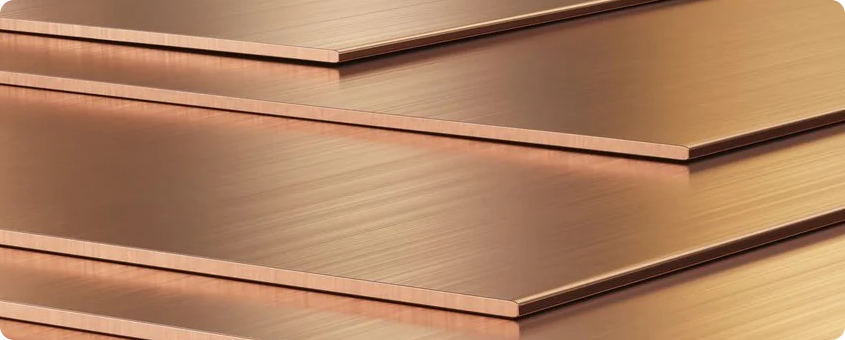

Copper Sheet
Stellanox Steel is a trusted supplier of high-quality Copper Sheets used in a wide range of industries where conductivity, durability, and corrosion resistance are critical. Manufactured from premium grades such as C11000 (ETP Copper), C12200 (DHP Copper), and C10100 (Oxygen-Free Copper), our sheets are precision rolled and available in various tempers, thicknesses, and finishes.
Copper sheets are widely utilized in electrical, decorative, architectural, HVAC, marine, and industrial engineering applications.
What are Copper Sheets?
Copper Sheets are flat-rolled metal products made from pure or alloyed copper. With excellent thermal and electrical conductivity, superior corrosion resistance, and natural antimicrobial properties, copper sheets are ideal for grounding systems, roofs and cladding, busbars, transformers, cooking equipment, and decorative design elements.
Our copper sheets are available in soft, half-hard, and full-hard tempers, with smooth or textured finishes to suit both functional and aesthetic use.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
- High Electrical and Thermal Conductivity
- Excellent Resistance to Weathering and Oxidation
- Antimicrobial and Non-Magnetic
- Easily Soldered, Braze-Welded, and Formed
- Aesthetic Appeal for Decorative and Architectural Projects
- Conforms to ASTM, EN, BIS, and ISO Standards
Grades
- C10100 / C10200 Copper Sheets
- C11000 / C12200 Copper Sheets
- C14500 Tellurium Copper Sheet
Specification
| Property | Details |
|---|---|
| Product | Copper Sheet |
| Grades Available | C11000 (ETP), C12200 (DHP), C10100 (Oxygen-Free), C14500 (Tellurium) |
| Thickness Range | 0.5 mm to 6 mm |
| Width Range | Up to 1500 mm |
| Length Range | Up to 6000 mm (custom sizes available) |
| Tempers | Soft (O), Half Hard (H02), Full Hard (H04), Spring Temper (H08) |
| Surface Finishes | Mill Finish, Bright, Brushed, Oxide-Free, Tinned |
| Manufacturing Standards | ASTM B152, EN 1652, ISO 1634, BIS 191 |
| Certification | EN 10204 3.1/3.2, ISO, RoHS, REACH, ASTM Compliant |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Copper (Cu) | ≥ 99.90 |
| Oxygen (O) | ≤ 0.04 |
| Impurities | ≤ 0.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ~210 MPa |
| Yield Strength | ~70 MPa |
| Elongation | ≥ 30% |
| Hardness | 50–60 HRB |
| Conductivity | ~100% IACS |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | C11000 |
| EN | CW004A |
| ISO | Cu-ETP |
| BIS (India) | Cu-ETP, Cu-DLP |
Weight
| Thickness (mm) | Weight per m² (kg) | Weight per 2 m² (kg) | Weight per ft² (kg) |
|---|---|---|---|
| 0.5 | 4.47 | 8.94 | 0.42 |
| 1.0 | 8.94 | 17.88 | 0.83 |
| 1.5 | 13.41 | 26.82 | 1.25 |
| 2.0 | 17.88 | 35.76 | 1.66 |
| 2.5 | 22.35 | 44.70 | 2.08 |
| 3.0 | 26.82 | 53.64 | 2.49 |
| 4.0 | 35.76 | 71.52 | 3.32 |
| 5.0 | 44.70 | 89.40 | 4.15 |
Applications
- Electrical Industry: Grounding sheets, lightning arrestors, PCB panels
- HVAC & Refrigeration: Heat exchanger plates, evaporator covers
- Architecture & Roofing: Cladding, facades, domes, decorative panels
- Food Processing & Kitchenware: Cookware lining, countertops, splashbacks
- Art & Sculpture: Metal art, engraving bases, antique finishes
- Industrial Engineering: RF shielding, transformer laminations, tooling
Benefits
- Unmatched Electrical and Thermal Conductivity
- Antimicrobial & Hygienic for Healthcare and Culinary Environments
- Naturally Oxidizes into Aesthetic Patinas
- Corrosion-Resistant in Coastal & Urban Environments
- Eco-Friendly – 100% Recyclable Without Performance Loss
- Available in Custom Dimensions, Tempers, and Finishes
