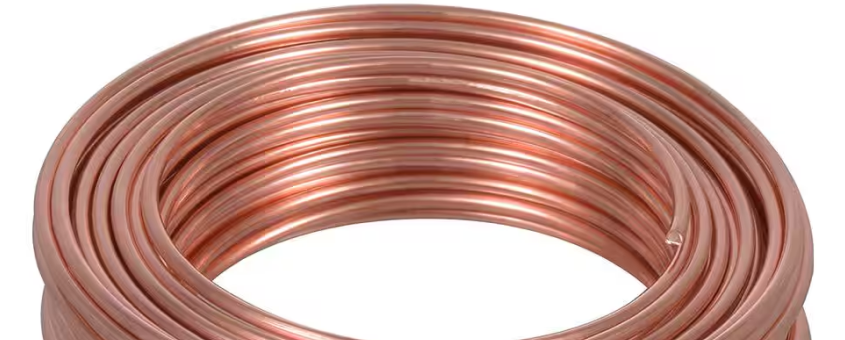

Copper Wire
Stellanox Steel offers high-purity, high-performance Copper Wire used across electrical, automotive, power generation, telecommunications, electronics, and welding industries. Manufactured using C11000 (ETP Copper) and C10100 (Oxygen-Free Copper), our wires offer exceptional conductivity, flexibility, and durability, and are available in bare, tinned, stranded, braided, and enameled formats.
With guaranteed dimensional accuracy, low resistance, and custom spool packaging, our copper wires meet global electrical and mechanical requirements.
What are Copper Wire?
Copper Wire is a slender, cylindrical form of copper used to conduct electricity and heat in almost every industrial and residential application. Known for its excellent ductility, resistance to fatigue, and thermal stability, copper wire is preferred over other metals for power transmission, grounding, coiling, winding, and signal transfer.
Copper wires come in solid or stranded types, and in soft annealed or hard-drawn tempers, depending on the application.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
Excellent Electrical Conductivity (~100% IACS)
High Flexibility and Ductility
Available in Bare, Tinned, Braided, and Enameled Formats
Non-Magnetic, Non-Sparking, and Antibacterial
Corrosion and Oxidation Resistant
Meets ASTM, EN, BIS, and ISO Standards
Grades
- C10100 / C10200 Copper Wires
- C11000 / C12200 Copper Wires
Specification
| Property | Details |
|---|---|
| Product | Copper Wire |
| Grades Available | C11000 (ETP), C10100 (OFHC), C10200, C12000 |
| Diameter Range | 0.1 mm to 16 mm |
| Types | Solid, Stranded, Braided, Flat, Enameled, Tinned |
| Tempers | Annealed (Soft), Hard Drawn, Spring Temper |
| Coil / Spool Sizes | Up to 500 kg (custom packaging on request) |
| Surface Finishes | Bare, Bright, Oxide-Free, Tinned, Varnished |
| Standards | ASTM B3, B33, B8, EN 13602, ISO 1634 |
| Certification | EN 10204 3.1/3.2, RoHS, CE, BIS, UL, ISI |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Copper (Cu) | ≥ 99.90 |
| Oxygen (O) | ≤ 0.04 |
| Impurities | ≤ 0.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 200–250 MPa |
| Elongation | ≥ 25% |
| Conductivity | ≥ 100% IACS |
| Hardness | 45–65 HV |
| Density | 8.89 g/cm³ |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | C11000, C10100 |
| EN | CW004A, CW008A |
| ISO | Cu-ETP, Cu-OF |
| BIS (India) | Cu-ETP, Cu-OF |
Weight
| Diameter (mm) | Weight per 1000 m (kg) | Weight per 500 m (kg) | Weight per 100 m (kg) |
|---|---|---|---|
| 0.5 | 1.41 | 0.71 | 0.14 |
| 1.0 | 5.64 | 2.82 | 0.56 |
| 1.5 | 12.69 | 6.35 | 1.27 |
| 2.0 | 22.56 | 11.28 | 2.26 |
| 2.5 | 35.25 | 17.63 | 3.53 |
| 3.0 | 50.76 | 25.38 | 5.08 |
| 4.0 | 90.24 | 45.12 | 9.02 |
| 5.0 | 141.00 | 70.50 | 14.10 |
Applications
Power & Electrical Systems: Cables, switchgear, circuit wiring, earthing
Automotive & Transportation: Harnesses, battery connectors, EV busbars
Telecommunications: Signal transmission, internet and data cables
Appliances & Electronics: Motor windings, PCB traces, internal wiring
Welding & Brazing: Electrodes, contact wires
Renewables & Energy: Solar connectors, battery module conductors
Benefits
Maximum Conductivity for Energy Efficiency
Flexible, Durable, and Easy to Terminate
Available in Spools, Coils, and Pre-cut Lengths
Flame Retardant and Safe for Critical Installations
Environmentally Friendly – 100% Recyclable
Certified for Global Electrical, Thermal, and Safety Standards
