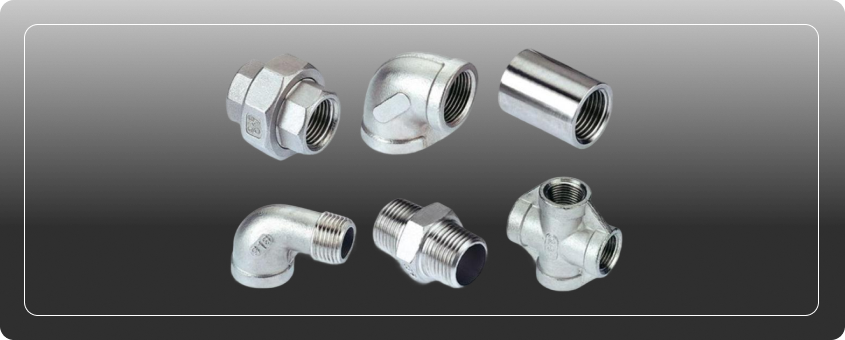

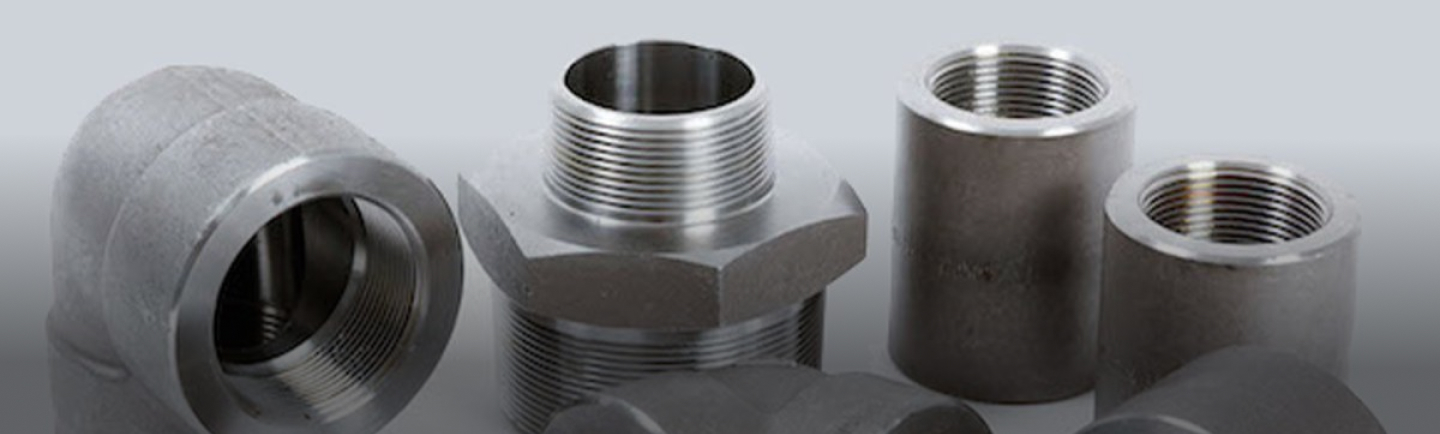

Inconel Forged Fittings
At Stellanox Steel, we supply a full range of Inconel Forged Fittings built to perform in high-pressure, high-temperature, and severely corrosive environments. Manufactured from top-grade alloys like Inconel 600, 625, 718, and X-750, these fittings provide secure, leak-free connections in demanding applications such as chemical processing, marine systems, aerospace, oil & gas, and nuclear energy.
Available in threaded (NPT/BSP) and socket weld ends, our Inconel forged fittings meet all international specifications including ASME B16.11, MSS SP-83, and ASTM B564.
What are Inconel Forged Fittings?
Inconel Forged Fittings are precision-machined components used to connect pipes in small-diameter, high-pressure systems. Produced through hot forging and controlled machining, these fittings exhibit superior grain uniformity, enhanced mechanical properties, and exceptional resistance to oxidation, acids, and chlorides — especially under cyclic thermal and chemical stress.
Forged fittings are ideal for critical connections in compact assemblies or confined layouts, such as pumps, valves, tanks, and reactors.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
High Mechanical Strength with Dense Grain Structure
Outstanding Resistance to Heat, Pressure, and Corrosion
Available in Socket Weld and Threaded End Types
Excellent Thermal Fatigue and Stress Rupture Resistance
Precisely Machined for Leak-Free Connections
Complies with ASME, ASTM, MSS, and NACE Standards
Grades
- Inconel 600 / 601 Forged Fittings
- Inconel 625 / 718 Forged Fittings
- Inconel X-750 Forged Fittings
Specification
| Property | Details |
|---|---|
| Product | Inconel Forged Fittings |
| Grades Available | Inconel 600, 601, 625, 718, X-750 |
| Connection Types | Threaded (NPT/BSP), Socket Weld |
| Sizes | 1/8" to 4" (DN6 to DN100) |
| Pressure Ratings | 2000#, 3000#, 6000#, 9000# |
| Types Available | Elbows (90°/45°), Tees, Couplings, Unions, Caps, Bushings, Plugs |
| Standards | ASME B16.11, MSS SP-79/83/95, ASTM B564 |
| Heat Treatment | Solution Annealed, Pickled, Cold Worked |
| Certification | EN 10204 3.1/3.2, PMI, NACE MR0175, Ultrasonic, IGC, Hydro Test |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | ≥ 72.0 |
| Chromium (Cr) | 14.0 – 17.0 |
| Iron (Fe) | 6.0 – 10.0 |
| Carbon (C) | ≤ 0.15 |
| Manganese (Mn) | ≤ 1.0 |
| Silicon (Si) | ≤ 0.5 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 655 MPa |
| Yield Strength | ≥ 310 MPa |
| Elongation | ≥ 30% |
| Hardness | ≤ 95 HRB |
| Density | 8.47 g/cm³ |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | B564 |
| UNS | N06600, N06625 |
| DIN / EN | 2.4816, 2.4856 |
| ISO | NiCr15Fe, NiCr22Mo9Nb |
Weight
| Fitting Type | Size (inches) | Approx. Weight (kg) | Common Application |
|---|---|---|---|
| Socket Weld Elbow | 1" | 0.37 | Changes direction in high-pressure Inconel systems |
| Socket Weld Tee | 1" | 0.49 | Creates a 90° branch for corrosive media |
| Socket Weld Cross | 1" | 0.65 | Joins four pipe sections in confined spaces |
| Threaded Coupling | 1" | 0.43 | Connects threaded Inconel pipes securely |
| Union (Threaded/SW) | 1" | 0.66 | Detachable joint for repair-heavy or rotating setups |
| Threaded Cap | 1" | 0.28 | Closes pipe ends in instrumentation or valve systems |
| Threaded Bushing | 1" × ¾" | 0.23 | Reduces pipe size in threaded connections |
Applications
Chemical Reactors & Acid Transfer Lines
Marine Systems & Offshore Platforms
High-Pressure Pumps & Heat Exchanger Lines
Aerospace Fuel and Combustion Lines
Power & Nuclear Plants: Boiler Connections, Feedwater Systems
Cryogenic and High-Temperature Pipelines
Benefits
Leak-Proof Under Thermal Expansion and Contraction
Performs in Seawater, Acids, and High-Temperature Steam
Reduces Downtime with Long Service Life
Compatible with Hazardous, Pressurized Systems
Low Maintenance and Globally Certified
