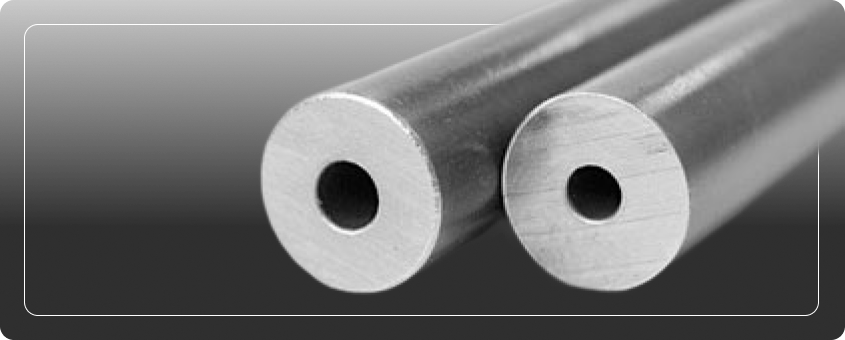

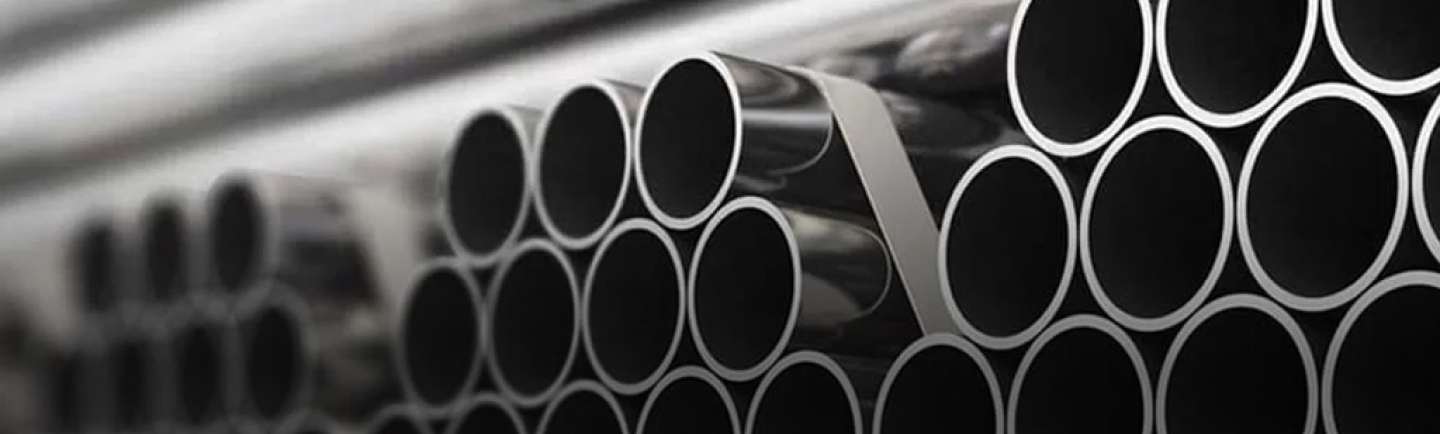

Inconel Tube
Precision-grade Inconel tubes designed to endure high temperatures, mechanical strain, and corrosive conditions are produced and supplied by Stellanox Steel. These tubes, which are made of high-performance nickel-based alloys such as Inconel 600, 625, 718, and X-750, are intended for use in heat exchanger systems, high-temperature fluid transfer, and critical pressure applications in the nuclear, petrochemical, maritime, and aerospace sectors.
Our Inconel tubes satisfy the strictest international standards and are offered in seamless, welded, coiled, and U-bend configurations.
What are Inconel Tubes?
Inconel tubes are hollow, cylindrical metal objects derived from superalloys based on nickel and chromium. These tubes work particularly effectively in procedures that include a lot of chemicals, intense heat, and high pressure. Inconel tubing is used in nuclear reactors, jet engines, heat exchangers, and chemical reactors where failure is not an option because of its remarkable resistance to oxidation, crevice corrosion, and stress rupture.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
- Superior Oxidation and Corrosion Resistance at Elevated Temperatures
- High Tensile and Creep Strength
- Excellent Resistance to Chlorides, Acids, and Saline Media
- Available in Seamless, Welded, U-Bend & Coiled Forms
- Ideal for High-Stress, High-Fatigue Environments
- Certified to ASTM, ASME, DIN, EN, and NACE Standards
Grades
- Inconel 600 / 601 Tube
- Inconel 625 / 718 Tube
- Inconel X-750 Tube
Specification
| Property | Details |
|---|---|
| Product | Inconel Tube |
| Grades Available | 600, 601, 625, 718, X-750 |
| Manufacturing Standards | ASTM B163, B167, B444, B516, B751, ASME SB Series |
| Tube Types | Seamless, Welded, Coiled, U-Bend, Annealed |
| Outer Diameter Range | 6 mm to 101.6 mm (1/4" to 4") |
| Wall Thickness | 0.5 mm to 12.5 mm |
| Length Range | 1 meter to 12 meters (custom cut available) |
| Surface Finish | Bright Annealed, Pickled, Polished, Satin |
| Testing & Certification | EN 10204 3.1/3.2, Hydrostatic, Eddy Current, PMI, UT, NACE MR0175 |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | ≥ 58.0 |
| Chromium (Cr) | 20.0 – 23.0 |
| Molybdenum | 8.0 – 10.0 |
| Niobium (Nb) | 3.15 – 4.15 |
| Iron (Fe) | ≤ 5.0 |
| Carbon (C) | ≤ 0.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 827 MPa |
| Yield Strength | ≥ 414 MPa |
| Elongation | ≥ 30% |
| Hardness | ≤ 220 HB |
| Density | ~8.44 g/cm³ |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | B163, B444 |
| UNS | N06600, N06625 |
| DIN / EN | 2.4816, 2.4856 |
| ISO | NiCr15Fe, NiCr22Mo9Nb |
Weight
| OD (mm) | Wall Thickness (mm) | Weight per Meter (kg) | Weight per 6 m (kg) |
|---|---|---|---|
| 6.0 | 1.0 | 0.13 | 0.78 |
| 8.0 | 1.0 | 0.18 | 1.08 |
| 10.0 | 1.0 | 0.23 | 1.38 |
| 12.7 | 1.2 | 0.33 | 1.98 |
| 15.0 | 1.5 | 0.45 | 2.70 |
| 19.05 | 1.5 | 0.58 | 3.48 |
| 25.4 | 2.0 | 0.89 | 5.34 |
| 32.0 | 2.5 | 1.32 | 7.92 |
| 38.1 | 2.5 | 1.60 | 9.60 |
| 50.8 | 3.0 | 2.61 | 15.66 |
Applications
- Aerospace & Aviation: Hydraulic lines, exhaust systems, turbine cooling channels
- Chemical Processing Plants: Acidic and corrosive fluid transport systems
- Power & Nuclear Plants: Steam generators, reactor cooling, heat transfer tubes
- Marine Systems: Seawater desalination, offshore risers, heat exchangers
- Gas & Oil Industry: Sour gas handling, downhole tubing, cryogenic lines
- Heat Treatment & Furnace Equipment: Radiant tubes, muffle tubes, burner systems
Benefits
- Reliable in Extreme Heat and Chemical Exposure
- Non-Magnetic and Resistant to Thermal Shock
- Minimizes Downtime in Aggressive Environments
- High Structural Integrity Under Pressure
- Precision Fit for Instrumentation and Heat Exchangers
- Certified for Global Critical Service Applications
