Lap Joint Flanges
Stellanox Steel offers top-quality Lap Joint Flanges (LJ Flanges) designed for non-permanent, easily detachable piping systems where alignment flexibility and corrosion resistance are essential. These flanges are commonly paired with stub ends and are ideal for low-pressure applications in chemical processing, water treatment, food & beverage, marine, and pharmaceutical industries.
Manufactured from materials such as Stainless Steel, Carbon Steel, Alloy Steel, Copper Nickel, Monel, Inconel, Hastelloy, and Titanium, our lap joint flanges conform to ASME B16.5, ASME B16.47, DIN, EN 1092-1, and ISO standards.
What are Lap Joint Flanges?

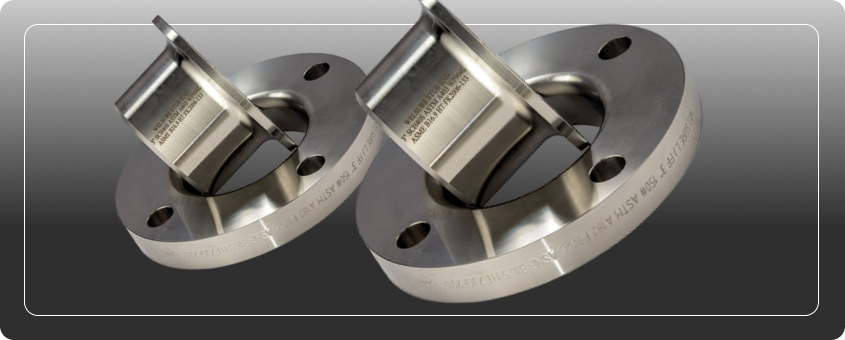

Lap Joint Flanges are two-piece components consisting of a loose backing flange and a butt-welded stub end. The flange rotates freely around the stub end, making it ideal for applications requiring frequent disassembly, alignment, or cleaning. Since the flange doesn’t come into contact with the fluid directly, it can be made from less expensive material while using a corrosion-resistant stub end.
These flanges are often used in systems with space constraints, corrosive fluids, or non-aligned connections.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
Detachable and Reusable for Easy Maintenance
Allows Precise Bolt Hole Alignment
Cost-Effective – Uses Exotic Alloy Only in Stub End
Ideal for Non-Critical, Low-Pressure Systems
Compatible with Raised Face & Flat Face Stub Ends
ASME, EN, DIN, ISO, and BS Certified
Specification
| Property | Details |
|---|---|
| Sizes Available | ½” NB to 60” NB (DN15 – DN1500) |
| Pressure Ratings | Class 150, 300, 600 |
| Flange Movement | Rotatable around the stub end |
| Compatible Fittings | Stub End (Short & Long Pattern) |
| Face Types | Typically Flat Face (FF), optional RF |
| Materials | CS A105, SS 304/316, Alloy Steel, Cu-Ni, Monel, Inconel, Titanium |
| Standards | ASME B16.5, B16.47, DIN 2641/2642, EN 1092-1, ISO 7005 |
| Certification | EN 10204 3.1/3.2, PED, NACE MR0175, ISO, CE, IBR |
Materials Grades
| Material | Grades |
|---|---|
| Stainless Steel | 304, 304L, 316, 316L |
| Carbon Steel | A105, A350 LF2 |
| Copper Alloys | Cu-Ni 70/30, Brass |
| Nickel Alloys | Monel 400, Inconel 625 |
| Titanium | Grade 2, Grade 5 |
Weight
| Size (inches) | Approx. Weight (kg) | Pressure Class | Standard |
|---|---|---|---|
| 2" | 3.10 | 300# | ANSI B16.5 |
| 4" | 6.80 | 300# | ANSI B16.5 |
| 6" | 12.30 | 300# | ANSI B16.5 |
| 8" | 20.80 | 300# | ANSI B16.5 |
| 10" | 32.10 | 300# | ANSI B16.5 |
Applications
Water Treatment Plants: Chlorine lines, filter outlets
Food & Beverage Processing: Sanitary, cleanable piping joints
Chemical Industries: Where corrosion-resistant stub ends are essential
Marine Systems: Saltwater lines with copper-nickel stub ends
Pharmaceutical & Bioengineering: Sterile systems with frequent inspection needs
Pipeline Systems with Misalignment: Where precise bolt alignment is required
Benefits
Reduced Material Cost for Corrosive Applications
Easily Removable for Inspection and Cleaning
Accommodates Misalignment in Bolt Patterns
Re-usable for Systems with Frequent Maintenance
Allows Use of Dissimilar Metals for Process Compatibility
Ideal for Low-Pressure, Non-Critical, and Hygienic Systems
