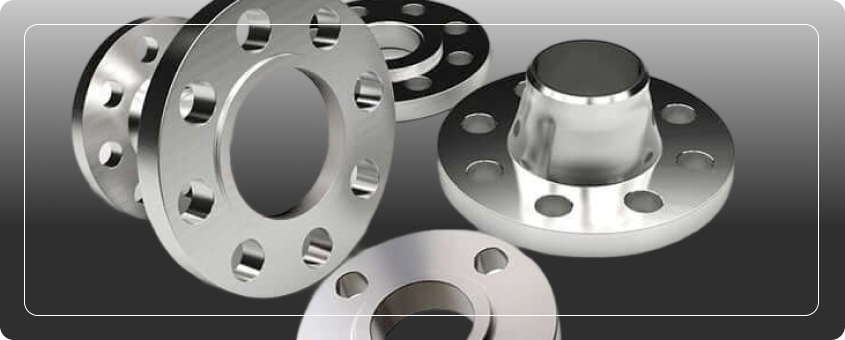

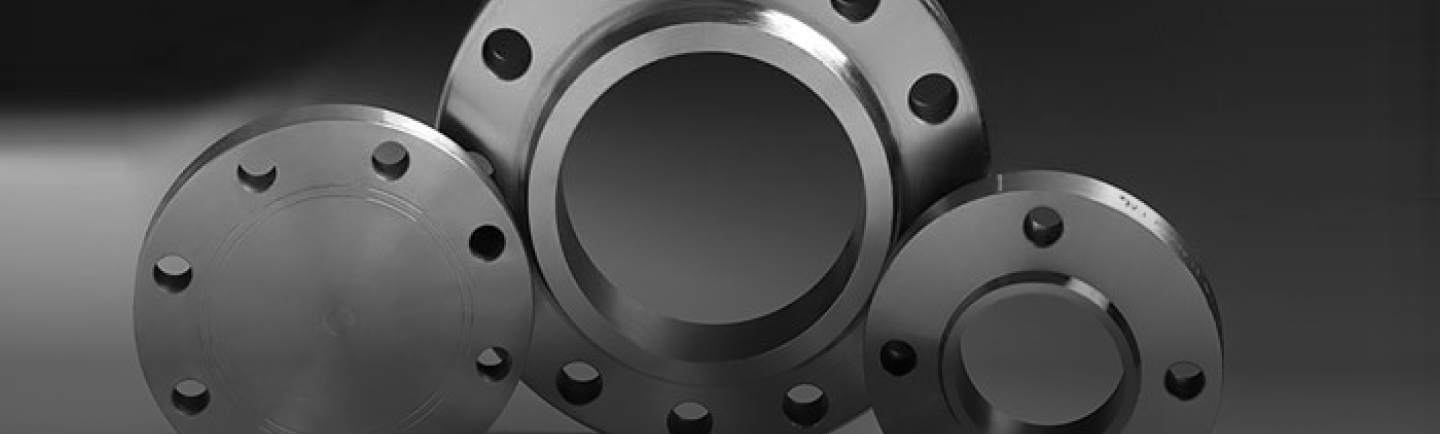

Nickel Flange
Stellanox Steel manufactures and supplies high-performance Nickel Flanges designed for corrosive, high-temperature, and high-pressure environments. Engineered from premium grades such as Nickel 200 (UNS N02200) and Nickel 201 (UNS N02201), our nickel flanges offer exceptional chemical resistance, thermal stability, and dimensional accuracy—making them ideal for chemical plants, marine systems, power plants, aerospace, and nuclear applications.
Available in all standard and custom configurations—weld neck, socket weld, slip-on, blind, threaded, lap joint, and orifice—our flanges are compliant with ASME, ASTM B564, DIN, EN, and ISO specifications.
What are Nickel Flanges?
Nickel Flanges are circular connectors used to join piping, valves, pumps, and other equipment within piping systems. They are essential in industries where resistance to corrosion, long service life, and secure fluid/gas sealing are required. Nickel flanges provide excellent compatibility with aggressive chemicals, alkalis, and chloride-rich environments, while also offering superior mechanical strength and conductivity.
Both Nickel 200 (standard) and Nickel 201 (low-carbon) are widely used depending on the temperature and welding requirements of the system.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
Excellent Corrosion Resistance to Acids, Alkalis, and Saltwater
High Strength and Dimensional Stability at Elevated Temperatures
Available in All ANSI/ASME, DIN, and Custom Configurations
Non-Magnetic, Weldable, and Machinable
Ideal for High-Pressure and High-Purity Applications
ASTM B564, ASME B16.5/B16.47, ISO, and DIN Compliant
Specification
| Property | Details |
|---|---|
| Grades Available | Nickel 200 (N02200), Nickel 201 (N02201) |
| Types Available | Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint, Orifice |
| Pressure Ratings | Class 150 to Class 2500 |
| Sizes Available | ½” NB to 36” NB (DN15 – DN900) |
| Facing Types | RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint) |
| Standards | ASTM B564, ASME B16.5/B16.47, DIN 2573/2576, EN 1092-1, ISO |
| Connection Types | ANSI, DIN, JIS, BS, Custom Machined |
| Certification | EN 10204 3.1/3.2, ISO, NACE MR0175, PED, RoHS |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | ≥ 99.0 |
| Iron (Fe) | ≤ 0.4 |
| Copper (Cu) | ≤ 0.25 |
| Manganese (Mn) | ≤ 0.35 |
| Carbon (C) | ≤ 0.15 (200), ≤ 0.02 (201) |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 380 MPa |
| Yield Strength | ≥ 105 MPa |
| Elongation | ≥ 45% |
| Hardness | ~80 HB |
| Operating Temperature | Up to 600°C |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | B564 |
| DIN / EN | 2.4060 / 2.4061 |
| UNS | N02200 / N02201 |
| ISO | Ni99.2 / Ni99.6 |
Weight
| Flange Type | Size (inches) | Approx. Weight (kg) | Standard |
|---|---|---|---|
| Weld Neck Flange | 2" | 3.80 | ANSI B16.5 |
| Slip-On Flange | 4" | 6.40 | ANSI B16.5 |
| Blind Flange | 6" | 10.80 | ANSI B16.5 |
| Socket Weld Flange | 3" | 5.25 | ANSI B16.5 |
| Threaded Flange | 2" | 3.60 | ANSI B16.5 |
Applications
Chemical Processing Units: Acid tanks, alkali transfer lines, neutralizer reactors
Marine & Offshore Equipment: Saltwater pumps, ballast systems, desalination units
Power Plants & Nuclear Reactors: Pressure vessels, heat exchangers, containment units
Aerospace Systems: Engine coolant systems, fuel assemblies
Pulp & Paper Mills: Chlorine service lines, bleach handling systems
Pharma & Food Processing: High-purity transport lines, clean-in-place systems
Benefits
Long Lifespan in Harsh Chemical & Marine Environments
Maintains Sealing Integrity Under Thermal Stress
Available in ANSI, DIN, and Custom Profiles
Resists Scaling and Cracking at Elevated Temperatures
Ideal for Clean Systems – Food Grade, Medical, and Nuclear Compliant
Global Certifications and Full Material Traceability
