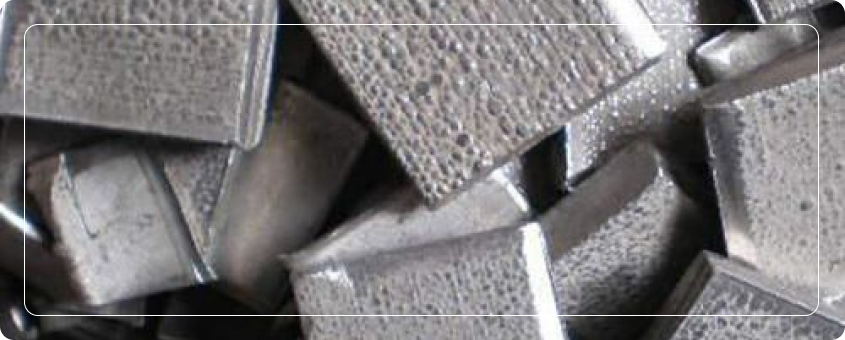

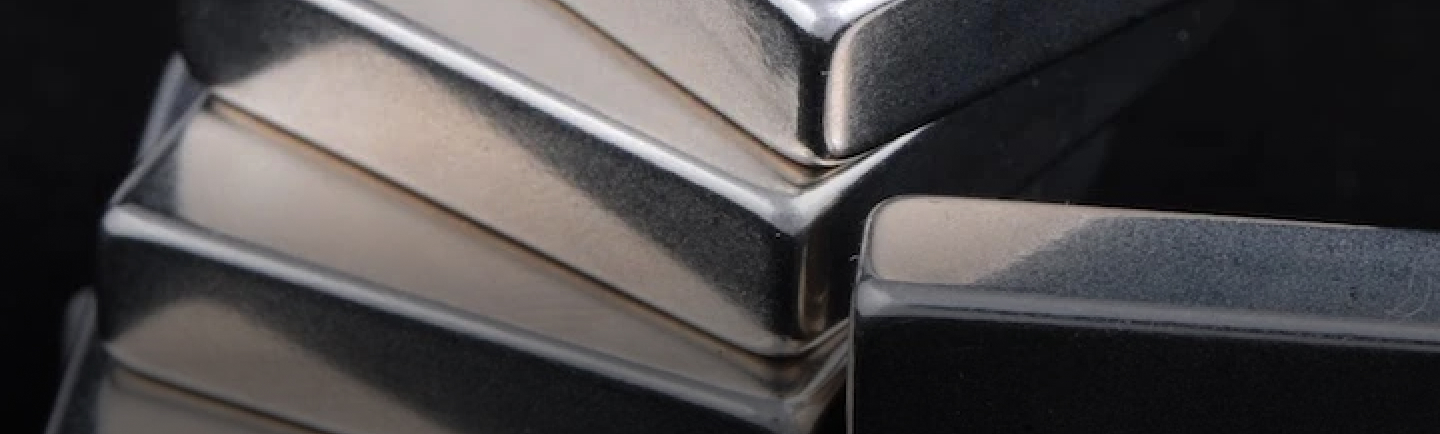

Nickel Plate
Stellanox Steel supplies premium-quality Nickel Plates engineered for exceptional resistance to chemical corrosion, oxidation, and extreme heat. Fabricated using high-purity Nickel 200 (UNS N02200) and Nickel 201 (UNS N02201), our plates are widely used in chemical processing, electronics, marine systems, power generation, and battery manufacturing.
Available in a wide range of thicknesses, tempers, and surface finishes, our nickel plates are produced to ASTM, ASME, DIN, and ISO specifications and meet the stringent demands of nuclear, aerospace, and high-performance manufacturing environments.
What are Nickel Plates?
Nickel Plates are thick, flat sheets made from pure nickel with ≥99% purity, offering outstanding mechanical strength, thermal conductivity, and corrosion resistance. They are ideal for environments where aggressive chemicals, high pressures, and intense heat are constant—such as alkali handling, caustic environments, and heat exchanger systems.
Nickel 200 is preferred for its versatility, while Nickel 201 is selected when low carbon content is critical to reduce embrittlement in high-temperature service.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
Outstanding Corrosion Resistance in Acids, Alkalis, and Salts
Excellent Ductility and Mechanical Strength
Maintains Integrity in Temperatures up to 600°C
Magnetostrictive and Electrically Conductive
Available in Cold-Rolled and Hot-Rolled Finishes
Conforms to ASTM B162, B160, and DIN Standards
Specification
| Property | Details |
|---|---|
| Product | Nickel Plate |
| Grades Available | Nickel 200 (N02200), Nickel 201 (N02201) |
| Purity | ≥ 99.6% Ni |
| Thickness Range | 3 mm to 50 mm |
| Width Range | Up to 1500 mm |
| Length Range | Up to 6000 mm (custom cut sizes available) |
| Tempers | Annealed (Soft), Cold Worked |
| Surface Finishes | Mill Finish, Pickled, Bright, Polished |
| Manufacturing Standards | ASTM B162, B160, ASME SB162, EN 10028, ISO 6208 |
| Certification | EN 10204 3.1/3.2, ISO, PED, NACE, RoHS, CE |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | ≥ 99.0 |
| Iron (Fe) | ≤ 0.4 |
| Manganese (Mn) | ≤ 0.35 |
| Copper (Cu) | ≤ 0.25 |
| Carbon (C) | ≤ 0.15 (200), ≤ 0.02 (201) |
Mechanical Properties
| Property | Value (Typical) |
|---|---|
| Tensile Strength | ≥ 380 MPa |
| Yield Strength | ≥ 105 MPa |
| Elongation | ≥ 45% |
| Hardness | ~80 HB |
| Melting Point | ~1453°C |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | Nickel 200, 201 |
| DIN/EN | 2.4060, 2.4061 |
| UNS | N02200, N02201 |
| ISO | Ni99.6, Ni99.2 |
Weight
| Thickness (mm) | Weight per m² (kg) | Weight per 2 m² (kg) | Weight per ft² (kg) |
|---|---|---|---|
| 3.0 | 26.50 | 53.00 | 2.46 |
| 4.0 | 35.33 | 70.66 | 3.28 |
| 5.0 | 44.16 | 88.32 | 4.11 |
| 6.0 | 52.99 | 105.98 | 4.93 |
| 8.0 | 70.65 | 141.30 | 6.58 |
| 10.0 | 88.31 | 176.62 | 8.23 |
| 12.0 | 105.97 | 211.94 | 9.88 |
Applications
Chemical Processing Plants: Reactor linings, caustic evaporators, acid vessels
Electronics & Batteries: Shielding plates, battery contacts, circuit protection
Aerospace Components: Fuel system plates, structural thermal insulation
Marine & Offshore: Saltwater-resistant cladding, condensers
Power Generation: Heat exchangers, turbine housings, nuclear containment
Medical & Food Industries: Non-reactive processing equipment, high-purity storage
Benefits
Exceptional Resistance to Corrosive Environments
Thermally Stable and Electrically Conductive
High Workability – Easy to Cut, Weld, or Machine
Non-Reactive – Suitable for High-Purity Applications
Globally Certified and Traceable with Full Documentation
Versatile for Use Across Industries and Environments
