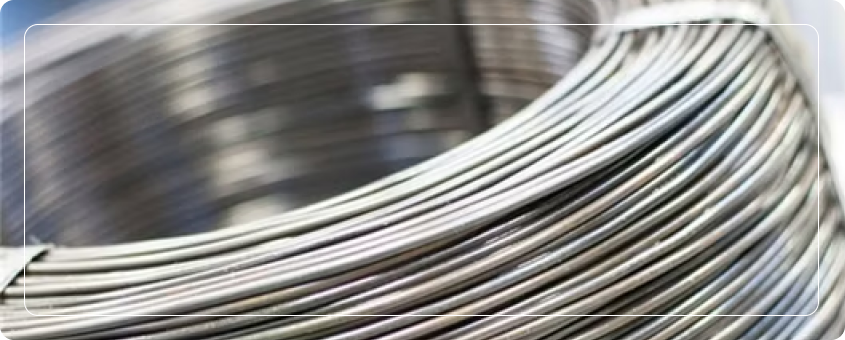

Nickel Wire
Stellanox Steel supplies high-purity Nickel Wire that delivers exceptional corrosion resistance, mechanical strength, and thermal/electrical conductivity. Manufactured from premium grades such as Nickel 200 (UNS N02200) and Nickel 201 (UNS N02201), our wires are widely used in electronics, battery systems, welding, aerospace, chemical processing, resistance heating, and marine industries.
Available in bare, annealed, hard-drawn, stranded, coiled, and spooled formats, our nickel wires meet stringent ASTM, ISO, DIN, and EN standards for high-performance applications.
What are Nickel Wires?
Nickel Wire is a thin, flexible metallic conductor made of commercially pure nickel used for high-temperature and high-corrosion environments. Thanks to its magnetic properties, excellent ductility, and stable resistance, nickel wire is ideal for use in heating elements, resistance wire, shielding, battery welding, thermocouples, and electromagnetic shielding applications.
Nickel 200 offers high conductivity and corrosion resistance, while Nickel 201—with its lower carbon content—is used for high-temperature service or welded assemblies.
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
Excellent Electrical & Thermal Conductivity
Superior Resistance to Acids, Alkalis & Chlorides
Stable in High-Temperature Applications
Magnetostrictive & Non-Sparking
Flexible, Ductile & Easily Weldable
Available in Custom Diameters, Coils & Packaging
Specification
| Property | Details |
|---|---|
| Grades Available | Nickel 200 (UNS N02200), Nickel 201 (UNS N02201) |
| Diameter Range | 0.025 mm to 8 mm |
| Forms Available | Spools, Coils, Straightened, Cut-to-Length, Stranded, Braided |
| Tempers | Soft Annealed, Hard Drawn, Spring Temper |
| Surface Finish | Bright, Matte, Oxide-Free, Tinned |
| Standards | ASTM B160, B164, B564, EN 12166, ISO 9723 |
| Packaging Options | Plastic spools, wooden reels, coils, or custom packaging |
| Certification | EN 10204 3.1/3.2, ISO, PED, RoHS, NACE, CE |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | ≥ 99.0 |
| Iron (Fe) | ≤ 0.4 |
| Copper (Cu) | ≤ 0.25 |
| Manganese (Mn) | ≤ 0.35 |
| Carbon (C) | ≤ 0.15 (200), ≤ 0.02 (201) |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 380 MPa |
| Yield Strength | ≥ 105 MPa |
| Elongation | ≥ 30–45% |
| Hardness | ~80 HB |
| Electrical Conductivity | ~22% IACS |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | B160, B164 |
| DIN / EN | 2.4060, 2.4061 |
| UNS | N02200 / N02201 |
| ISO | Ni99.2 / Ni99.6 |
Weight
| Diameter (mm) | Weight per 1000 m (kg) | Weight per 500 m (kg) | Weight per 100 m (kg) |
|---|---|---|---|
| 0.5 | 1.52 | 0.76 | 0.15 |
| 1.0 | 6.08 | 3.04 | 0.61 |
| 1.5 | 13.68 | 6.84 | 1.37 |
| 2.0 | 24.32 | 12.16 | 2.43 |
| 3.0 | 54.72 | 27.36 | 5.47 |
| 5.0 | 152.00 | 76.00 | 15.20 |
Applications
Battery & EV Manufacturing: Battery tab welding, battery interconnects, busbar wires
Electronics & Sensors: EMI shielding, thermocouples, electrical contacts
Heating & Resistance Systems: Resistance heating elements, wire wound resistors
Aerospace & Defense: Magnet wires, aerospace temperature sensors, igniters
Welding & Fabrication: TIG filler wires, electrodes, clad wire assemblies
Chemical & Marine Systems: Wire mesh for filtration and corrosion-resistant reinforcements
Benefits
Reliable Electrical Performance Even in Harsh Conditions
Highly Corrosion-Resistant in Marine, Chemical, and Industrial Use
Formable Into Complex Coils, Meshes, and Interconnects
Non-Sparking & Non-Magnetic — Ideal for Electronics & Aerospace
Long Service Life in High-Temperature Applications
Supplied in Bulk or Custom Cut Formats with Global Certifications
