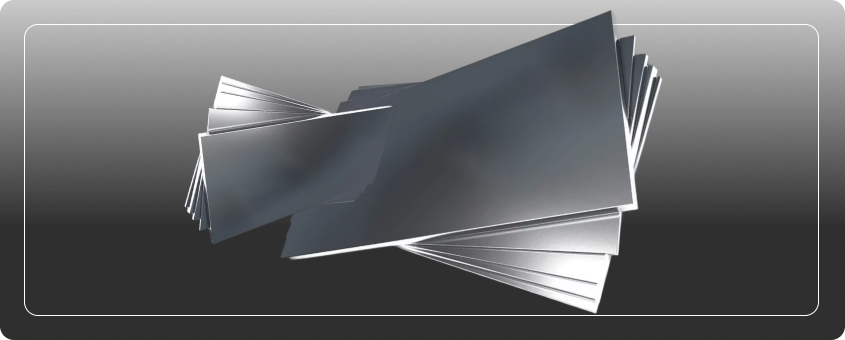

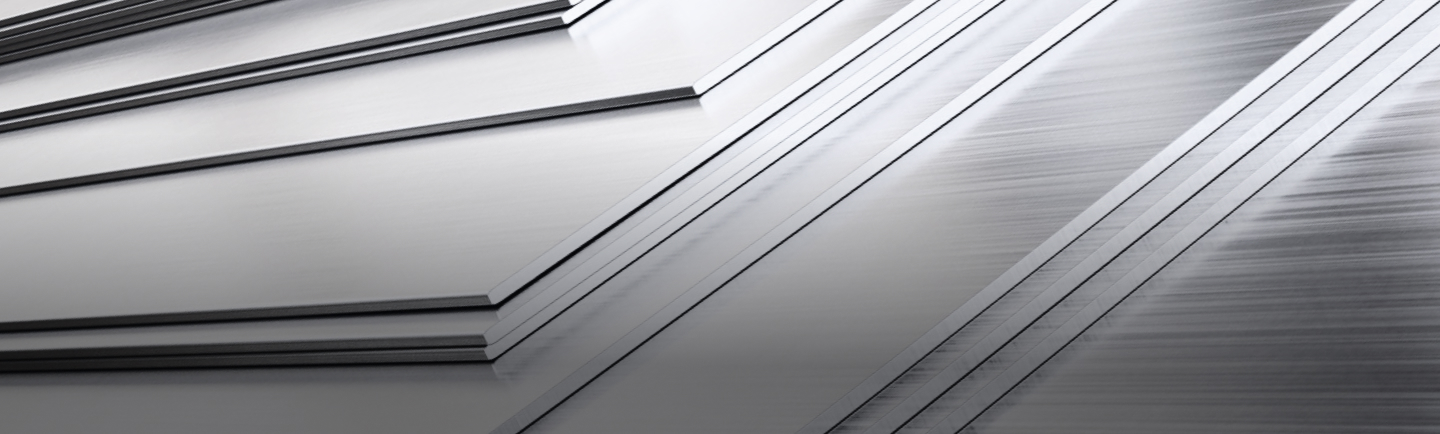

Titanium Plate
Titanium plates of the highest calibre are produced and supplied by Stellanox Steel for use in structural and industrial applications that require strength, resistance to corrosion, and low weight. Performance, accuracy, and durability are critical factors in the aerospace, chemical processing, maritime, defence, power generation, and medical industries, all of which make extensive use of our titanium plates.
Our titanium plates are suited for both structural and pressure service, and they come in a range of grades, thicknesses, and finishes that satisfy international requirements.
What are Titanium Plates?
Commercially pure or alloyed titanium is used to make titanium plates, which are flat-rolled metal sheets. They are distinguished by their remarkable fatigue and temperature stability, high strength-to-weight ratio, and great resistance to corrosion.
When producing components that need to be chemically resilient, impact resistant, and dimensionally stable, titanium plates are perfect. For biomedical applications, common grades are Grade 2 (CP titanium), Grade 5 (Ti-6Al-4V), Grade 7, and Grade 23 (ELI).
| Products |
|---|
|
Stainless Steel |
|
Carbon Steel |
|
Duplex Stainless Steel |
|
Super Duplex Stainless Steel |
|
Alloy Steel |
|
Titanium |
|
Hastelloy |
|
Inconel |
|
Monel |
|
Aluminium |
|
Copper |
|
Pure Nickel |
|
Flanges |
|
Forged Fittings |
|
Valves |
|
Fasteners |
Key Features
- Extreme Corrosion Resistance: Outstanding performance in settings with acids, chlorides, and seawater.
- Superior Strength-to-Weight Ratio: Relatively strong but up to 45% lighter than steel.
- Outstanding Resistance to Fatigue and Cracks Minimal Thermal Expansion and Non-Magnetic
- Hypoallergenic and Biocompatible: Perfect for Medical Devices
- Temperature Stability: Functions well in settings with high and cryogenic temperatures.
Grades
- Grade 1 and Grade 2 Titanium Plates
- Grade 5 (Ti-6Al-4V) Titanium Plate
- Grade 23 (Ti-6Al-4V ELI) Titanium Plate
- Grade 7 and Grade 9 Titanium Plates
Specification
| Property | Details |
|---|---|
| Product | Titanium Plate |
| Grades Available | Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 |
| Manufacturing Standards | ASTM B265, ASME SB265, AMS 4911, DIN 17860, JIS H 4600 |
| Thickness Range | 3 mm to 150 mm |
| Width Range | 1000 mm to 2500 mm |
| Length Range | 2000 mm to 6000 mm (custom cut-to-size available) |
| Surface Finishes | Hot Rolled, Cold Rolled, Pickled, Annealed, Polished |
| Heat Treatment | Annealed, Solution Treated & Aged |
| Forms Available | Flat Plates, Cut Blanks, Machined Components |
| Testing & Certification | EN 10204 3.1/3.2, NACE MR0175, PMI, UT, IGC, Eddy Current, Third-party approved |
Chemical Composition
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | Balance |
| Aluminum (Al) | 5.5 – 6.75 |
| Vanadium (V) | 3.5 – 4.5 |
| Iron (Fe) | ≤ 0.40 |
| Oxygen (O) | ≤ 0.20 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.05 |
| Hydrogen (H) | ≤ 0.015 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 895 MPa |
| Yield Strength | ≥ 828 MPa |
| Elongation | ≥ 10% |
| Hardness (HRC) | ~36 HRC (~340 HB) |
| Density | 4.43 g/cm³ |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | Grade 2 / Grade 5 / Grade 7 / Grade 23 |
| DIN | 3.7035 (Grade 2), 3.7165 (Grade 5) |
| JIS | TP340, TP340H |
| ISO | TiAl6V4, TiGr2, TiGr23 |
Weight
| Thickness (mm) | Weight per m² (kg) | Weight per 2 m² (kg) | Weight per ft² (kg) |
|---|---|---|---|
| 3.0 | 13.53 | 27.06 | 1.26 |
| 4.0 | 18.04 | 36.08 | 1.68 |
| 5.0 | 22.55 | 45.10 | 2.09 |
| 6.0 | 27.06 | 54.12 | 2.51 |
| 8.0 | 36.08 | 72.16 | 3.35 |
| 10.0 | 45.10 | 90.20 | 4.19 |
| 12.0 | 54.12 | 108.24 | 5.03 |
| 16.0 | 72.16 | 144.32 | 6.70 |
| 20.0 | 90.20 | 180.40 | 8.37 |
| 25.0 | 112.75 | 225.50 | 10.47 |
| 30.0 | 135.30 | 270.60 | 12.57 |
| 40.0 | 180.40 | 360.80 | 16.75 |
| 50.0 | 225.50 | 451.00 | 20.94 |
Applications
- Aerospace & Aviation: Structural panels, engine mounts, shielding
- Chemical Processing: Reactors, autoclaves, linings, tanks
- Shipbuilding & Marine Engineering: Hull reinforcements, pressure bulkheads
- Medical Industry: Surgical tools, orthopedic implants, trauma plates
- Desalination Plants: Brine-resistant structures and tanks
- Defense Systems: Armor plating, missile casings, fuel containment systems
- Power Generation & Nuclear: Reactor casings, condensers, and heat shields
Benefits
- Superior Corrosion Resistance for Chloride & Acidic Environments
- High Fatigue Resistance in Vibrating Systems
- Reduces System Weight Without Compromising Safety
- Extremely Long Lifecycle = Lower Maintenance Costs
- Cleanroom & Biocompatible = Safe for Medical Use
- Sustainable Material = 100% Recyclable
